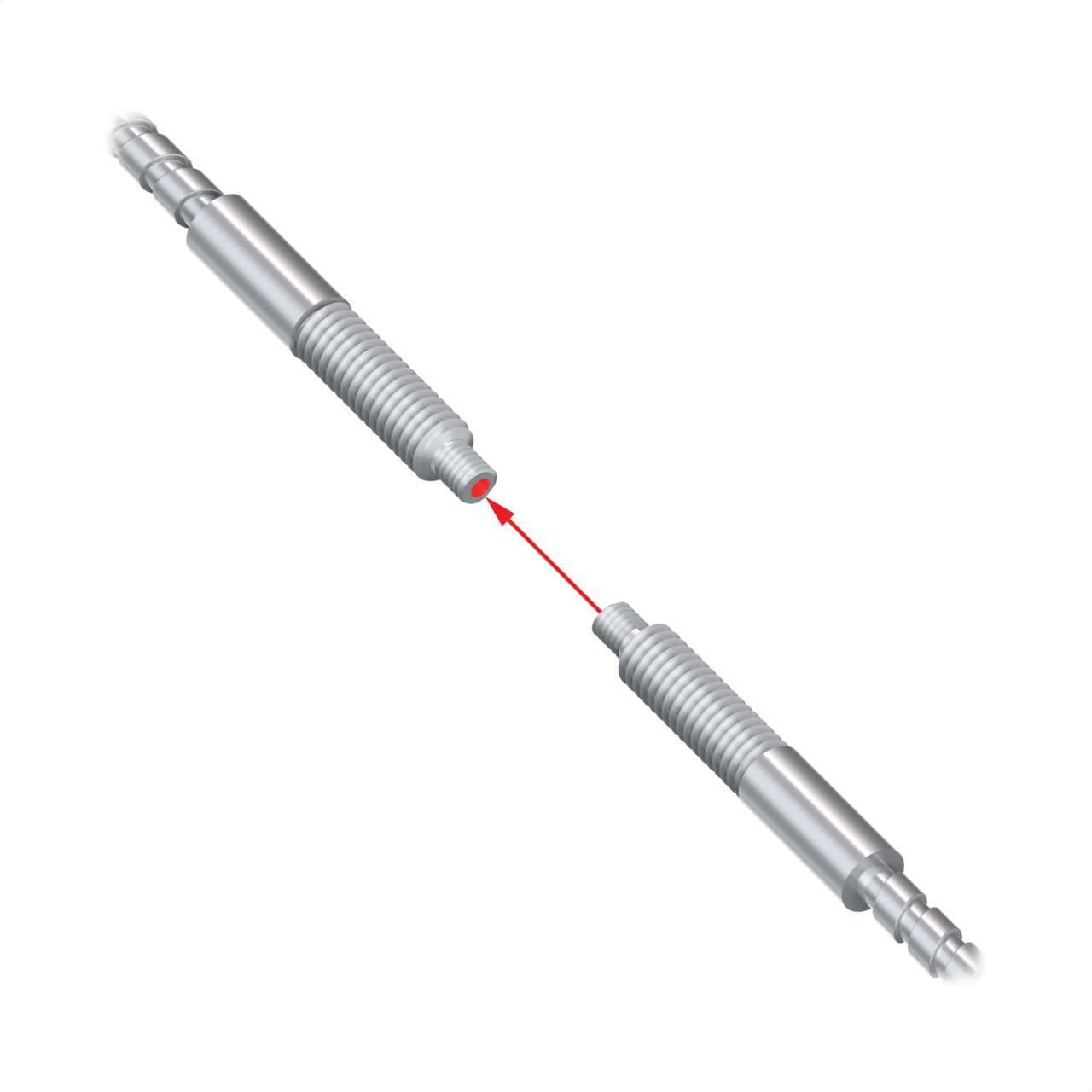

IMT.753SMVF Banner Fiber Optic Sensors

Product Details

• Weight
  54.43104 g
• Country Of Origin
  US
• Fiber Sensing End Size - Mounting Area
  M4
• Max Distance: DF-G1 (mm)
  No Data
• Application: Vacuum Feed Through
  In-Vacuum
• Measured Max Distance (mm)
  No Data
• Max Distance: DF-G2 (mm)
  No Data
• Max Distance: DF-G3 (mm)
  No Data
• Termination Type
  Glass Fiber Sensors
• Tariff Fiber Meters (fbm)
  398.6
• Application: Liquid Level
  No
• Feature: Small Object Detection
  No
• Integrated Lens
  No
• Feature: Extended Range
  No
• Feature: Chemical Resistant
  No
• Max Temp ( °C)
  249
• Core Diameter (mm)
  1.3
• Termination
  Terminated
• Minimum Bend Radius (mm)
  25
• Retractile
  No
Flex Relief
No
Sensing End Segment 1
Thread
Sensing End Segment 2
Thread
Fiber Length (m)
0.914
Fiber Sensing End Size
M2.5
Housing Style
Round
Fiber Sheathing Material (Jacket)
Stainless Steel Monocoil
Sensing Mode (Detailed)
Reflective
Quantity Included
1
Sensing Mode (General)
Opposed
Fiber Optic Type
Glass
Fiber Sensing End Tip
Thread
Sensing End Material (Specific)
Stainless Steel
Beam Exit
In-line
Primary brand
Banner Engineering
Length
3ft / 910mm
Main function
Fiber sensor
Thread size
M4
Order code / Manufacturer SKU
65968
Shape
Cylindrical (threaded) end tip
Sub-range name
Glass fiber series
Functions
Fiber optic sensor
Product series / family name
Fiber sensors
Diameter
1.2mm fiber core
Design
through-beam system / opposed mode Individual fiber
Material
Stainless steel sensing end Glass fiber stainless flexible tubing (fiber sheath)
Ambient air temperature for operation
+249 °C
