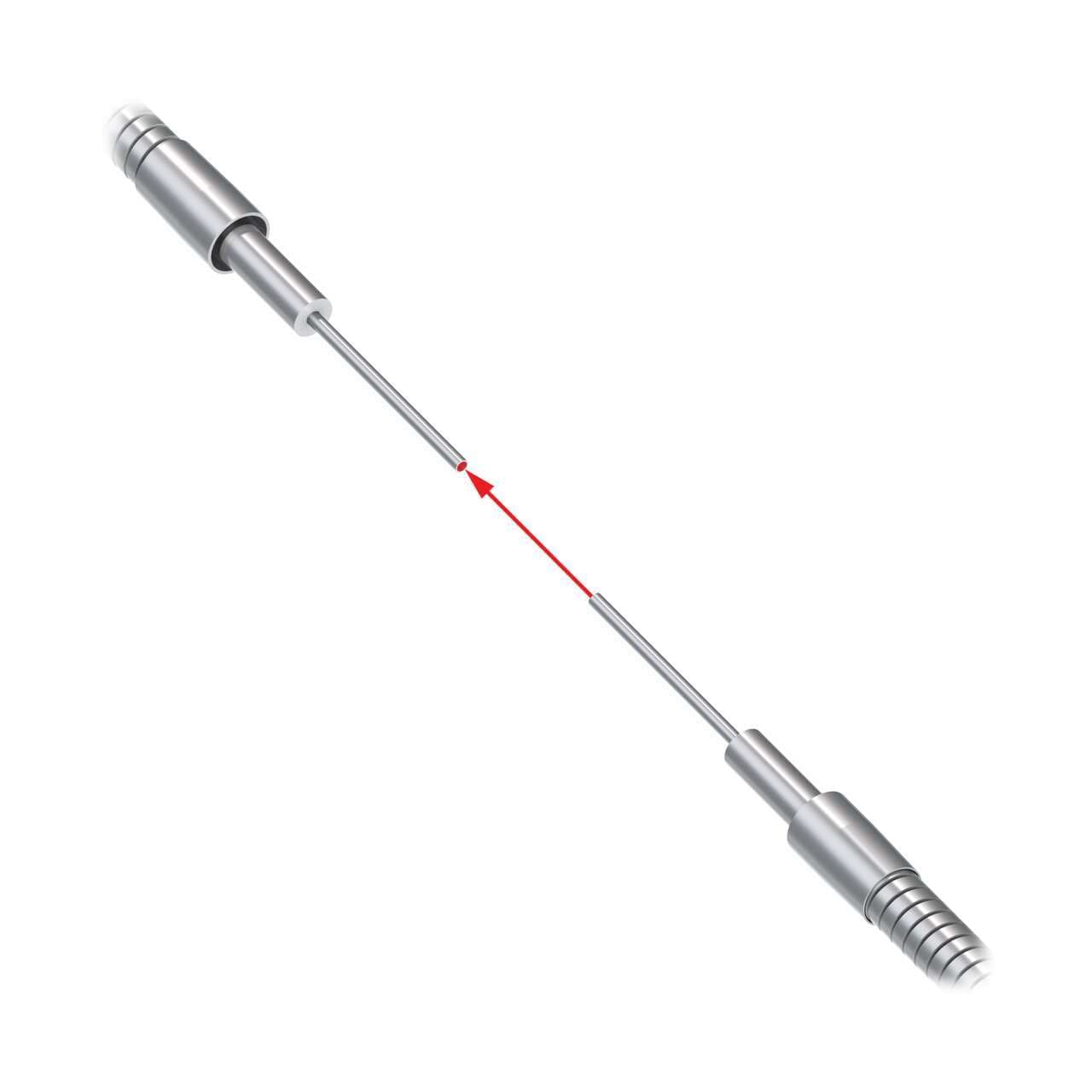

IM.752S Banner Fiber Optic Sensors

Product Details

• Weight
  68.492392 g
• Country Of Origin
  US
• Fiber Sensing End Size - Mounting Area
  4.6 mm
• Max Distance: DF-G2 (mm)
  No Data
• Max Distance: DF-G1 (mm)
  No Data
• Max Distance: DF-G3 (mm)
  No Data
• Measured Max Distance (mm)
  No Data
• Termination Type
  Glass Fiber Sensors
• Tariff Fiber Meters (fbm)
  267
• Application: Vacuum Feed Through
  None
• Application: Liquid Level
  No
• Feature: Small Object Detection
  No
• Feature: Extended Range
  No
• Feature: Chemical Resistant
  No
• Max Temp ( °C)
  249
• Integrated Lens
  No
• Termination
  Terminated
• Minimum Bend Radius (mm)
  25
• Sensing End Segment 2
  Probe
• Flex Relief
  No
Core Diameter (mm)
1.2
Retractile
No
Fiber Length (m)
0.609
Sensing End Segment 1
Ferrule
Fiber Sensing End Size
1.5 mm
Housing Style
Round
Fiber Sheathing Material (Jacket)
Stainless Steel Monocoil
Fiber Optic Type
Glass
Fiber Sensing End Tip
Probe
Sensing End Material (Specific)
Stainless Steel
Beam Exit
In-line
Sensing Mode (General)
Opposed
Sensing Mode (Detailed)
Reflective
Quantity Included
1
Main function
Fiber sensor
Sub-range name
Glass fiber series
Shape
Cylindrical (smooth) probe tip
Material
Stainless steel sensing end Glass fiber stainless flexible tubing (fiber sheath)
Diameter
1.5mm (end) 1.2mm fiber core
Order code / Manufacturer SKU
17325
Functions
Fiber optic sensor
Product series / family name
Fiber sensors
Primary brand
Banner Engineering
Length
2ft / 610mm
Design
through-beam system / opposed mode Individual fiber
Ambient air temperature for operation
+249 °C
