IAT23S Banner Fiber Optic Sensors

IAT23S on Powermatic Associates
Banner
  • IAT23S
  • IAT23S

Part#:IAT23S

Alt. Part#:17307

Manufacturer:Banner

Category:Fiber Optic Sensors

Product Lifecycle:Active

Product description

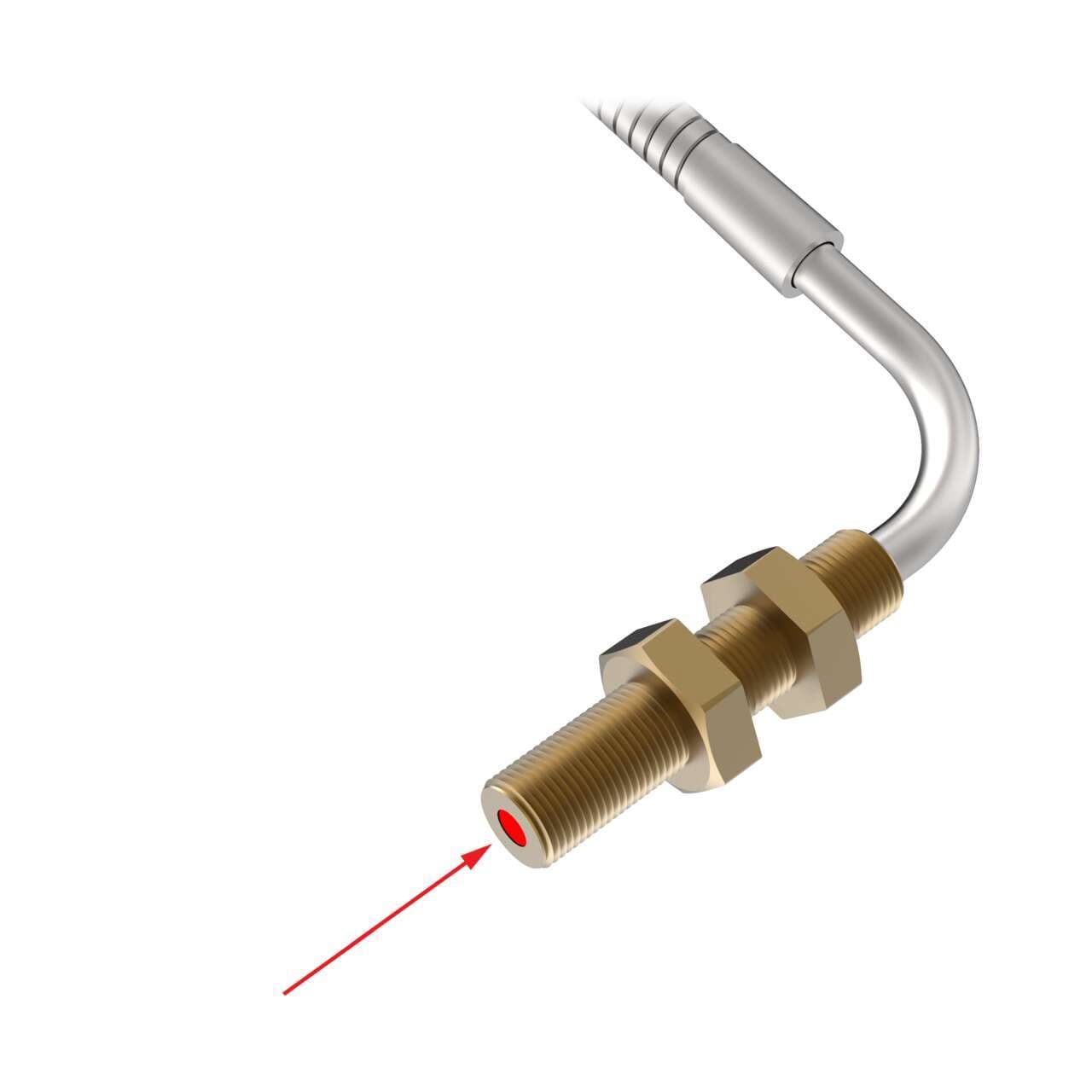

Opposed Mode Individual Glass Fiber 36 long; 0.125 dia. Bundle; Stainless Steel Sheath; Right angle threaded sensing tip

Product Details

  • Weight
    117.480328 g
  • Country Of Origin
    US
  • Max Distance: DF-G2 (mm)
    No Data
  • Max Distance: DF-G1 (mm)
    No Data
  • Max Distance: DF-G3 (mm)
    No Data
  • Feature: Extended Range
    No
  • Measured Max Distance (mm)
    No Data
  • Application: Vacuum Feed Through
    None
  • Feature: Chemical Resistant
    No
  • Feature: Small Object Detection
    No
  • Fiber Length (m)
    0.914
  • Fiber Sensing End Size
    #5/16-24 thread
  • Fiber Sensing End Size - Mounting Area
    #5/16-24 thread
  • Tariff Fiber Meters (fbm)
    3110.34
  • Application: Liquid Level
    No
  • Max Temp ( °C)
    249
  • Integrated Lens
    No
  • Flex Relief
    No
  • Fiber Sensing End Tip
    Thread
  • Fiber Optic Type
    Glass
  • Termination Type
    Glass Fiber Sensors
  • Termination
    Terminated
  • Minimum Bend Radius (mm)
    25
  • Core Diameter (mm)
    3.2
  • Retractile
    No
  • Sensing End Segment 2
    Thread
  • Sensing End Segment 1
    Angle
  • Sensing End Material (Specific)
    Brass
  • Quantity Included
    1
  • Fiber Sheathing Material (Jacket)
    Stainless Steel Monocoil
  • Sensing Mode (General)
    Opposed
  • Sensing Mode (Detailed)
    Reflective
  • Beam Exit
    Right Angle
  • Housing Style
    Round

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of IAT23S on Powermatic Associates is $146.00. Order now.

About the product

Banner Engineering IAT23S is a fiber sensor belonging to the Glass fiber series, designed with a through-beam system / opposed mode flexible fiber individual fiber side / right-angled sensing. This sensor features a cylindrical (threaded) end tip made of brass, with the sensing element composed of glass fiber and a stainless flexible tubing fiber sheath for protection. The fiber core has a diameter of 3.2mm, and the total length of the sensor is 3ft / 910mm. It is built to operate in ambient air temperatures up to +249°C.

IAT23S Related Documents

IAT2 SERIES SS TERMINATED-1630955006569.stpIAT2 SERIES SS TERMINATED-1630955006560.pdf
