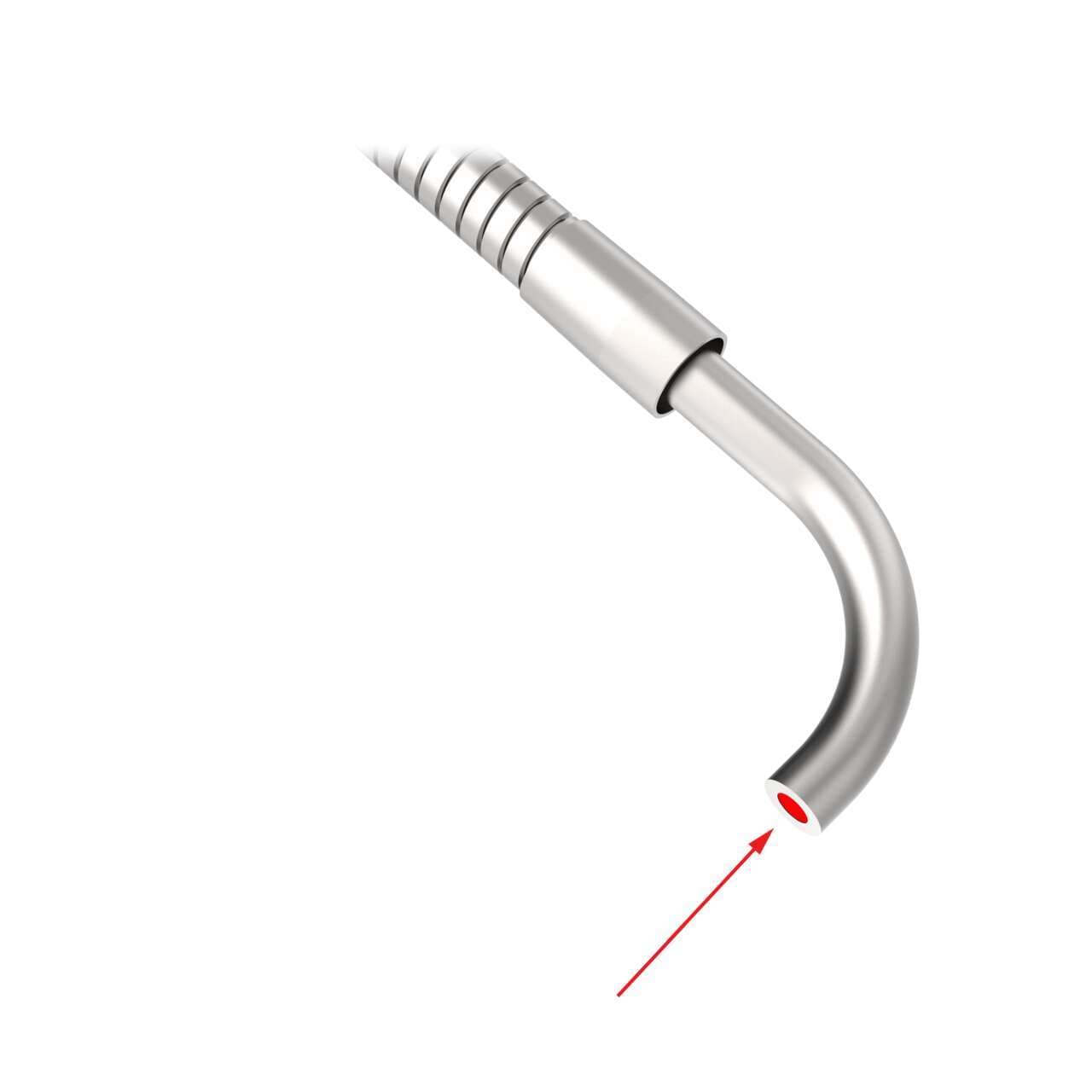

IA23S Banner Fiber Optic Sensors

Product Details

• Weight
  103.872568 g
• Country Of Origin
  US
• Application: Vacuum Feed Through
  None
• Application: Liquid Level
  No
• Termination Type
  Glass Fiber Sensors
• Tariff Fiber Meters (fbm)
  3110.34
• Measured Max Distance (mm)
  No Data
• Feature: Small Object Detection
  No
• Feature: Chemical Resistant
  No
• Core Diameter (mm)
  3.2
• Fiber Sensing End Size - Mounting Area
  4.8 mm
• Integrated Lens
  No
• Termination
  Terminated
• Fiber Sensing End Size
  4.8 mm
• Retractile
  No
• Sensing Mode (General)
  Opposed
• Beam Exit
  Right Angle
• Housing Style
  Round
• Max Distance: DF-G1 (mm)
  No Data
• Max Distance: DF-G2 (mm)
  No Data
Max Distance: DF-G3 (mm)
No Data
Feature: Extended Range
No
Max Temp ( °C)
249
Sensing End Segment 1
Angle
Flex Relief
No
Minimum Bend Radius (mm)
25
Sensing End Material (Specific)
Stainless Steel
Fiber Length (m)
0.914
Fiber Optic Type
Glass
Fiber Sensing End Tip
Angle
Fiber Sheathing Material (Jacket)
Stainless Steel Monocoil
Sensing Mode (Detailed)
Reflective
Quantity Included
1
Product series / family name
Fiber sensors
Design
through-beam system / opposed mode Individual fiber
Main function
Fiber sensor
Length
3ft / 910mm
Sub-range name
Glass fiber series
Diameter
4.75mm end size 3.2mm fiber core
Primary brand
Banner Engineering
Functions
Fiber optic sensor
Material
Stainless steel sensing end Glass fiber stainless flexible tubing (fiber sheath)
Ambient air temperature for operation
+249 °C
Order code / Manufacturer SKU
17299
