FIC-M8F3A Banner Field Wireable Connectors

Name: FIC-M8F3A
Brand: Banner
Price: 23 USD
Availability: BackOrder

Part#:FIC-M8F3A

Alt. Part#:58905

Manufacturer:Banner

Category:Field Wireable Connectors

Product Lifecycle:Active

Product description

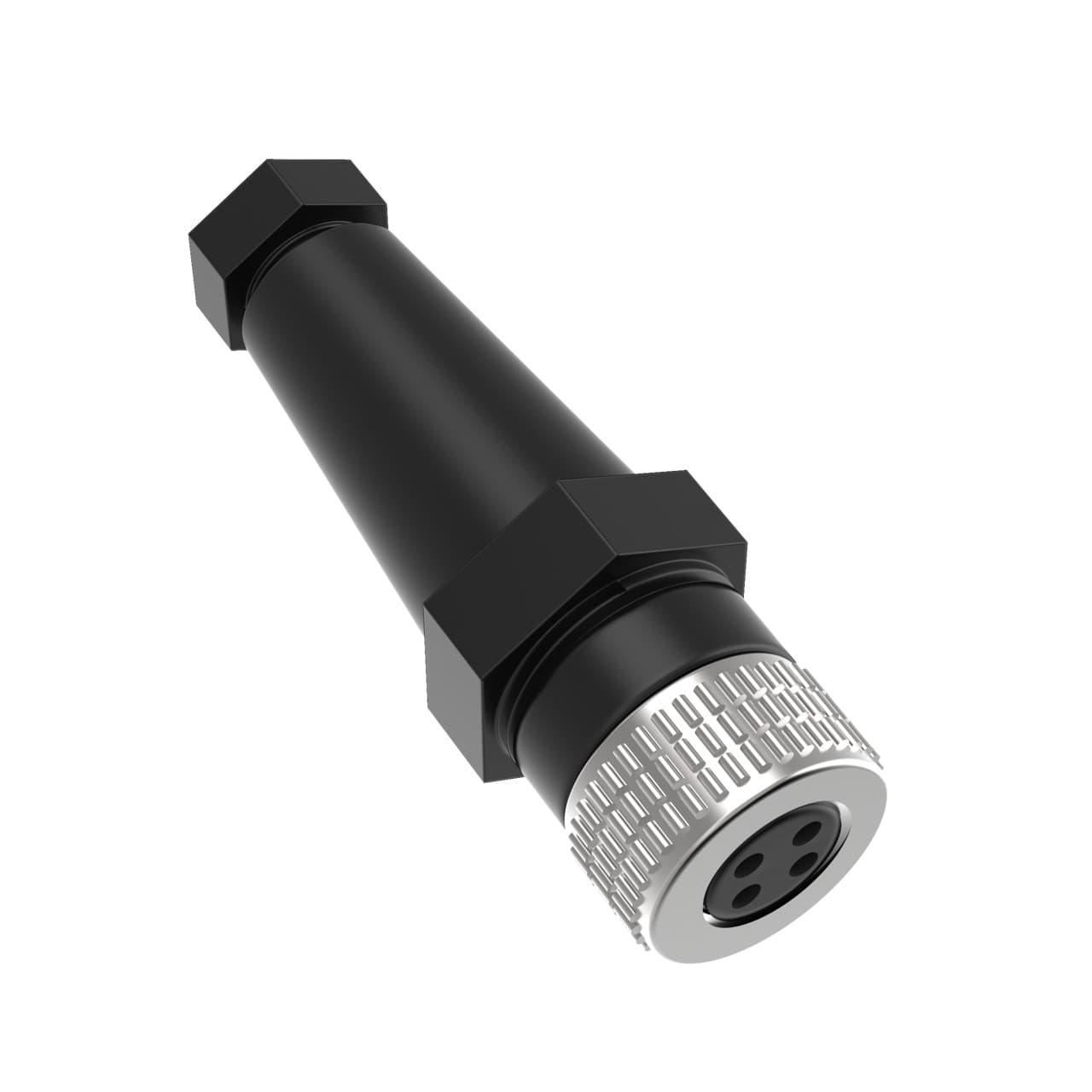

Field Wireable Female M8; 3-pin, Non-Shielded, IP67; Plastic, Straight Connector; 90 Degree Angled Field Adapter

Product Details

Weight
10.7954896 g
Country Of Origin
HU
Feature: Hazardous Area
No
Oil/Grease Resistant
No
Primary Number of Conductors
3
Secondary Connector Type
Flying Leads
Primary Gender
Female
Primary Orientation
Right Angle
Primary Coupling Method
M8 Thread
Primary Connector Type
PICO
Minimum Temp. (°C)
-25
IP Rating
IP67
Voltage Rating (V)
60 V ac/dc
Maximum Temp. (°C)
70
Trunk Length (m)
No Trunk
Current Rating (A)
4.0
Max Cable Diameter
5
Shield/No Shield
No Shield
Min Cable Diameter
4
Coupling Material/Color
Zinc Aluminum Nickel

Number of Connectors

Connector Body Material/Color

Plastic

Number of Contacts

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of FIC-M8F3A on Powermatic Associates is $23.00. Order now.

About the product

Banner Engineering FIC-M8F3A is a field-wireable connector featuring a 3-pin Pico-style M8 female 90° angled connector. This part is designed for quick and secure connections in various automation applications.
