Part#:DX80SR9M-H

Alt. Part#:44053

Manufacturer:Banner

Category:Network Gateways

Product Lifecycle:Active

Product description

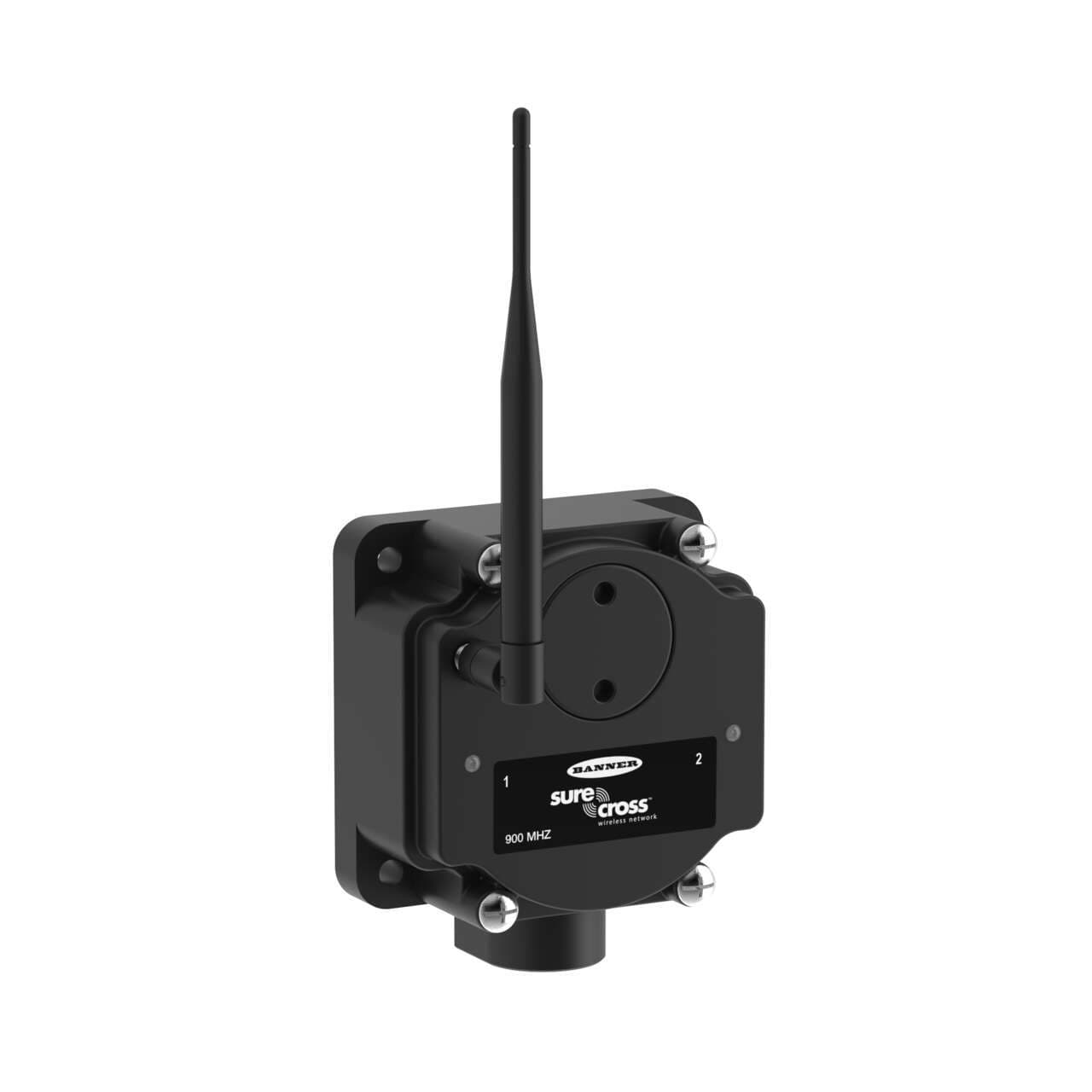

Serial Data Radio Multihop 900 MHz 1 W; External Antenna; No Inputs or Outputs; 4-Position Terminal

Product Details

  • Weight
    385.5532 g
  • Country Of Origin
    US
  • Star Topology
    Yes
  • RS-232
    Yes
  • Wireless
    Yes
  • 1-wire Serial Interface
    No
  • Wireless Radio Frequency
    900 MHz
  • RS-485
    Yes
  • Modbus/TCP
    No
  • PROFINET
    No
  • EtherNet/IP
    No
  • Modbus RTU
    Yes
  • Tree Topology
    Yes
  • Feature: Hazardous Area
    Yes
  • Relative Humidity
    95%
  • Point-to-Point Topology
    Yes
  • Min Operating Temperature ( °C)
    -40
  • Point-to-Multipoint Topology
    Yes
  • Max Operating Temperature ( °C)
    85
  • Min Temp Operating Conditions
    -40
  • Hazardous/Intrinsically Safe Classification
    Class I, Division 2/Zone 2; ATEX Zone 2
  • Max Temp Operating Conditions
    85
  • Environmental Rating (NEMA)
    NEMA 6
  • Device Type
    Multihop Data Radio
  • Housing Style
    Enclosed Terminals
  • Power
    DC
  • Power Supply
    10-30 V dc
  • Input Details
    Serial
  • Output Details
    Serial
  • Environmental Rating (IP)
    IP67

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of DX80SR9M-H on Powermatic Associates is $499.00. Order now.

About the product

Banner Engineering DX80SR9M-H is a gateway designed for surface mounting with a polycarbonate housing, polycarbonate rotary dial cover, polyester labels, EDPM rubber cover gasket, and nitrile rubber. It operates within an ambient air temperature range of -40 to +85°C and offers a degree of protection rated at IP67 NEMA 6. The dimensions of this rectangular-shaped gateway are H41.3mm x W80.14mm x D80.14mm. It features a visual position indicator with red/green LED for radio status and utilizes a transmission frequency of 900 MHz. This part of the Serial data radios sub-range is designed with 2 x bi-color LEDs for North America and incorporates FHSS (Frequency Hopping Spread Spectrum) technology. It includes screw connections and an RP-SMA connector for connectivity, requires a supply voltage of 10-30Vdc (12Vdc-24Vdc nom.), and supports communication protocols such as RS-485, RS-232, and Modbus RTU. The frequency is set within the 900MHz ISM band at 1W, capable of achieving a maximum transmission distance of 9.6km at nominal emission power.
