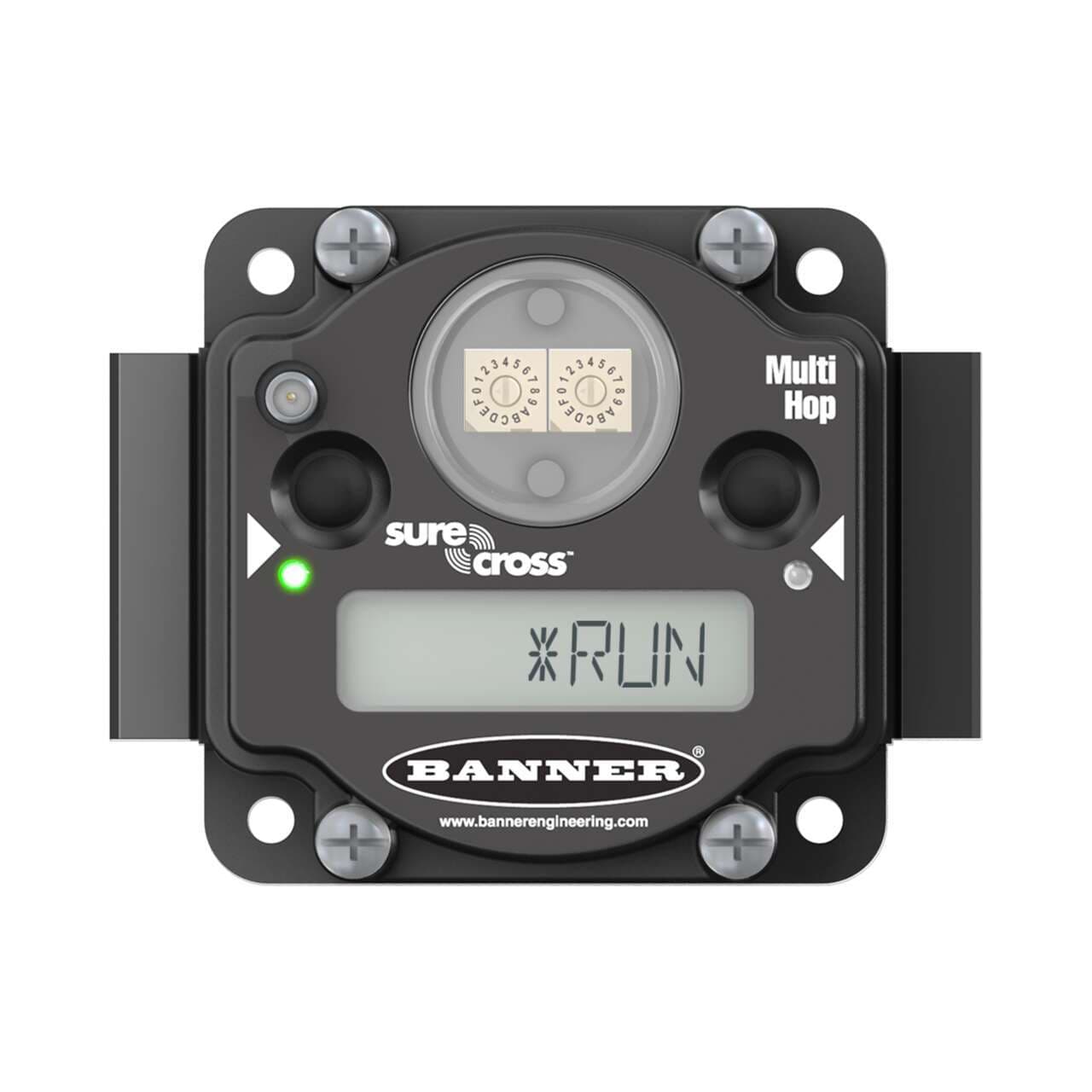

DX80DR9M-H2C Banner Network Gateways

DX80DR9M-H2C on Powermatic Associates
Banner
  • DX80DR9M-H2C
  • DX80DR9M-H2C

Part#:DX80DR9M-H2C

Alt. Part#:16763

Manufacturer:Banner

Category:Network Gateways

Product Lifecycle:Active

Product description

MultiHop 900 MHz 1 W IP20; 10-30 V dc External Antenna RS485; Inputs: 4 Discrete 2 Analog; Outputs: 4 Discrete 2 Analog; External Terminals

Product Details

  • Weight
    281.22704 g
  • Country Of Origin
    US
  • 1-wire Serial Interface
    No
  • RS-485
    Yes
  • EtherNet/IP
    No
  • Wireless Radio Frequency
    900 MHz
  • RS-232
    No
  • Wireless
    Yes
  • Tree Topology
    Yes
  • PROFINET
    No
  • Star Topology
    Yes
  • Modbus/TCP
    No
  • Modbus RTU
    Yes
  • Feature: Hazardous Area
    Yes
  • Point-to-Point Topology
    Yes
  • Valve Control
    Yes
  • Point-to-Multipoint Topology
    Yes
  • Min Temp Operating Conditions
    -20
  • LCD Display
    Yes
  • Relative Humidity
    95%
  • Min Operating Temperature ( °C)
    -20
  • Max Operating Temperature ( °C)
    80
  • Hazardous/Intrinsically Safe Classification
    Class I, Division 2/Zone 2; ATEX Zone 2
  • Max Temp Operating Conditions
    80
  • Environmental Rating (NEMA)
    NEMA 1
  • Output Details
    4 Sourcing Discrete, 2 0-20mA Analog
  • Environmental Rating (IP)
    IP20
  • Power Supply
    10-30 V dc
  • Analog Outputs
    Yes
  • Discrete Inputs
    Yes
  • Discrete Outputs
    Yes
  • Housing Style
    External Terminals
  • Input Details
    4 Discrete, 2 0-20 mA Analog
  • Analog Inputs
    Yes
  • Device Type
    Multihop Data Radio
  • Input/Output
    Analog & Discrete
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of DX80DR9M-H2C on Powermatic Associates is $699.00. Order now.


About the product

Banner Engineering DX80DR9M-H2C is a Gateway designed for surface mounting with a polycarbonate housing, polycarbonate rotary dial cover, polyester labels, EDPM rubber cover gasket, and nitrile rubber. It operates within an ambient air temperature range of -40 to +85°C and offers 2 analog outputs (0-20mA), protected to IP20 and NEMA 1 standards. The dimensions of this rectangular-shaped device are H44.5mm x W103.3mm x D80.1mm. It features 4 digital outputs (30Vdc; PNP; 100mA) and 2 analog inputs (0-20mA), with a transmission frequency of 900 MHz. The DX80DR9M-H2C includes 4 digital inputs (30Vdc 3mA; PNP) and is equipped for MultiHop data radio functions within the MultiHop Modbus IO data radios sub-range. Its design incorporates 2 buttons, 2 bi-color LEDs for Ex e II applications, and utilizes FHSS (Frequency Hopping Spread Spectrum) technology. Connection is facilitated through detachable screw-clamp connectors and an RP-SMA connector, requiring a supply voltage of 10-30Vdc (12Vdc-24Vdc nom.). It supports RS-485 Modbus TCP communication protocol, operates on a 900MHz ISM band 1W frequency, and can achieve a maximum transmission distance of 9.6km at nominal emission power.
