DX80DR9M-H1E Banner Network Gateways

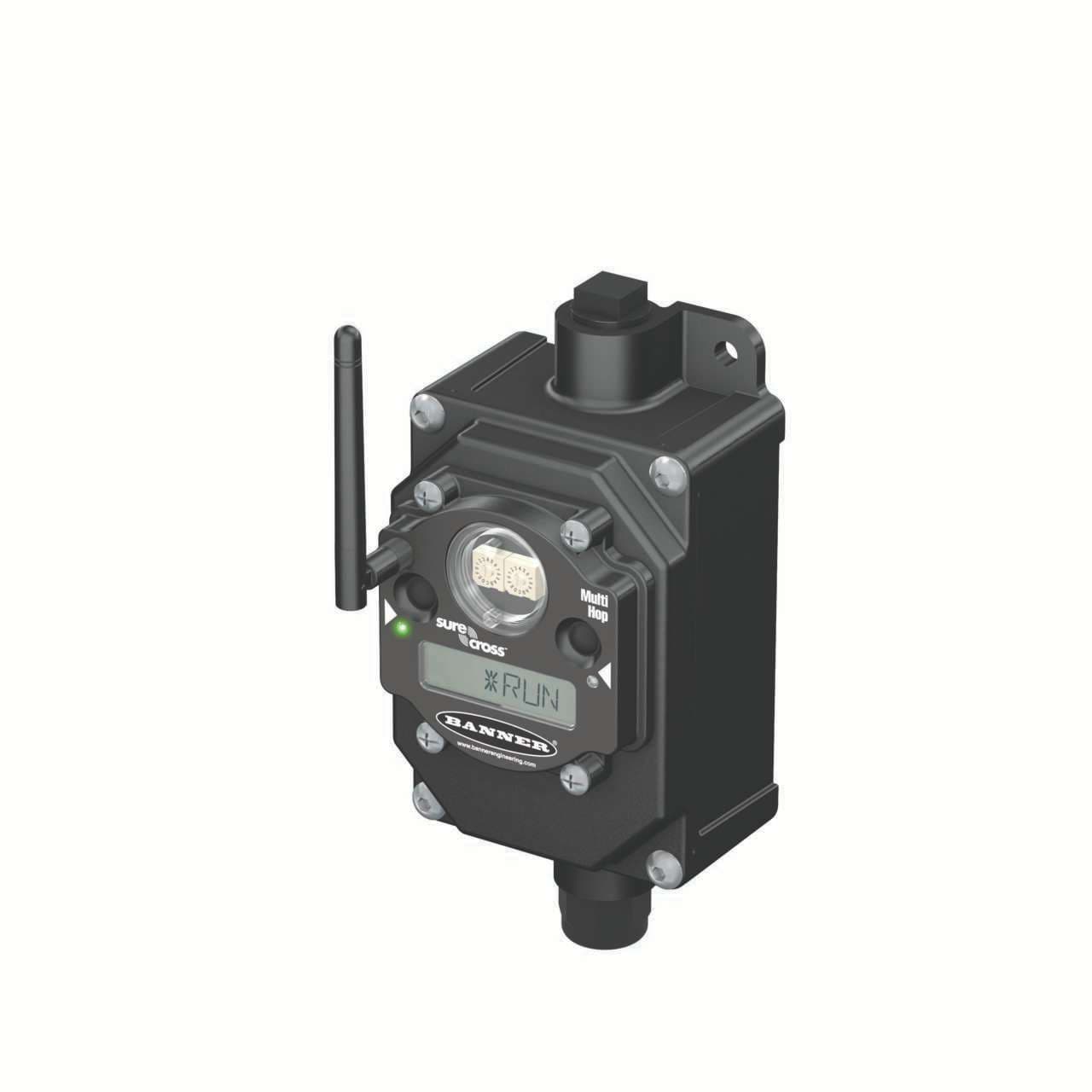

Banner Engineering DX80DR9M-H1E is a Gateway designed for surface mounting with a polycarbonate housing, polycarbonate rotary dial cover, polyester labels, EDPM rubber cover gasket, and nitrile rubber. It operates within an ambient air temperature range of -40 to +85°C and offers a degree of protection rated at IP65 and NEMA 4X. The dimensions of this rectangular-shaped gateway are H81.3mm x W155.2mm x D87.6mm. It features 2 digital outputs (30Vdc; NMOS; 1A), 2 analog inputs (0-20mA), 1 analog input (Thermistor 10kΩ), 4 digital inputs (30Vdc 3mA; Sink), and 1 digital input (25kHz counter). The DX80DR9M-H1E operates on a 900 MHz transmission frequency, is part of the MultiHop Modbus IO data radios sub-range, and incorporates FHSS (Frequency Hopping Spread Spectrum) technology. Its design includes 2 buttons, 2 bi-color LEDs for Ex e II applications, an environmental housing with an internal battery, a wiring chamber with screw-clamp connections, 2 x 1/2" NPT threaded cable accesses, and an RP-SMA connector. The supply voltage requirement is 10-30Vdc (12Vdc-24Vdc nom.), and it uses the RS-485 Modbus RTU communication protocol. The frequency is set at the 900MHz ISM band 1W, supporting a maximum transmission distance of 9.6km at nominal emission power.
