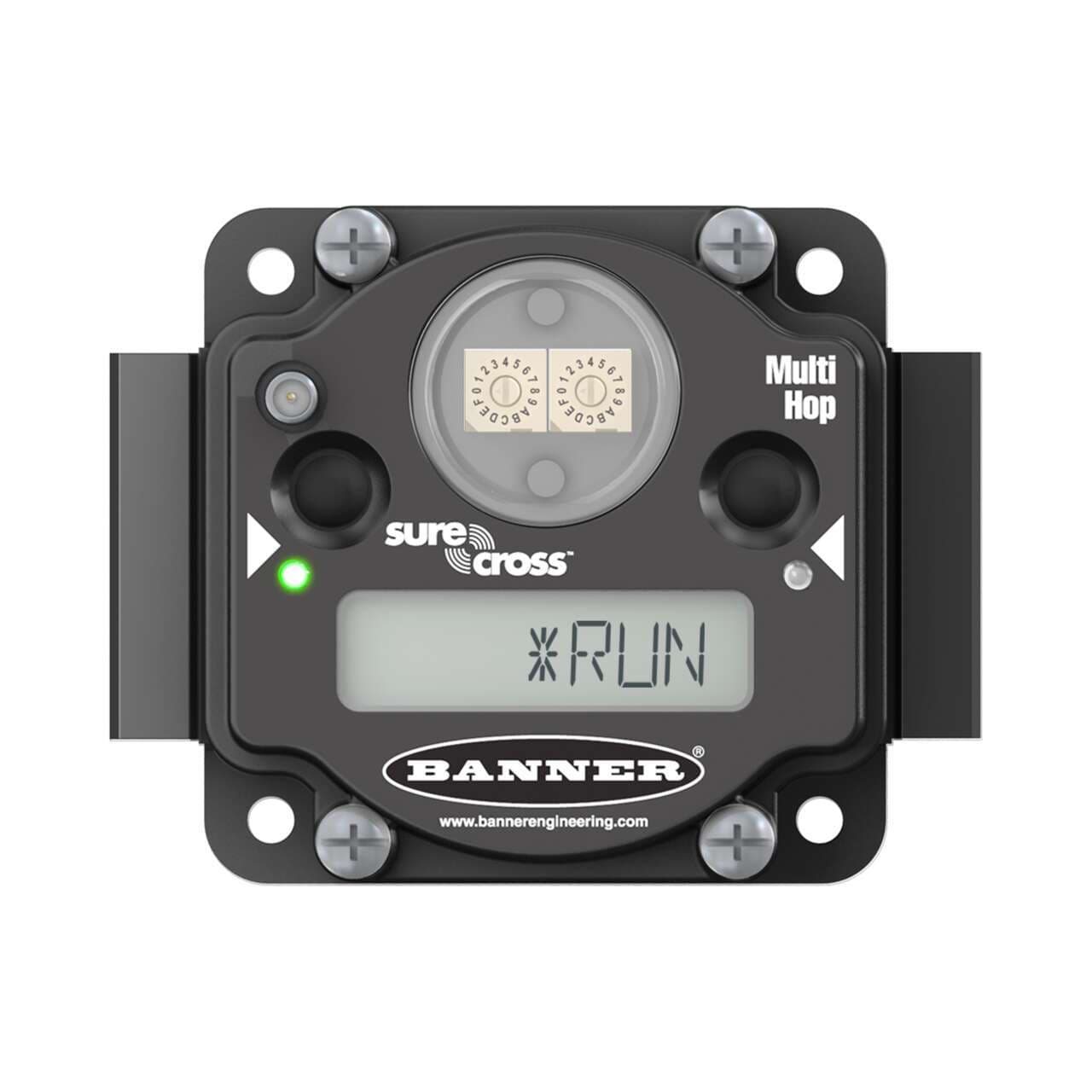

DX80DR9M-H1C Banner Network Gateways

DX80DR9M-H1C on Powermatic Associates
Banner

Part#:DX80DR9M-H1C

Manufacturer:Banner

Alt. Part#:18492

Product Lifecycle:Active

Get a quick Quote!

MultiHop 900 MHz 1 W IP20; FlexPower External Antenna RS485; Inputs: 4 Discrete 2 Analog 1 Thermistor 1 Counter; Outputs: 2 Discrete; External Terminals

About the manufacturer: Banner is one of the manufacturers that offers Network Gateways that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the DX80DR9M-H1C Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    453.592 g
  • Country Of Origin
    US
  • 1-wire Serial Interface
    No
  • Wireless Radio Frequency
    900 MHz
  • Wireless
    Yes
  • RS-485
    Yes
  • RS-232
    No
  • Modbus/TCP
    No
  • PROFINET
    No
  • Modbus RTU
    Yes
  • EtherNet/IP
    No
  • Application: Temperature Input
    Yes
  • Application: Object Counting
    Yes
  • Feature: Hazardous Area
    Yes
  • Tree Topology
    Yes
  • Point-to-Multipoint Topology
    Yes
  • Star Topology
    Yes
  • Relative Humidity
    95%
  • Min Operating Temperature ( °C)
    -20
  • Point-to-Point Topology
    Yes
  • Ships With Battery
    No
  • Min Temp Operating Conditions
    -20
  • Max Operating Temperature ( °C)
    80
  • LCD Display
    Yes
  • Hazardous/Intrinsically Safe Classification
    Class I, Division 2/Zone 2; ATEX Zone 2
  • Max Temp Operating Conditions
    80
  • Environmental Rating (IP)
    IP20
  • Environmental Rating (NEMA)
    NEMA 1
  • Power Supply
    10-30 V dc
  • Input Details
    4 Discrete, 2 0-20 mA, 1 Thermistor, 1 counter
  • Discrete Outputs
    Yes
  • Power
    DC
  • Input/Output
    Analog & Discrete
  • Housing Style
    External Terminals
  • Device Type
    Multihop Data Radio
  • Output Details
    2 NMOS Discrete
  • Discrete Inputs
    Yes
  • Analog Inputs
    Yes

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

DX80DR9M-H1C Description

Banner Engineering DX80DR9M-H1C is a Gateway designed for surface mounting with a polycarbonate housing, polycarbonate rotary dial cover, polyester labels, EDPM rubber cover gasket, and nitrile rubber. It operates within an ambient air temperature range of -40 to +85°C and offers a degree of protection rated at IP20 and NEMA 1. The dimensions of this rectangular-shaped gateway are H59.8mm x W126.7mm x D117.4mm. It features 2 digital outputs (30Vdc; NMOS; 1A), 2 analog inputs (0-20mA), 1 analog input (Thermistor 10kΩ), and 4 digital inputs (30Vdc 3mA; Sink) plus 1 digital input (25kHz counter). This product is part of the MultiHop Modbus IO data radios sub-range and incorporates MultiHop flexpower data radio functionality. It is designed with 2 buttons, 2 bi-color LEDs for Ex e II applications, and utilizes FHSS (Frequency Hopping Spread Spectrum) technology. Connection is facilitated through detachable screw-clamp connectors and an RP-SMA connector. The supply voltage requirement is 10-30Vdc (12Vdc-24Vdc nom.), and it supports RS-485 Modbus RTU communication protocol. Operating on a 900MHz ISM band with 1W power, it can achieve a maximum transmission distance of 9.6km at nominal emission power.

Related documents DX80DR9M-H1C Specs

DX80DR9M-H1C 148947.pdf
