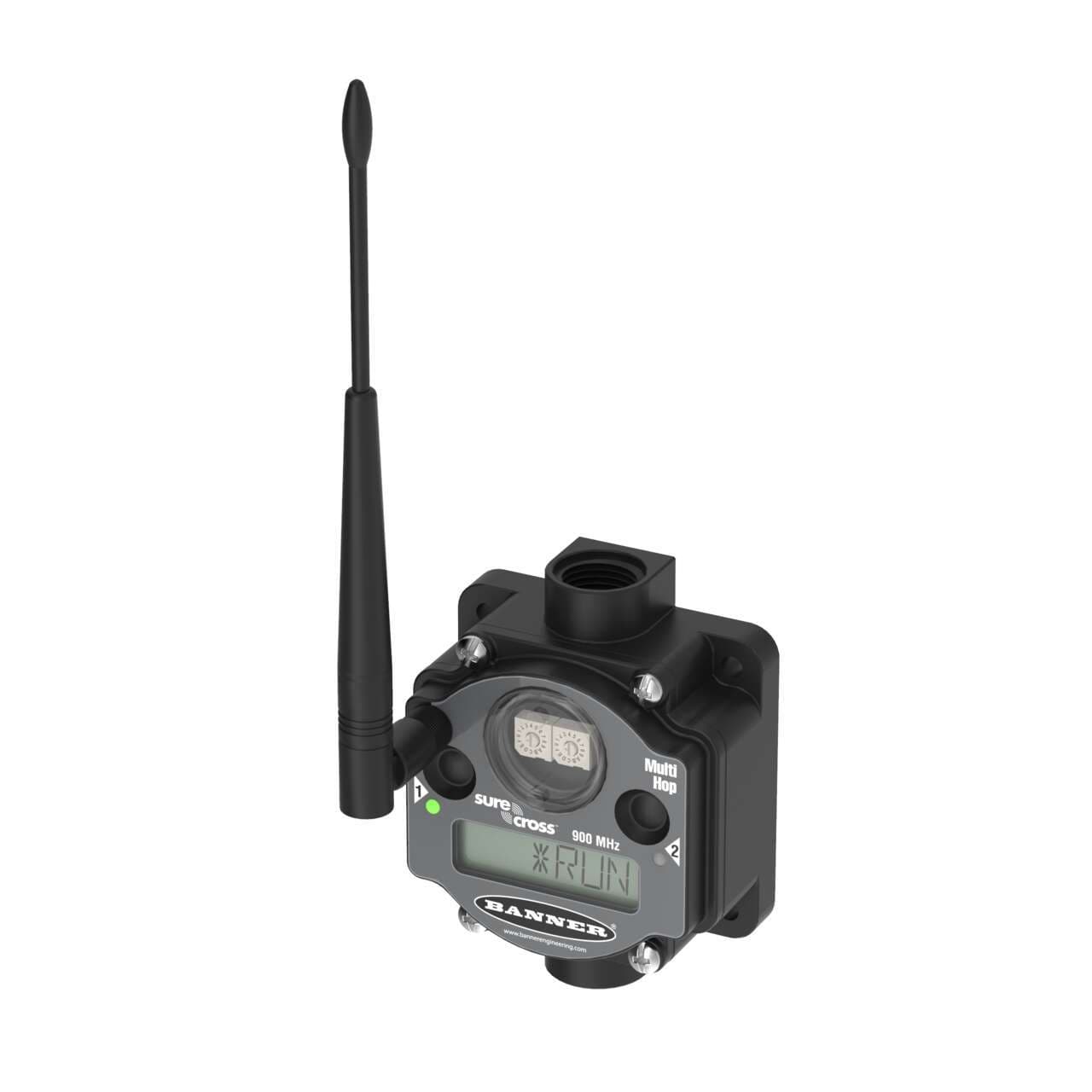

DX80DR9M-H14 Banner Network Gateways

Name: DX80DR9M-H14
Brand: Banner
Price: 599 USD
Availability: BackOrder

Part#:DX80DR9M-H14

Manufacturer:Banner

Alt. Part#:800200

Product Lifecycle:Active

Get a quick Quote!

MultiHop Internal Battery; 900 MHz 1 W/250 mW; 1 Configurable Digital Input; 1 Analog Voltage Input (configurable to Current); 1 Thermistor Input; 1 Switch Power Output; 1 Asynchronous Counter; SDI-12; Gland Bottom; Vent Plug Top

About the manufacturer: Banner is one of the manufacturers that offers Network Gateways that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the DX80DR9M-H14 Banner price in the box on the right side or send a quick quote.

Product Details

Weight
566.99 g
Country Of Origin
US
Application: Soil Moisture Monitoring
Yes
1-wire Serial Interface
No
Wireless Radio Frequency
900 MHz
RS-232
No
Modbus RTU
Yes
PROFINET
No
Wireless
Yes
Feature: Hazardous Area
No
Application: Temperature Input
Yes
EtherNet/IP
No
Application: Object Counting
Yes
Modbus/TCP
No
Tree Topology
Yes
Star Topology
Yes
Point-to-Multipoint Topology
Yes
Point-to-Point Topology
Yes
Relative Humidity
95%
Min Operating Temperature ( °C)
-40

Ships With Battery

Yes

Max Operating Temperature ( °C)

Min Temp Operating Conditions

-40

LCD Display

Yes

Max Temp Operating Conditions

Environmental Rating (IP)

IP67

Environmental Rating (NEMA)

NEMA 6

Input Details

Configurable discrete, configurable analog, thermistor, asynchronous counter, SDI-12

Power Supply

D Cell Lithium Battery

Output Details

Switch Power

Discrete Inputs

Yes

Input/Output

Analog & Discrete

Analog Inputs

Yes

Device Type

Multihop Data Radio

Housing Style

Integrated Battery

Power

Battery

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

DX80DR9M-H14 Description

Banner Engineering DX80DR9M-H14 is a Gateway designed for surface mounting with a polycarbonate housing, polycarbonate rotary dial cover, polyester labels, EDPM rubber cover gasket, and nitrile rubber. It operates within an ambient air temperature range of -40 to +85°C and offers a degree of protection rated at IP67 and NEMA 6. The dimensions of this rectangular-shaped gateway are H62.6mm x W106.7mm x D80.1mm. It features 1 x analog input (0-20mA / 0-10Vdc), 1 x analog input (Thermistor 10kΩ), 1 x digital input (30Vdc 3mA; NPN), and 1 x digital input (10kHz counter). The DX80DR9M-H14 operates on a 900 MHz transmission frequency with a maximum transmission distance of 9.6km at nominal emission power. It is part of the MultiHop Modbus IO data radios sub-range and incorporates SDI-12 data collection, 2 x buttons, 2 x bi-color LEDs, and utilizes FHSS (Frequency Hopping Spread Spectrum) technology. Connection is facilitated through a wiring chamber with screw-clamp connections and 2 x 1/2" NPT threaded cable accesses alongside an RP-SMA connector. It requires a supply voltage of 3.6Vdc (internal battery) and communicates via the Modbus TCP protocol on a frequency of 900MHz ISM band 1W.

$599.00

Request a quote, and we will send availability within minutes.

Select Qty:

$599.00

$599.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
