DX80DR2M-HB1-31596 Banner Network Gateways

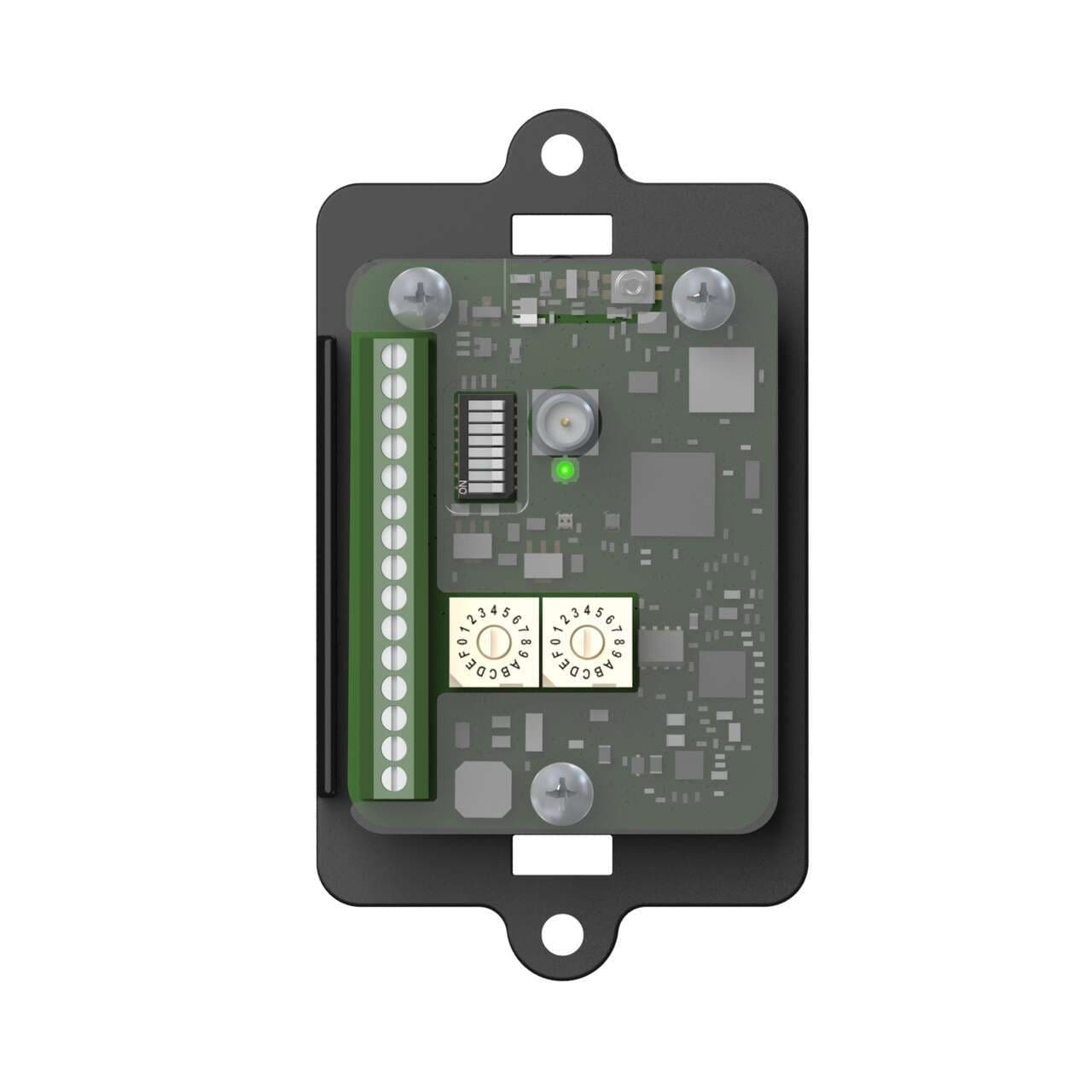

Banner Engineering DX80DR2M-HB1-31596 is a Gateway designed for surface mounting with an operational ambient air temperature range of -40 to +85°C. It measures H26.8mm x W94mm x D53mm and features 2 digital outputs (30Vdc; NMOS; 1A), 2 analog inputs (0-20mA; 12-bit), and 2 digital inputs (30Vdc; NPN). This part operates on a transmission frequency of 2400 MHz and has a rectangular shape. It is a MultiHop flexpower data radio board module within the MultiHop Modbus IO data radios sub-range, equipped with a red/green LED for Ex e II applications and utilizes FHSS (Frequency Hopping Spread Spectrum) technology. The connection type is an RP-SMA connector, and it requires a supply voltage of 10-30Vdc (12Vdc-24Vdc nom.). The communication protocol supported is RS-485 Modbus RTU, operating on a frequency of 2.4GHz ISM band 65mW, capable of a maximum transmission distance of 3.2km at nominal emission power.
