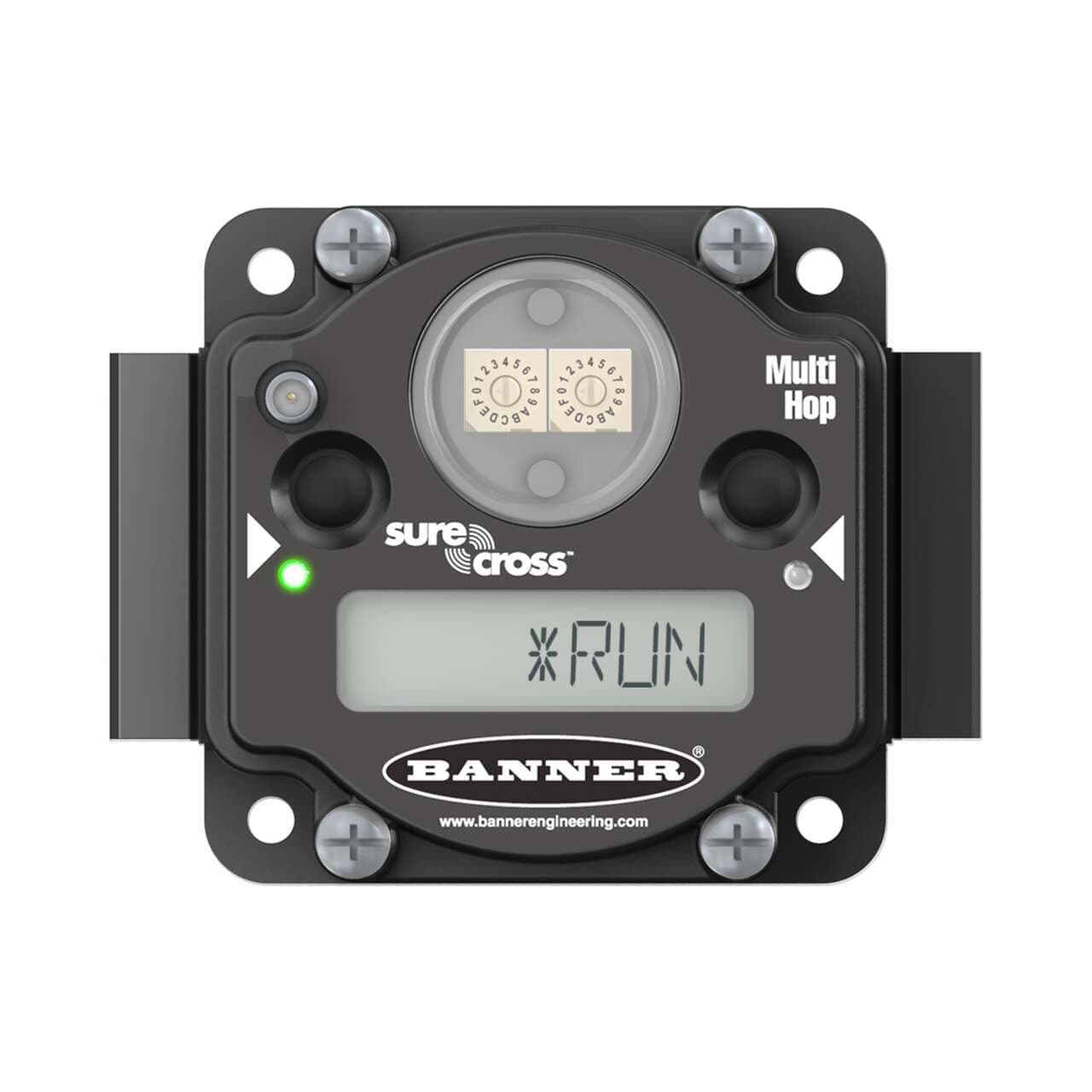

DX80DR2M-H5C Banner Network Gateways

Name: DX80DR2M-H5C
Brand: Banner
Price: 699 USD
Availability: BackOrder

Part#:DX80DR2M-H5C

Manufacturer:Banner

Alt. Part#:18784

Product Lifecycle:Active

Get a quick Quote!

MultiHop 2.4 GHz 65 mW IP20; FlexPower External Antenna RS485; Inputs: 4 Discrete 4 Analog; Outputs: 2 Discrete; External Terminals

About the manufacturer: Banner is one of the manufacturers that offers Network Gateways that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the DX80DR2M-H5C Banner price in the box on the right side or send a quick quote.

Product Details

Weight
589.6696 g
Country Of Origin
US
PROFINET
No
RS-485
Yes
1-wire Serial Interface
No
Wireless Radio Frequency
2.4 GHz
RS-232
No
Wireless
Yes
Modbus/TCP
No
Modbus RTU
Yes
Point-to-Point Topology
Yes
Feature: Hazardous Area
Yes
EtherNet/IP
No
Tree Topology
Yes
Star Topology
Yes
Relative Humidity
95%
Point-to-Multipoint Topology
Yes
Min Operating Temperature ( °C)
-20
Ships With Battery
No
Max Temp Operating Conditions
80

Environmental Rating (IP)

IP20

LCD Display

Yes

Min Temp Operating Conditions

-20

Max Operating Temperature ( °C)

Environmental Rating (NEMA)

NEMA 1

Hazardous/Intrinsically Safe Classification

Class I, Division 2/Zone 2; ATEX Zone 2

Power Supply

10-30 V dc or 3.6-5.5 V dc low power option

Output Details

2 NMOS Discrete

Discrete Outputs

Yes

Analog Inputs

Yes

Discrete Inputs

Yes

Input Details

4 Sinking Discrete, 4 0-20 mA Analog

Input/Output

Analog & Discrete

Device Type

Multihop Data Radio

Power

Flex Power

Housing Style

External Terminals

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

DX80DR2M-H5C Description

Banner Engineering DX80DR2M-H5C is a Gateway designed for surface mounting with a polycarbonate housing, polycarbonate rotary dial cover, polyester labels, EDPM rubber cover gasket, and nitrile rubber. It operates within an ambient air temperature range of -40 to +85°C and offers a degree of protection rated at IP20 NEMA 1. The dimensions of this rectangular-shaped gateway are H44.5mm x W103.3mm x D80.1mm. It features 2 digital outputs (30Vdc; NMOS; 1A), 4 analog inputs (0-20mA), and 4 digital inputs (30Vdc 3mA; NPN). This part is equipped with MultiHop flexpower data radio functionality, falls under the MultiHop Modbus IO data radios sub-range, and is designed with 2 buttons, 2 bi-color LEDs for Ex e II applications, and utilizes FHSS (Frequency Hopping Spread Spectrum) technology. Connection is facilitated through detachable screw-clamp connectors and an RP-SMA connector. The supply voltage requirement is 10-30Vdc (12Vdc-24Vdc nom.), and it supports RS-485 Modbus RTU communication protocol. Operating on a frequency of 2.4GHz ISM band 65mW, it can achieve a maximum transmission distance of 3.2km at nominal emission power.
