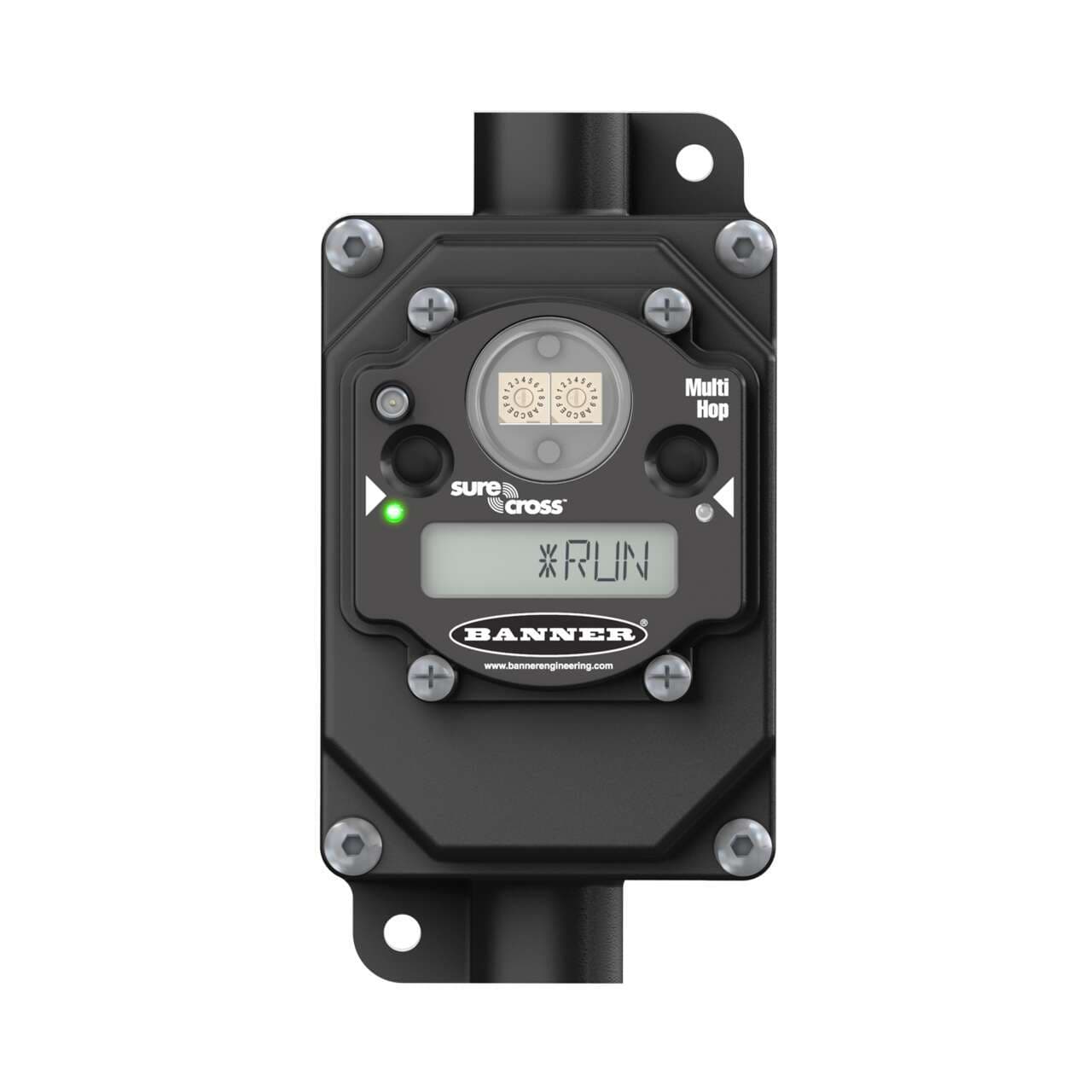

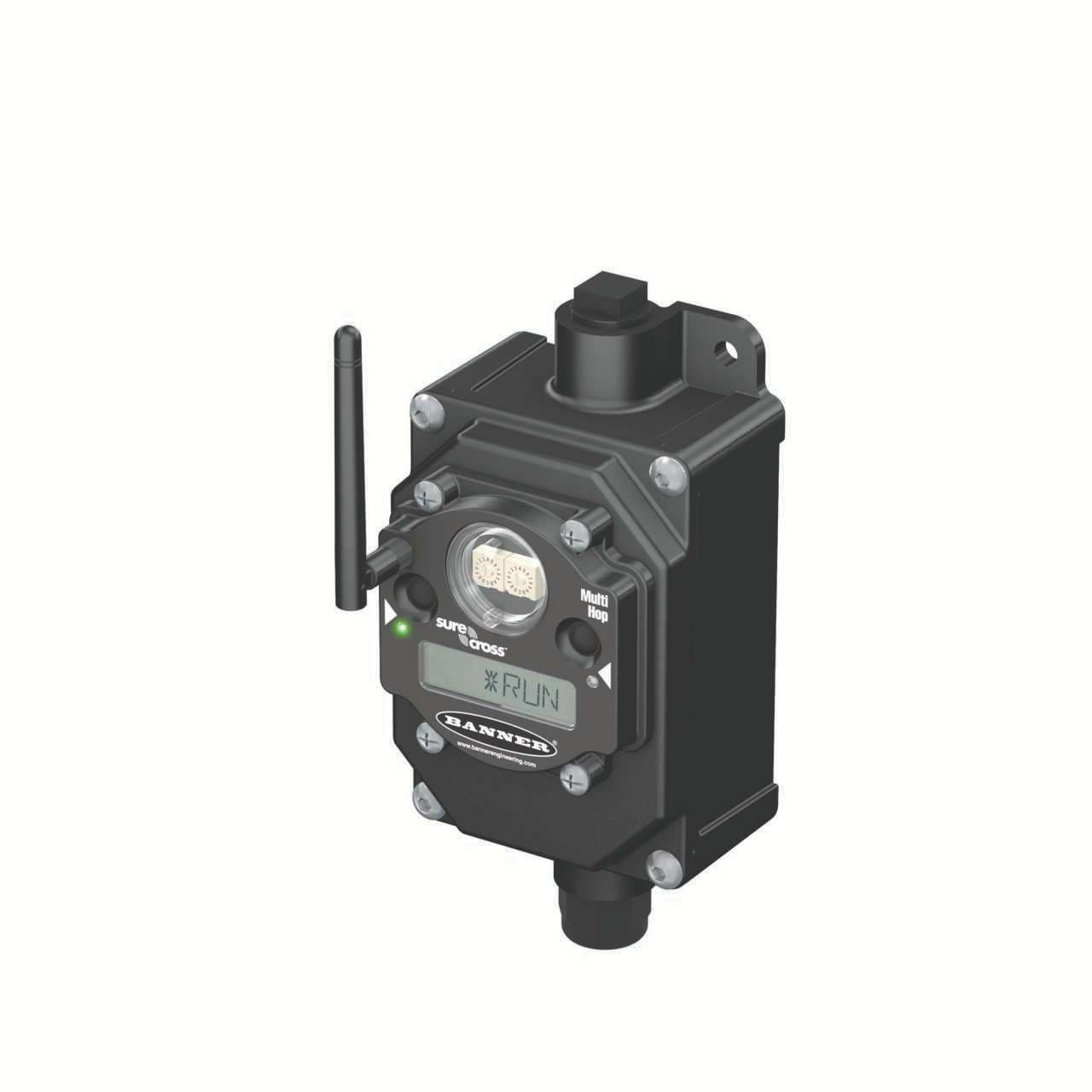

DX80DR2M-H15E Banner Network Gateways

DX80DR2M-H15E on Powermatic Associates
Banner

Part#:DX80DR2M-H15E

Manufacturer:Banner

Category:Network Gateways

Alt. Part#:801579

Product Lifecycle:Active

Get a quick Quote!

MultiHop 2.4 GHz 65 mW IP65; 100-277 V ac, Field Wireable 25W Supply, External Antenna; Inputs: Two PNP Discrete, Two 0-20 mA Analog; Outputs: Two AC/DC Relay (SPDT), Two PNP Discrete, Two 0-10 V Analog

About the manufacturer: Banner is one of the manufacturers that offers Network Gateways that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the DX80DR2M-H15E Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    703.0676 g
  • Country Of Origin
    US
  • Wireless Radio Frequency
    2.4 GHz
  • Wireless
    Yes
  • RS-485
    Yes
  • 1-wire Serial Interface
    No
  • RS-232
    No
  • PROFINET
    No
  • Modbus/TCP
    No
  • Modbus RTU
    Yes
  • EtherNet/IP
    No
  • Tree Topology
    Yes
  • Feature: Hazardous Area
    No
  • Point-to-Point Topology
    Yes
  • Star Topology
    Yes
  • Point-to-Multipoint Topology
    Yes
  • Relative Humidity
    95%
  • Min Temp Operating Conditions
    -20
  • LCD Display
    Yes
  • Max Temp Operating Conditions
    80
  • Power Supply
    100-277 V ac at 50/60 Hz
  • Environmental Rating (IP)
    IP65
  • Environmental Rating (NEMA)
    NEMA 4x
  • Input Details
    2 Discrete, two 0 - 20 mA current analog
  • Output Details
    2 Discrete, two 0 - 10 V dc analog, two AC/DC relay
  • Analog Outputs
    Yes
  • Discrete Inputs
    Yes
  • Discrete Outputs
    Yes
  • Device Type
    Multihop Data Radio
  • Analog Inputs
    Yes
  • Housing Style
    Enclosed Terminals
  • Power
    AC
  • Input/Output
    Analog & Discrete

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

DX80DR2M-H15E Description

Banner Engineering DX80DR2M-H15E is a Gateway with a surface mounting mode, featuring a polycarbonate housing, polycarbonate rotary dial cover, polyester labels, EDPM rubber cover gasket, and nitrile rubber. It operates within an ambient air temperature range of -40 to +85°C and offers 2 x analog outputs (0-10Vdc). This part provides an IP65 NEMA 4X degree of protection and has dimensions of H81.3mm x W155.2mm x D87.6mm. It includes 2 x digital outputs (SPDT / Form-C / NO/NC contact type; 10A / 277Vac), 2 x digital outputs (PNP), and 2 x analog inputs (0-20mA; 12-bit A/D conversion). The transmission frequency is set at 2400 MHz, and it has a rectangular shape with 2 x digital inputs (10Vdc-30Vdc; PNP). Its functions include a MultiHop data radio, part of the MultiHop Modbus IO data radios sub-range, designed with 2 x buttons, 2 x bi-color LEDs, and utilizes FHSS (Frequency Hopping Spread Spectrum) technology. Connection is facilitated through 2 x 1/2"-14 NPSM ports and an RP-SMA connector, with a supply voltage range of 100Vac-277Vac. It supports RS-485 Modbus TCP communication protocol, operates on a 2.4GHz ISM band at 65mW, and can achieve a maximum transmission distance of 3.2km at nominal emission power.

Related documents DX80DR2M-H15E Specs

DX80DR2M-H15E 201140.pdf
