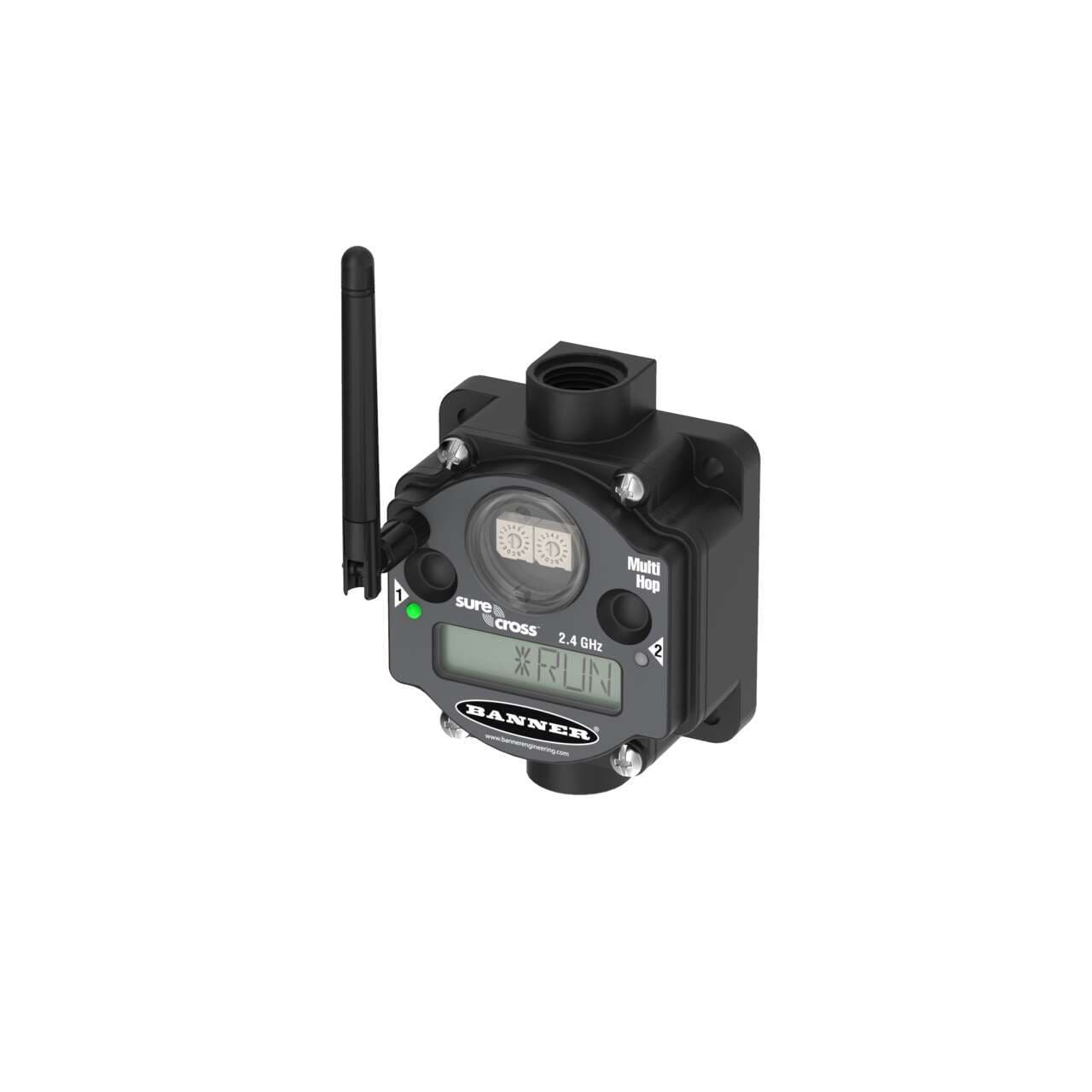

DX80DR2M-H14 Banner Network Gateways

DX80DR2M-H14 on Powermatic Associates
Banner
  • DX80DR2M-H14
  • DX80DR2M-H14

Part#:DX80DR2M-H14

Alt. Part#:800201

Manufacturer:Banner

Category:Network Gateways

Product Lifecycle:Active

Product description

MultiHop Internal Battery; 2.4 GHz 100 mW; 1 Configurable Digital Input; 1 Analog Voltage Input (configurable to Current); 1 Thermistor Input; 1 Switch Power Output; 1 Asynchronous Counter; SDI-12; Gland Bottom; Vent Plug Top

Product Details

  • Weight
    566.99 g
  • Country Of Origin
    US
  • RS-232
    No
  • Wireless Radio Frequency
    2.4 GHz
  • Application: Temperature Input
    Yes
  • Power
    Battery
  • Application: Soil Moisture Monitoring
    Yes
  • Wireless
    Yes
  • Modbus/TCP
    No
  • 1-wire Serial Interface
    No
  • PROFINET
    No
  • Modbus RTU
    Yes
  • EtherNet/IP
    No
  • Application: Object Counting
    Yes
  • Tree Topology
    Yes
  • Feature: Hazardous Area
    No
  • Star Topology
    Yes
  • Point-to-Point Topology
    Yes
  • Relative Humidity
    95%
  • Point-to-Multipoint Topology
    Yes
  • Ships With Battery
    Yes
  • Min Operating Temperature ( °C)
    -40
  • Max Operating Temperature ( °C)
    85
  • Device Type
    Multihop Data Radio
  • Min Temp Operating Conditions
    -40
  • Input/Output
    Analog & Discrete
  • LCD Display
    Yes
  • Input Details
    Configurable discrete, configurable analog, thermistor, asynchronous counter, SDI-12
  • Discrete Inputs
    Yes
  • Output Details
    Switch Power
  • Analog Inputs
    Yes
  • Housing Style
    Integrated Battery
  • Max Temp Operating Conditions
    85
  • Power Supply
    D Cell Lithium Battery
  • Environmental Rating (NEMA)
    NEMA 6
  • Environmental Rating (IP)
    IP67

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of DX80DR2M-H14 on Powermatic Associates is $599.00. Order now.

About the product

Banner Engineering DX80DR2M-H14 is a Gateway designed for surface mounting, featuring a polycarbonate housing, polycarbonate rotary dial cover, polyester labels, EDPM rubber cover gasket, and nitrile rubber. It operates within an ambient air temperature range of -40 to +85°C and offers a degree of protection rated at IP67 NEMA 6. The dimensions of this rectangular-shaped gateway are H62.6mm x W106.7mm x D80.1mm. It includes 1 x analog input (0-20mA / 0-10Vdc), 1 x analog input (Thermistor 10kΩ), 1 x digital input (30Vdc 3mA; NPN), and 1 x digital input (10kHz counter). The DX80DR2M-H14 functions as a MultiHop data radio within the MultiHop Modbus IO data radios sub-range, featuring SDI-12 data collection, 2 x buttons, 2 x bi-color LEDs, and utilizes FHSS (Frequency Hopping Spread Spectrum) technology. Connection is facilitated through a wiring chamber with screw-clamp connections and 2 x 1/2" NPT threaded cable accesses alongside an RP-SMA connector. It requires a supply voltage of 3.6Vdc (internal battery), supports the Modbus TCP communication protocol, operates on a 2.4GHz ISM band frequency with 65mW power, and can achieve a maximum transmission distance of 3.2km at nominal emission power.
