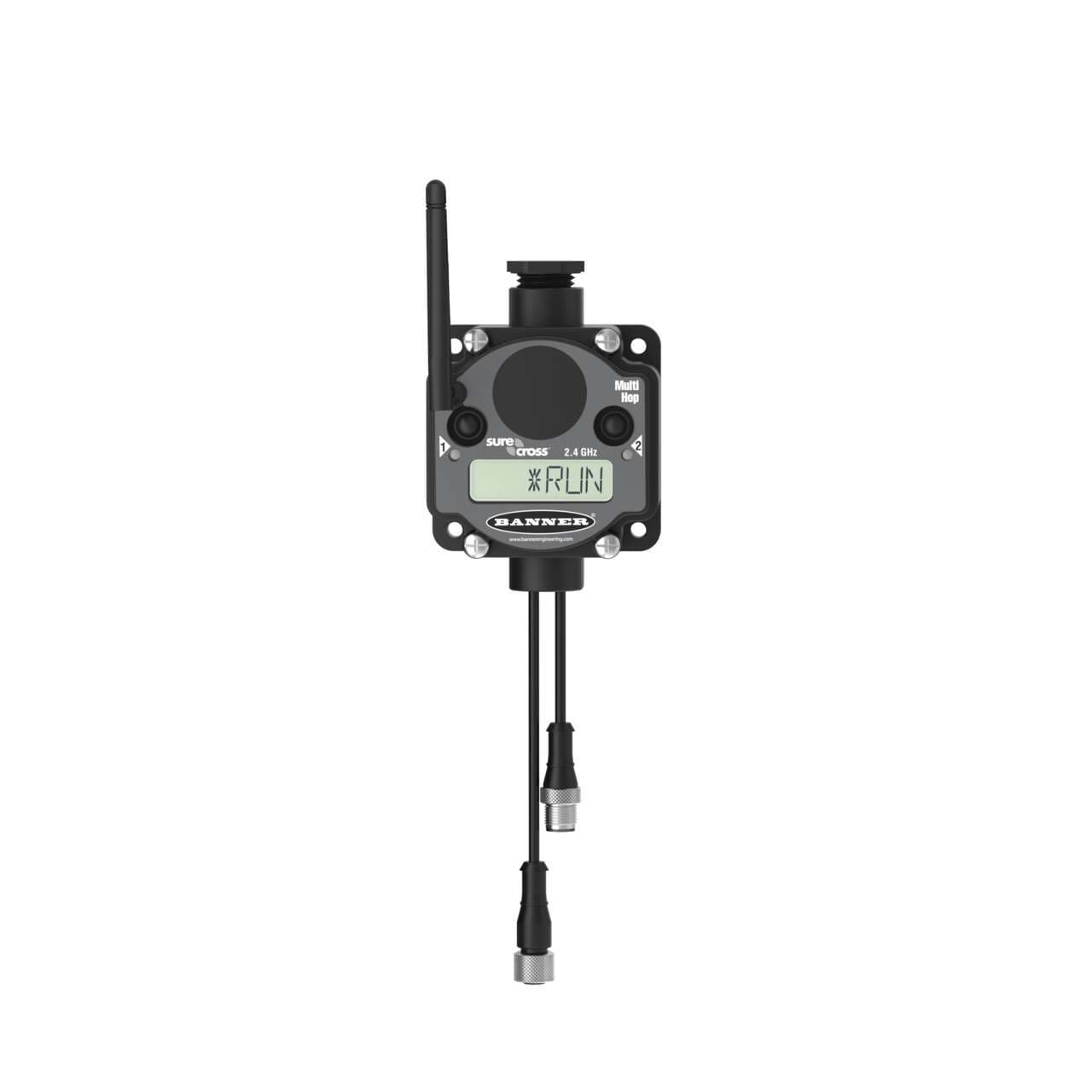

DX80DR2M-H10 Banner Network Gateways

DX80DR2M-H10 on Powermatic Associates
Banner
  • DX80DR2M-H10
  • DX80DR2M-H10

Part#:DX80DR2M-H10

Alt. Part#:807974

Manufacturer:Banner

Category:Network Gateways

Product Lifecycle:Active

Product description

MultiHop 2.4 GHz 65 mW IP67; Flex Power; External Antenna; 1-wire Serial Interface with Extended Addressing and Platform Capabilities

Product Details

  • Weight
    612.3492 g
  • Country Of Origin
    US
  • 1-wire Serial Interface
    Yes
  • Wireless Radio Frequency
    2.4 GHz
  • Wireless
    Yes
  • RS-232
    No
  • PROFINET
    No
  • RS-485
    No
  • Modbus RTU
    No
  • Modbus/TCP
    No
  • EtherNet/IP
    No
  • Application: Tank Level
    Yes
  • Tree Topology
    Yes
  • Application: Temperature Input
    Yes
  • Application: Relative Humidity Input
    Yes
  • Application: Vibration Sensor Input
    Yes
  • Application: Ultrasonic
    Yes
  • Point-to-Multipoint Topology
    Yes
  • Relative Humidity
    95%
  • Star Topology
    Yes
  • Feature: Hazardous Area
    No
  • Min Temp Operating Conditions
    -20
  • Power
    Flex Power
  • Point-to-Point Topology
    Yes
  • LCD Display
    Yes
  • Ships With Battery
    Yes
  • Input/Output
    Serial
  • Device Type
    Multihop Data Radio
  • Max Temp Operating Conditions
    80
  • Environmental Rating (IP)
    IP67
  • Environmental Rating (NEMA)
    NEMA 6
  • Input Details
    1-Wire Serial Interface
  • Power Supply
    10-30 V dc or D Cell Lithium Battery
  • Housing Style
    Integrated Battery

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of DX80DR2M-H10 on Powermatic Associates is $599.00. Order now.


About the product

Banner Engineering DX80DR2M-H10 is a Gateway featuring a surface mounting mode with a polycarbonate housing, polycarbonate rotary dial cover, polyester labels, EDPM rubber cover gasket, and nitrile rubber. It operates within an ambient air temperature range of -40 to +85°C and offers a degree of protection rated at IP67 NEMA 6. The dimensions of this rectangular-shaped gateway are H62.4mm x W256.4mm x D80.9mm. It operates on a transmission frequency of 2400 MHz and is part of the MultiHop Modbus IO data radios sub-range. This gateway is designed with 2 buttons, 2 bi-color LEDs, and utilizes FHSS (Frequency Hopping Spread Spectrum) technology. It connects via 2 x 5-pin M12 male connectors (1 male + 1 female) and an RP-SMA connector. The supply voltage required is 10-30Vdc (12Vdc-24Vdc nom.), and it supports the RS-485 Modbus TCP communication protocol. Operating on a frequency of 2.4GHz ISM band at 65mW, it can achieve a maximum transmission distance of 3.2km at nominal emission power.



DX80DR2M-H10 Related Documents
