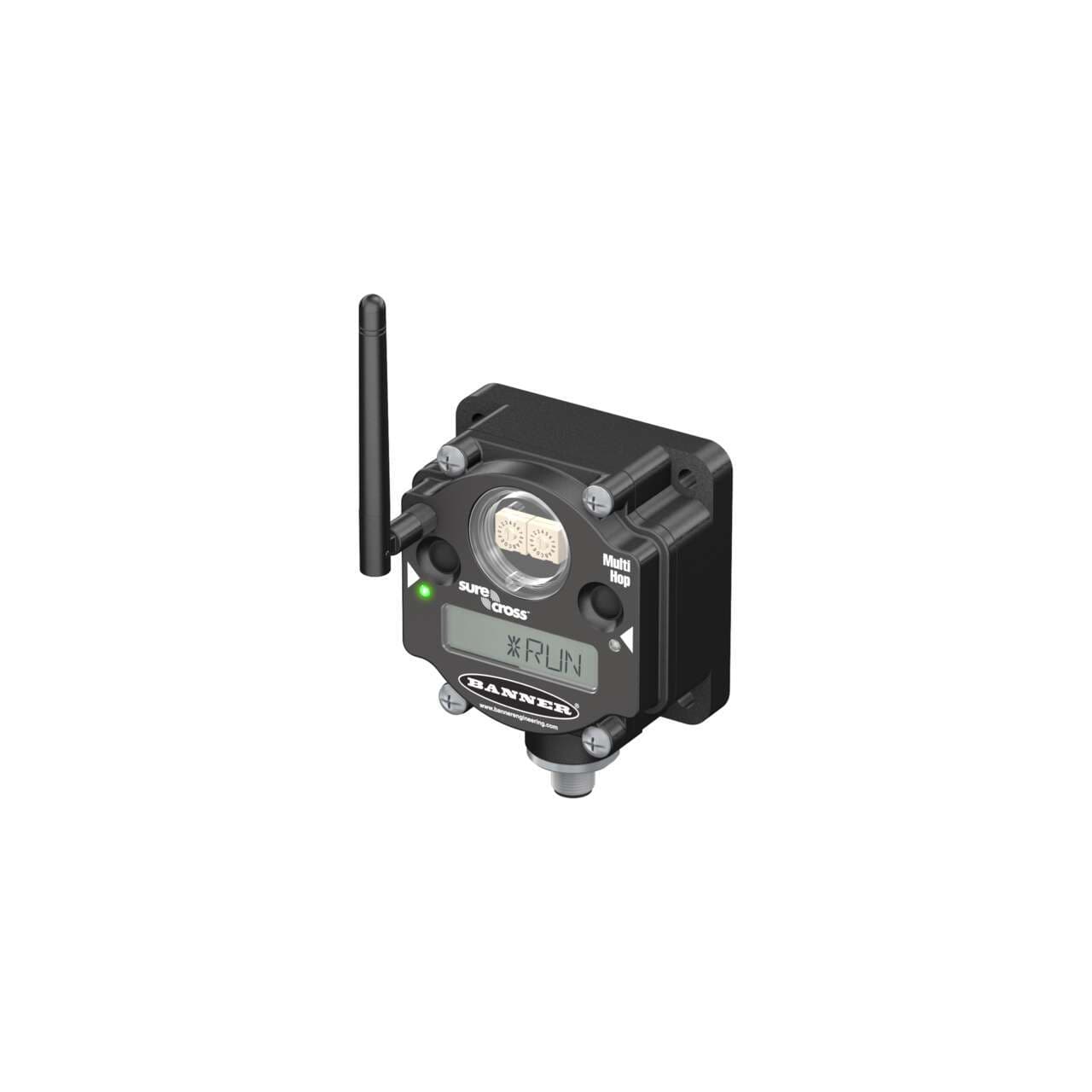

DX80DR2M-H Banner Network Gateways

Name: DX80DR2M-H
Brand: Banner

Banner DX80DR2M-H MultiHop 2.4 GHz 65 mW IP67; FlexPower External Antenna RS485/RS232; No IO

Part#:DX80DR2M-H

Manufacturer:Banner

Alt. Part#:11433

Product Lifecycle:Active

Get a quick Quote!

MultiHop 2.4 GHz 65 mW IP67; FlexPower External Antenna RS485/RS232; No IO

About the manufacturer: Banner is one of the manufacturers that offers Network Gateways that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the DX80DR2M-H Banner price in the box on the right side or send a quick quote.

Product Details

Weight
306.628192 g
Country Of Origin
US
1-wire Serial Interface
No
Wireless
Yes
Wireless Radio Frequency
2.4 GHz
RS-232
Yes
RS-485
Yes
Modbus/TCP
No
PROFINET
No
Modbus RTU
Yes
EtherNet/IP
No
Feature: Hazardous Area
Yes
Tree Topology
Yes
Star Topology
Yes
Point-to-Point Topology
Yes
Point-to-Multipoint Topology
Yes
Max Operating Temperature ( °C)
80
Min Operating Temperature ( °C)
-20
Ships With Battery
No
Min Temp Operating Conditions
-20

Relative Humidity

95%

Environmental Rating (IP)

IP67

Environmental Rating (NEMA)

NEMA 6

Max Temp Operating Conditions

LCD Display

Yes

Hazardous/Intrinsically Safe Classification

Class I, Division 2/Zone 2; ATEX Zone 2

Device Type

Multihop Data Radio

Housing Style

Enclosed Terminals

Power Supply

10-30 V dc or 3.6-5.5 V dc low power option

Power

Flex Power

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

DX80DR2M-H Description

Banner Engineering DX80DR2M-H is a Gateway designed for surface mounting with a polycarbonate housing, polycarbonate rotary dial cover, polyester labels, EDPM rubber cover gasket, and nitrile rubber. It operates within an ambient air temperature range of -40 to +85°C and offers a degree of protection rated at IP67 NEMA 6. This rectangular-shaped device has dimensions of H47.2mm x W107.1mm x D80.9mm and utilizes a transmission frequency of 2400 MHz. It is part of the MultiHop Modbus IO data radios sub-range and features MultiHop flexpower data radio functionality. The design includes 2 buttons, 2 bi-color LEDs suitable for Ex e II applications, and employs FHSS (Frequency Hopping Spread Spectrum) technology, though batteries are not included. Connection is facilitated through a 5-pin M12 male connector and an RP-SMA connector. It requires a supply voltage of 10-30Vdc (12Vdc-24Vdc nominal) and supports RS-485, RS-232, and Modbus RTU communication protocols. Operating on the 2.4GHz ISM band with a 65mW frequency, it can achieve a maximum transmission distance of 3.2km at nominal emission power.
