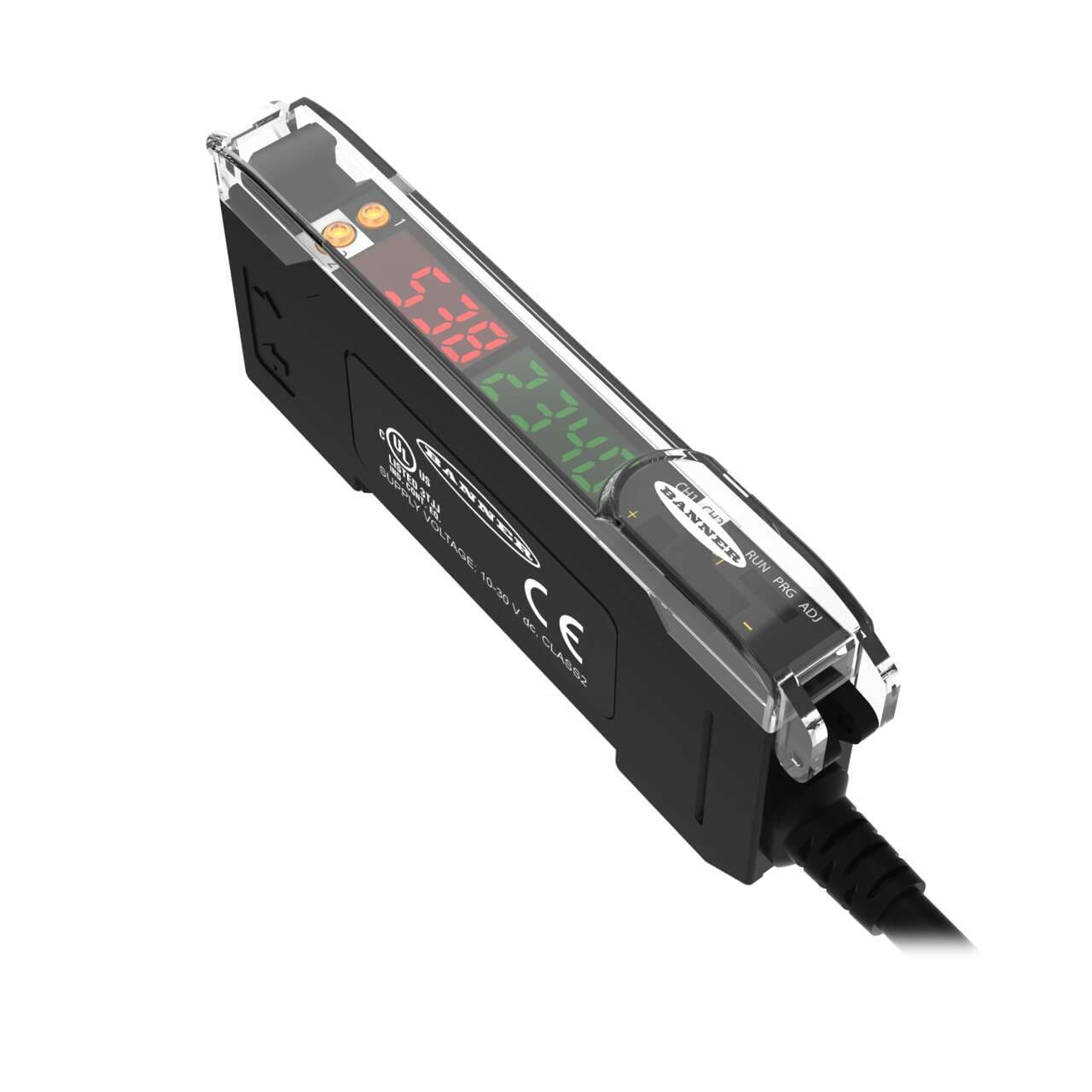

DF-G3IR-PS-Q5 Banner Sensor Accessories

Name: DF-G3IR-PS-Q5
Brand: Banner
Price: 226 USD
Availability: BackOrder

Part#:DF-G3IR-PS-Q5

Manufacturer:Banner

Alt. Part#:87649

Product Lifecycle:Active

Get a quick Quote!

DF-G3 IR Beam High Power Dual Display Fiber Amplifier; Range: Depends on Fiber; Input 10-30 V dc; Outputs: 1 PNP; 150 mm (6 in) 4-pin M12 PVC Pigtail QD

About the manufacturer: Banner is one of the manufacturers that offers Sensor Accessories that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the DF-G3IR-PS-Q5 Banner price in the box on the right side or send a quick quote.

Product Details

Weight
90.7184 g
Country Of Origin
CN
IO Link
No
Feature: Audible
No
Minimum response time (ms)
.5
Feature: Health/ Marginal Signal Output
Yes
Feature: Hazardous Area
No
Housing Material
Thermoplastic
Feature: Timing (Hold/Delay)
Yes
Intrinsically Safe
No
Crosstalk Avoidance
Yes
Power Supply/Supply Voltage
10-30 V dc
Adjustments
Teach Button
Special Feature: Bussable Power
No
Indicator Display Type
Dual Digital Displays
Delay at Power-up (ms)
500
Special Feature: Remote Teach
Yes
Min Op. Temperature (°C)
-10
Max Op. Relative Humidity (%)
90% @ 60°C
NEMA Rating
NEMA 1

Number of Pins

IP Rating

IP50

Repeatability (µs)

100 to 180

Output Type (Specific)

Single Discrete

Max Op. Temperature (°C)

Quick Disconnect Type

M12 (Euro)

Fiber Type

Glass Only

Connection

Pigtail QD

Output

PNP

Color LED - Amplifiers

Infrared

Primary Housing Material

Thermoplastic

Input/Output

Discrete

Housing Style

DIN Rail

Cable Length (m)

0.15

Power

Wavelength

850 nm

Primary brand

Banner Engineering

Display

LED 4 digits x 2 (red + green)

Sub-range name

DF-G3 Expert series

Supply voltage (DC)

10Vdc-30Vdc (12Vdc / 24Vdc nom.)

Main function

Amplifier for sensor

Mounting mode

DIN rail mounting

Equivalent to

DFG3IRPSQ5

Material

thermoplastic housing PVC connector Glass fiber

Connection type

Pre-wired with 6" / 150mm pigtail terminated with 4-pin Euro-style M12 connector

Functions

Long-range fiber optic sensor amplifier yellow LED (output status) red LED (signal)

Degree of protection

IP50 NEMA 1

Compliant with standard(s)

cULus CE

Light Color

Infrared (IR)

Shape

Rectangular

Ambient air temperature for operation

-10...+55 °C

Product series / family name

Fiber optic amplifiers

Digital outputs

1 x digital output (PNP transistor)

Order code / Manufacturer SKU

87649

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

DF-G3IR-PS-Q5 Description

Banner Engineering DF-G3IR-PS-Q5 is an amplifier for sensors, designed for DIN rail mounting. It features a thermoplastic housing with a PVC connector and glass fiber, suitable for ambient air temperatures ranging from -10 to +55 °C. This part offers a degree of protection rated at IP50 and NEMA 1, with an infrared light color at a wavelength of 850 nm. It includes 1 x digital output (PNP transistor; complementary NO/NC) and is shaped rectangularly. The DF-G3IR-PS-Q5, part of the DF-G3 Expert series, is a high-power, long-range fiber optic sensor amplifier with a pre-wired 6" / 150mm pigtail terminated with a 4-pin Euro-style M12 connector. It operates on a supply voltage of 10Vdc-30Vdc (12Vdc / 24Vdc nom.).
