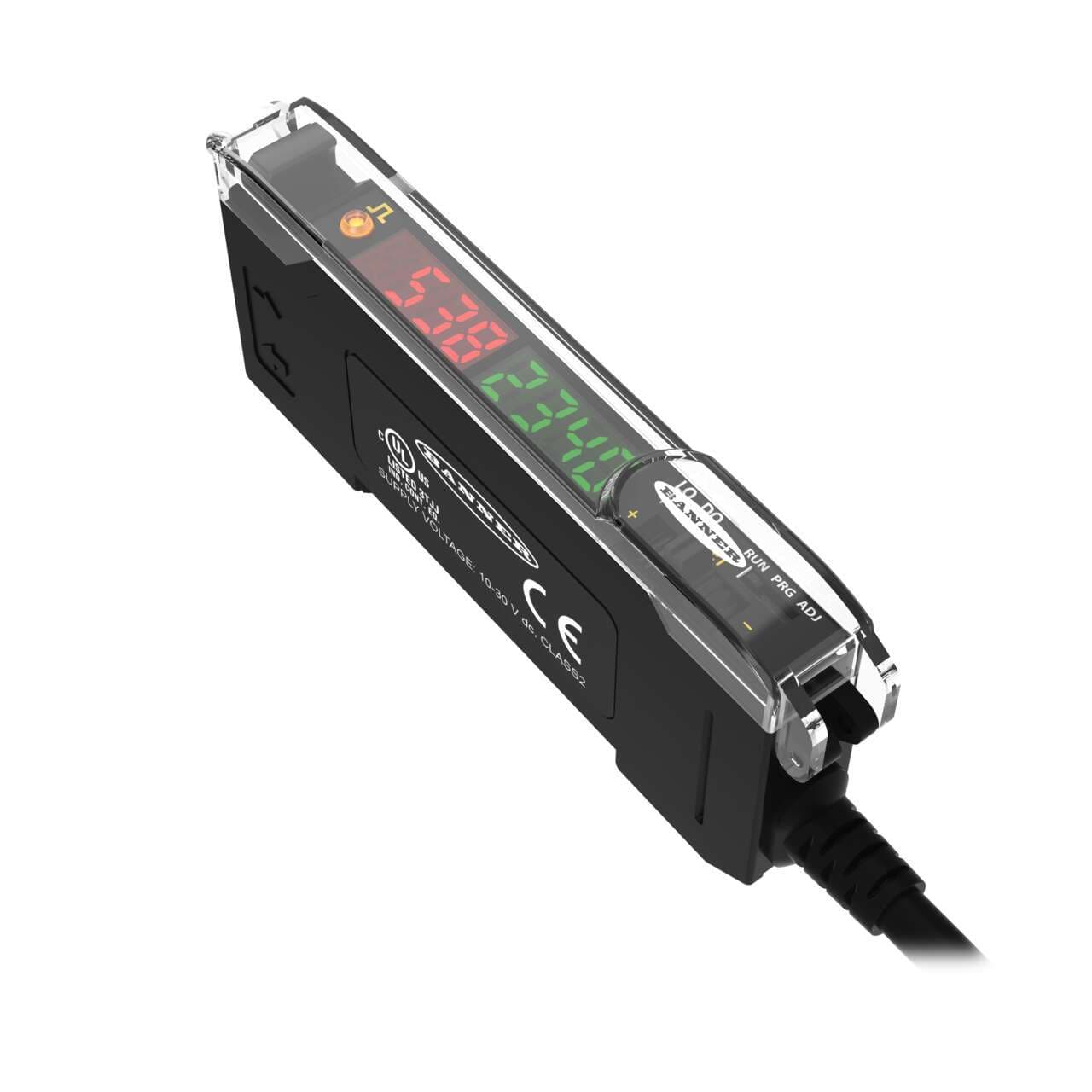

DF-G2-PC-2M Banner Sensor Accessories

Name: DF-G2-PC-2M
Brand: Banner
Price: 209 USD
Availability: BackOrder

Part#:DF-G2-PC-2M

Manufacturer:Banner

Alt. Part#:87566

Product Lifecycle:Active

Get a quick Quote!

DF-G2 Red Beam Small Object Counter Dual Display Fiber Amplifier; Range: Depends on Fiber; Input 10-30 V dc; Outputs: 1 PNP Counting, 1 PNP Health; 2 m 5-conductor PVC Cable

About the manufacturer: Banner is one of the manufacturers that offers Sensor Accessories that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the DF-G2-PC-2M Banner price in the box on the right side or send a quick quote.

Product Details

Weight
90.7184 g
Country Of Origin
MX
Housing Material
Thermoplastic
IO Link
No
Application: Registration Mark
Yes
Feature: Timing (Hold/Delay)
Yes
Application: Object Counting
Yes
Special Feature: Bussable Power
No
Minimum response time (ms)
.01
Feature: Hazardous Area
No
Feature: Health/ Marginal Signal Output
Yes
Indicator Display Type
Dual Digital Displays
Feature: Audible
No
Power Supply/Supply Voltage
10-30 V dc
Delay at Power-up (ms)
500
Adjustments
Teach Button
Intrinsically Safe
No
Crosstalk Avoidance
Yes
Max Op. Relative Humidity (%)
90% @ 60°C
Min Op. Temperature (°C)
-10

Max Op. Temperature (°C)

Special Feature: Remote Teach

Yes

IP Rating

IP50

Repeatability (µs)

12 to 80

Output Type (Specific)

Single Discrete

Quick Disconnect Type

No QD

NEMA Rating

NEMA 1

Number of Pins

Cable Length (m)

Primary Housing Material

Thermoplastic

Output

PNP

Input/Output

Discrete

Fiber Type

Plastic and Glass

Power

Housing Style

DIN Rail

Connection

Cable

Color LED - Amplifiers

Red

Primary brand

Banner Engineering

Main function

Amplifier for sensor

Light Color

Visible red

Degree of protection

IP50 NEMA 1

Compliant with standard(s)

cULus CE

Sub-range name

DF-G2 Expert series

Wavelength

635 nm

Equivalent to

DFG2PC2M

Supply voltage (DC)

10Vdc-30Vdc (12Vdc / 24Vdc nom.)

Connection type

Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads

Material

thermoplastic housing

Product series / family name

Fiber optic amplifiers

Display

LED 4 digits x 2 (red + green)

Shape

Rectangular

Order code / Manufacturer SKU

87566

Functions

High-speed dual-display fiber optic sensor amplifier yellow LED (output status) red LED (signal) TEACH mode

Mounting mode

DIN rail mounting

Ambient air temperature for operation

-10...+55 °C

Digital outputs

1 x digital output (PNP transistor)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

DF-G2-PC-2M Description

Banner Engineering DF-G2-PC-2M is an amplifier for sensors, designed for DIN rail mounting with a thermoplastic housing. It operates within an ambient air temperature range of -10 to +55°C and offers a degree of protection rated at IP50 NEMA 1. This part features a visible red light with a wavelength of 635 nm and a rapid response time of 10µs (0.00001 s). It includes 1 x digital output (PNP transistor) and is characterized by its rectangular shape. The DF-G2-PC-2M, part of the DF-G2 Expert series, is equipped with high-speed dual-display fiber optic sensor amplifier functionality and incorporates a TEACH mode specifically designed for small objects counting. It comes pre-wired with a 6.5ft / 2m cable terminated with bare end flying leads and requires a supply voltage of 10Vdc-30Vdc (12Vdc / 24Vdc nom.).
