D12SP6FPYQ Banner Sensor Accessories

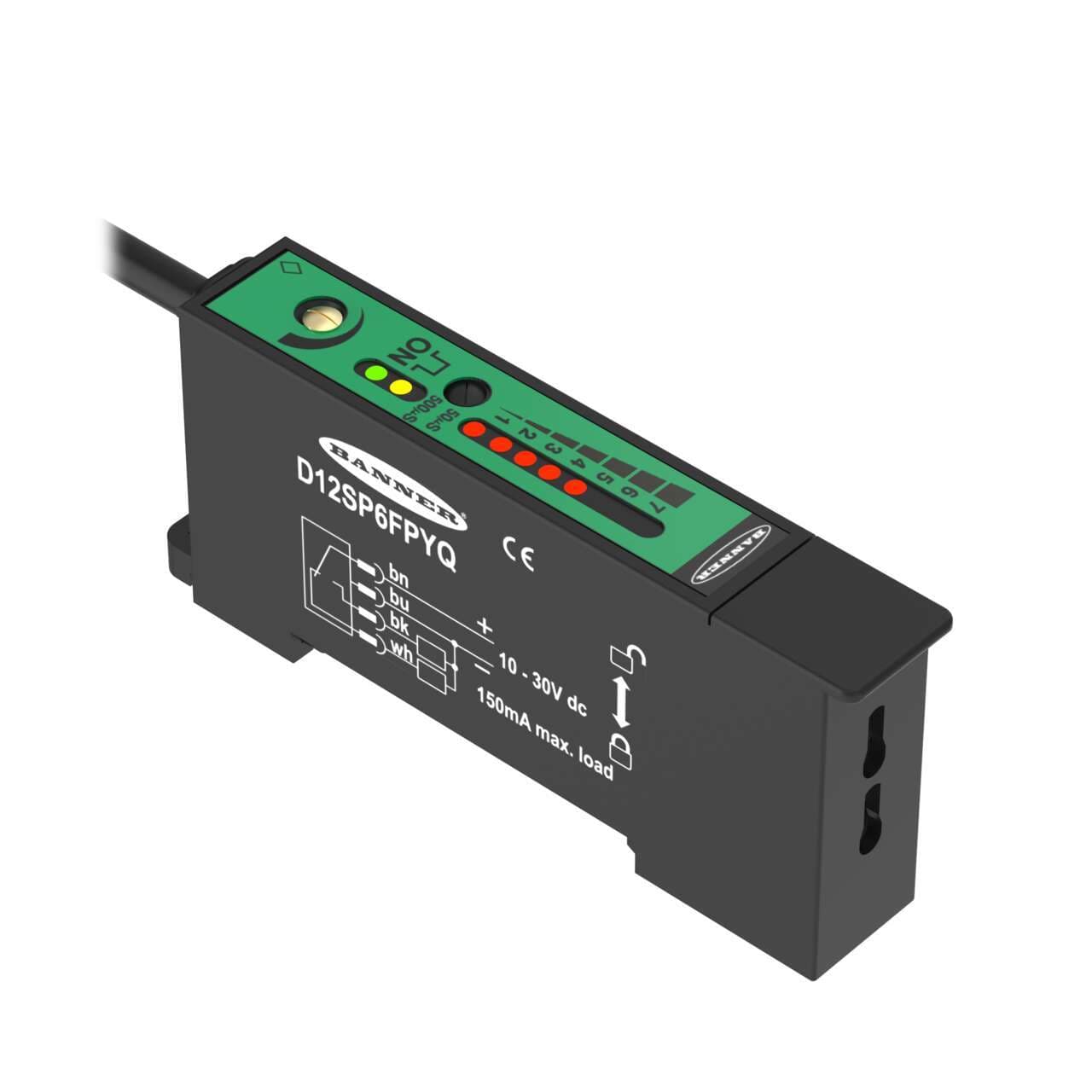

Banner Engineering D12SP6FPYQ is an amplifier designed for sensor applications, featuring a DIN rail mount for easy installation. This part has a net width of 12 mm and is constructed with a thermoplastic housing and an acrylic cover. It operates within an ambient air temperature range of -20 to +70°C and offers a degree of protection rated at IP11 NEMA 2. The amplifier emits visible red light and boasts a rapid response time of 50µs / 0.00005 s. It is equipped with 1 x digital output (PNP transistor; complementary NO/NC) and has a rectangular shape. The D12SP6FPYQ, part of the D12 series, includes functions such as a fiberoptic sensor amplifier and features a selectable high-speed response mode and potentiometer adjustment for plastic fiber with high power. It comes pre-wired with a 6" / 150mm pigtail terminated with a 4-pin Pico-style M8 connector. The supply voltage requirement is 10Vdc-30Vdc (12Vdc / 24Vdc nom.), and it has a black housing with net dimensions of 30 mm in depth and 65 mm in height.
