Part#:CSRB-M1240M1244

Alt. Part#:83272

Manufacturer:Banner

Category:Splitters

Product Lifecycle:Active

Product description

Splitter M12M to M12F and M12F connectors; 4-pin, Non-Shielded, IP68, AWG 22; Black PUR cord, Straight Connectors; Trunk: 0 m; Branches: 1.2 m

Product Details

  • Weight
    124.7378 g
  • Country Of Origin
    TW
  • Splitter Function
    Parallel
  • Oil/Grease Resistant
    No
  • Feature: Hazardous Area
    No
  • Splitter Branches Length (m)
    1.2, 1.2
  • Splitter Branches: AWG
    22, 22
  • Splitter Branches: Number of Conductors
    4, 4
  • Primary AWG
    22
  • Splitter Branches: Orientation
    Straight, Straight
  • Splitter Branches: Connector Type
    M12F, M12F
  • Splitter Branches: Coupling Method
    M12 Single Key, M12 Single Key
  • Splitter Cable Diameter
    5.5, 5.5
  • Primary Number of Conductors
    4
  • Primary Orientation
    Straight
  • Primary Gender
    Male
  • Primary Coupling Method
    M12 Single Key
  • Minimum Temp. (°C)
    -40
  • Voltage Rating (V)
    60 V ac/75 V dc
  • IP Rating
    IP68
  • Primary Connector Type
    EURO
  • Current Rating (A)
    2.0
  • Maximum Temp. (°C)
    105
  • Trunk Length (m)
    No Trunk
  • Shield/No Shield
    No Shield
  • Coupling Material/Color
    Nickel Plated Brass
  • Cordset Length (m)
    1.22
  • Connector Body Material/Color
    PUR Black
  • Number of Connectors
    3
  • Number of Contacts
    4
  • Cable Jacket Color
    Black
  • Outside Cable Diameter (mm)
    5.5
  • Cable Jacket Material
    PVC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of CSRB-M1240M1244 on Powermatic Associates is $91.00. Order now.

About the product

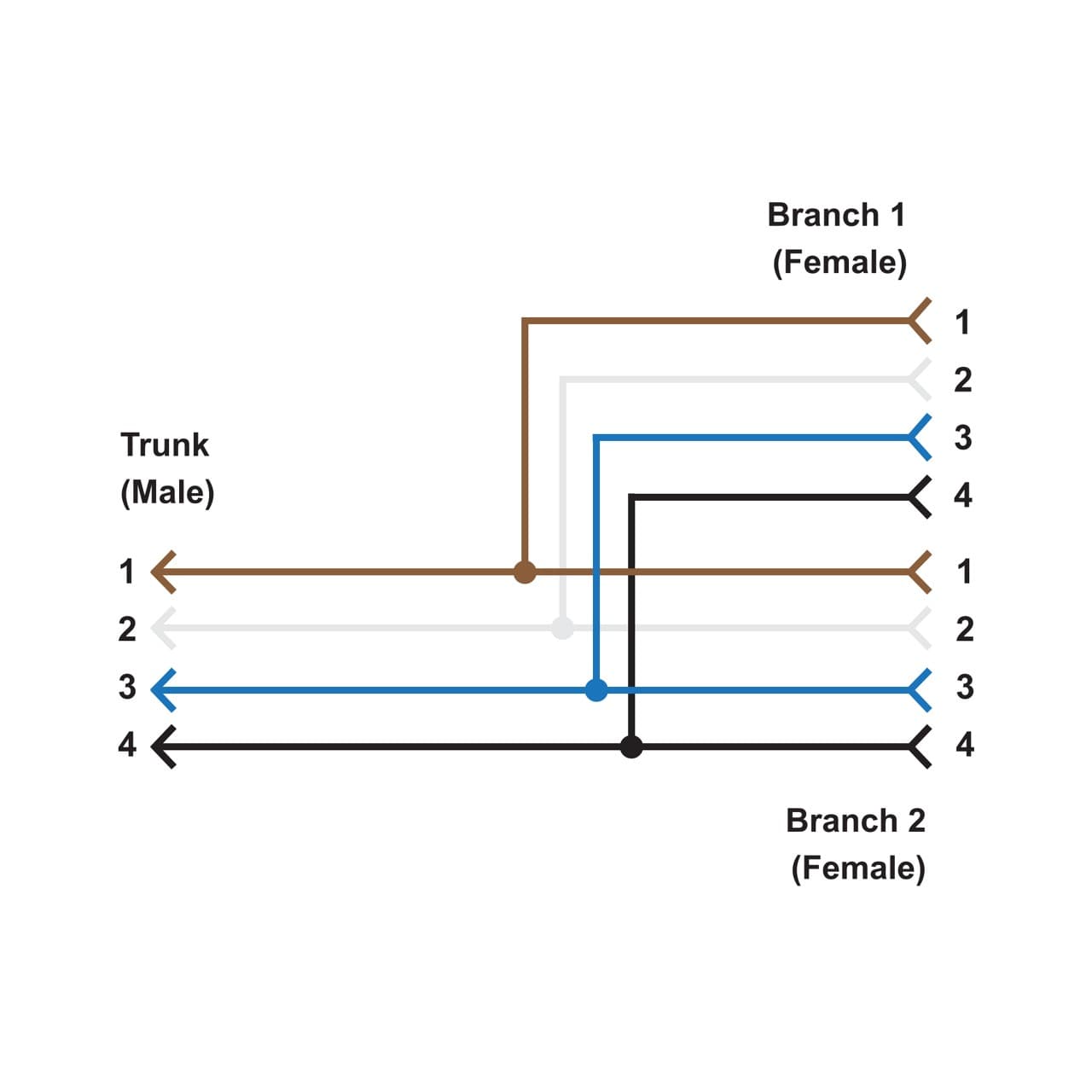

Banner Engineering CSRB-M1240M1244 is a Y-shaped splitter cable designed for splitting signals in automation systems. It features a 4-pin Euro-style M12 male connector on the trunk and two 4-pin Euro-style M12 female connectors on its 4ft / 1.2m branches 1 & 2. This part is built to ensure a degree of protection of IP68, making it suitable for applications requiring high levels of dust and moisture resistance.

This item can ship within 0 day!
