CSM3DO-M12121FM12121M Banner Splitters

Name: CSM3DO-M12121FM12121M
Brand: Banner
Price: 114 USD
Availability: BackOrder

CSM3DO-M12121FM12121M on Powermatic Associates

Part#:CSM3DO-M12121FM12121M

Manufacturer:Banner

Alt. Part#:13235

Product Lifecycle:Active

Get a quick Quote!

CSM3DO-M12121FM12121M

About the manufacturer: Banner is one of the manufacturers that offers Splitters that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the CSM3DO-M12121FM12121M Banner price in the box on the right side or send a quick quote.

Product Details

Weight
131.088088 g
Country Of Origin
TW
Splitter Branches: Number of Conductors
5, 5, 12
Feature: Hazardous Area
No
Oil/Grease Resistant
No
Splitter Function
Custom
Splitter Branches Length (m)
0.3, 0.3, 0.3
Splitter Branches: AWG
22, 22, 22
Splitter Branches: Orientation
Straight, Straight, Straight
Splitter Branches: Coupling Method
M12 Single Key, M12 Single Key, M12 Single Key
Secondary Number of Conductors
5
Splitter Branches: Connector Type
M12F, M12F, M12M
Splitter Cable Diameter
6, 6, 6
Secondary Gender
Female
Secondary Coupling Method
M12 Single Key
Secondary Connector Type
EURO
Secondary Orientation
Straight
Primary AWG
24
Primary Number of Conductors
12
Primary Gender
Female

Primary Coupling Method

M12 Single Key

Primary Connector Type

EURO

Primary Orientation

Straight

Minimum Temp. (°C)

-40

Voltage Rating (V)

60 V ac/75 V dc

Maximum Temp. (°C)

105

Current Rating (A)

2.0

IP Rating

IP68

Coupling Material/Color

Nickel Plated Brass

Shield/No Shield

No Shield

Trunk Length (m)

0.3

Connector Body Material/Color

PUR Black

Cordset Length (m)

0.6

Outside Cable Diameter (mm)

Cable Jacket Color

Black

Cable Jacket Material

PVC

Number of Contacts

Number of Connectors

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

CSM3DO-M12121FM12121M Description

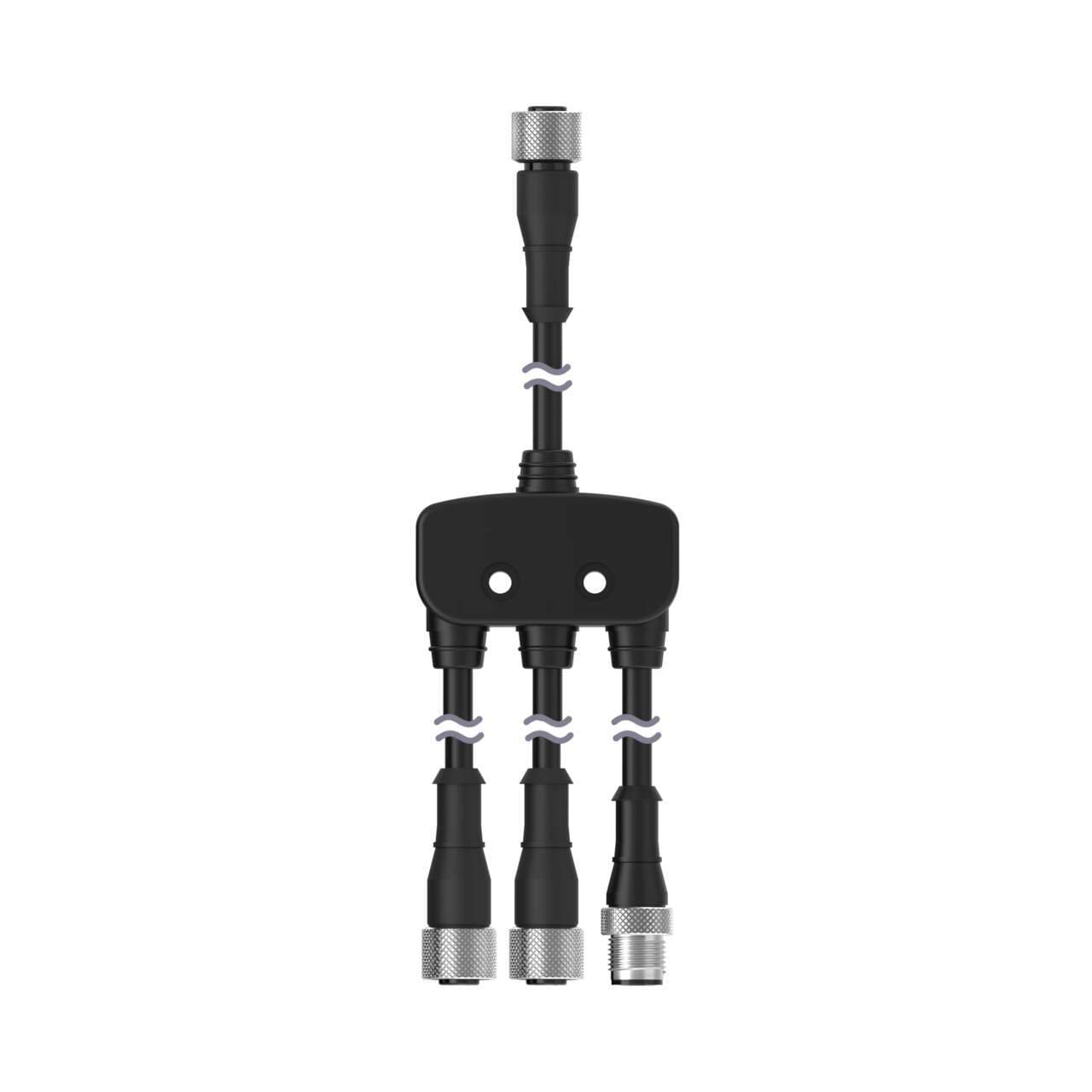

Banner Engineering CSM3DO-M12121FM12121M is a splitter designed with a PVC cable and operates within an ambient air temperature range of -40 to +105°C. It offers a degree of protection rated at IP68, making it suitable for environments where dust and moisture resistance is critical. The splitter is designed to work with a rated voltage of 60Vac and 75Vdc. It features a 4-pin Euro-style M12 female connector on a 1ft / 30cm trunk and includes two branches with 5-pin Euro-style M12 female connectors and one branch with a 12-pin Euro-style M12 male connector, each branch also measuring 1ft / 30cm. The cable has a diameter of 6mm and comes in a black housing.
