CSF-M12F52M12M40.3 Banner Splitters
Part#:CSF-M12F52M12M40.3
Manufacturer:Banner
Alt. Part#:809694
Product Lifecycle:Active
Get a quick Quote!

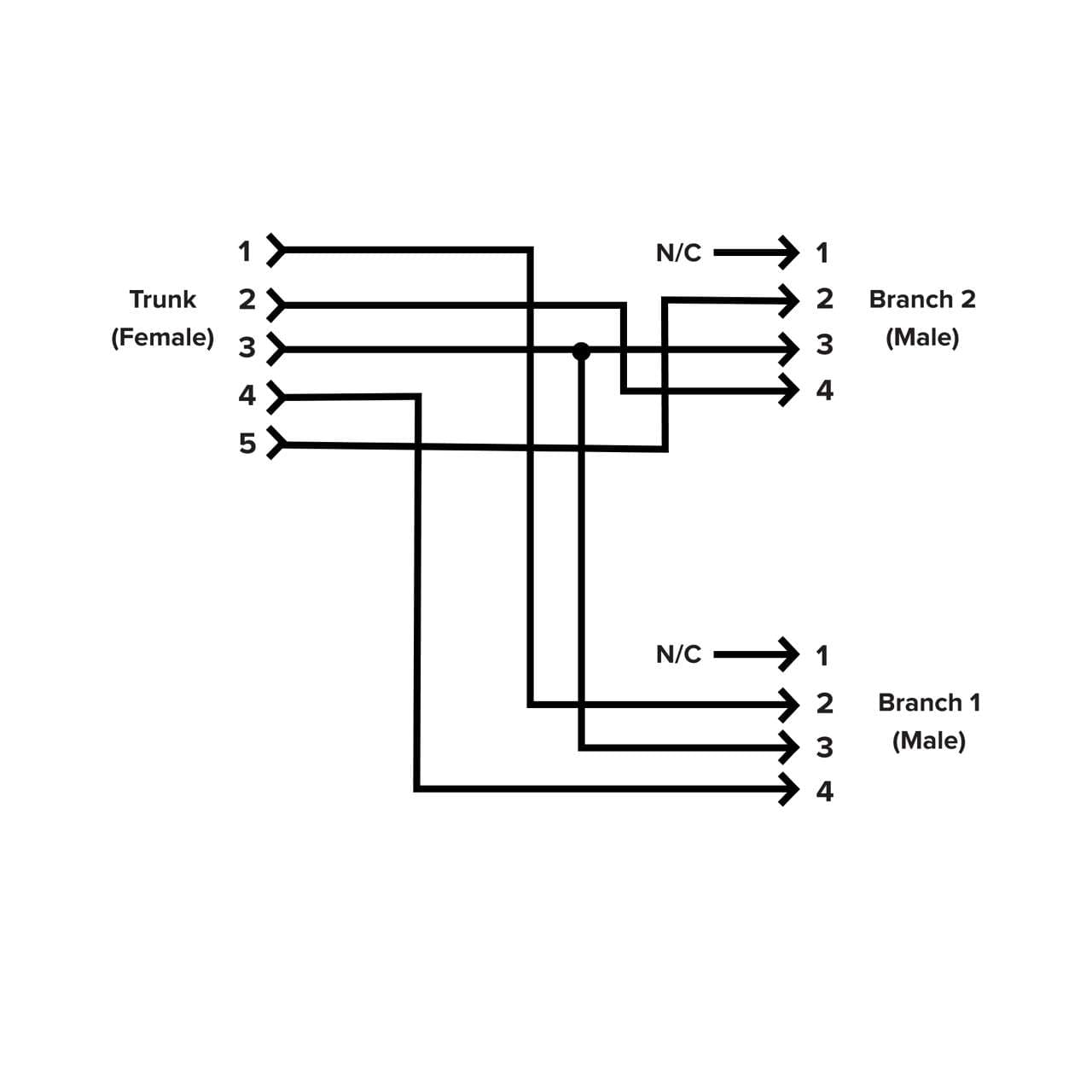

Splitter M12F to M12M and M12M connectors; 5-pin, Non-Shielded, IP68, AWG 22; Black PVC cord, Straight Connectors; Trunk: 2 m; Branches: 0.3 m
About the manufacturer: Banner is one of the manufacturers that offers Splitters that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the CSF-M12F52M12M40.3 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight 86.18248 g
- Country Of Origin TW
- Oil/Grease Resistant No
- Splitter Branches: Orientation Straight, Straight
- Splitter Branches: Number of Conductors 3, 3
- Feature: Hazardous Area No
- Splitter Function Custom
- Splitter Branches: AWG 22, 22
- Splitter Branches: Connector Type M12M, M12M
- Splitter Branches: Coupling Method M12 Single Key, M12 Single Key
- Splitter Branches Length (m) 0.3, 0.3
- Splitter Cable Diameter 5.9, 5.9
- Primary Orientation Straight
- Primary Gender Female
- Primary AWG 22
- Primary Coupling Method M12 Single Key
- Primary Number of Conductors 5
- IP Rating IP67
- Voltage Rating (V) 250 V ac/dc
- Primary Connector Type EURO
- Current Rating (A) 4.0
- Minimum Temp. (°C) -40
- Maximum Temp. (°C) 105
- Trunk Length (m) 2
- Coupling Material/Color Nickel Plated Brass
- Shield/No Shield No Shield
- Cable Jacket Color Black
- Cordset Length (m) 2
- Connector Body Material/Color PUR Black
- Outside Cable Diameter (mm) 6
- Cable Jacket Material PVC
- Number of Connectors 3
- Number of Contacts 13
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
CSF-M12F52M12M40.3 Description
Splitter M12F Euro to M12M and M12M connectors, 5 Pin, Non-Shielded, IP68, AWG 22, Black PVC cord, Straight Connectors, Trunk: 2 m; Branches: 0.3 m
