CSB-UNT810M1282M1284.5 Banner Splitters

CSB-UNT810M1282M1284.5 on Powermatic Associates
Banner

Part#:CSB-UNT810M1282M1284.5

Manufacturer:Banner

Category:Splitters

Alt. Part#:25462

Product Lifecycle:Active

Get a quick Quote!

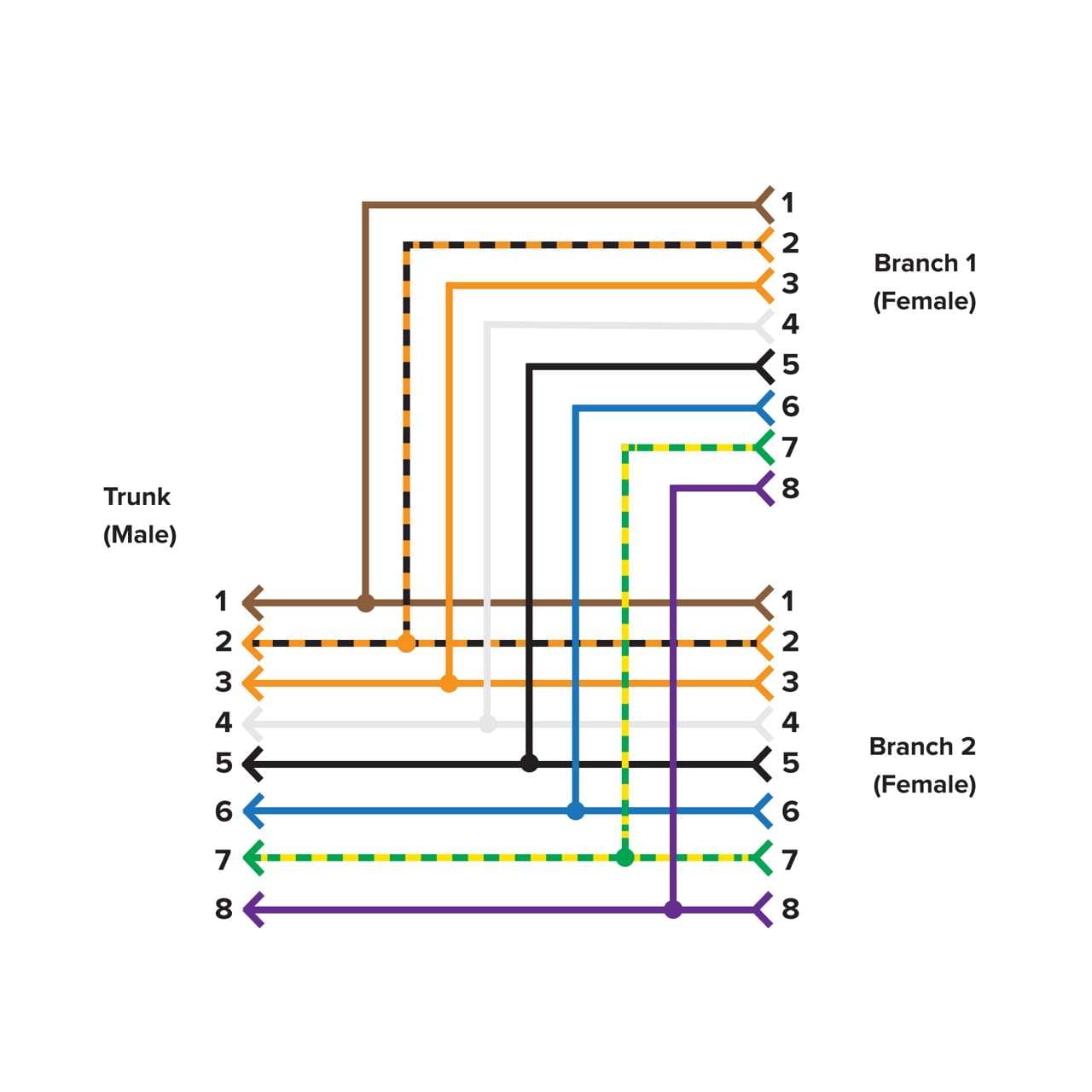

M12 QD Splitter Cable; 8X22 AWG Unterminated 3.05 m (10 ft) Trunk; 8-pin Straight Female M12 0.61 m (2 ft) Branch 1; 8-pin Straight Female M12 1.37 m (4.5 ft) Branch 2

About the manufacturer: Banner is one of the manufacturers that offers Splitters that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the CSB-UNT810M1282M1284.5 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    272.1552 g
  • Country Of Origin
    TW
  • Splitter Branches: Number of Conductors
    8, 8
  • Oil/Grease Resistant
    No
  • Feature: Hazardous Area
    No
  • Splitter Branches Length (m)
    0.61, 1.37
  • Splitter Function
    Parallel
  • Splitter Branches: Orientation
    Straight, Straight
  • Splitter Branches: AWG
    22, 22
  • Splitter Branches: Connector Type
    M12F, M12F
  • Splitter Branches: Coupling Method
    M12 Single Key, M12 Single Key
  • Splitter Cable Diameter
    5.5, 5.5
  • Primary AWG
    22
  • Primary Number of Conductors
    8
  • Maximum Temp. (°C)
    105
  • Primary Connector Type
    Flying Leads
  • Voltage Rating (V)
    60 V ac/75 V dc
  • Current Rating (A)
    2.0
  • IP Rating
    IP68
  • Minimum Temp. (°C)
    -40
  • Coupling Material/Color
    Nickel Plated Brass
  • Trunk Length (m)
    3.05
  • Outside Cable Diameter (mm)
    5.5
  • Shield/No Shield
    No Shield
  • Connector Body Material/Color
    PUR Black
  • Cable Jacket Material
    PVC
  • Number of Connectors
    2
  • Cable Jacket Color
    Black
  • Number of Contacts
    8
  • Cordset Length (m)
    4.42

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

CSB-UNT810M1282M1284.5 Description

Banner Engineering CSB-UNT810M1282M1284.5 is a Y-shaped splitter cable designed for splitting connections within automation systems. It features an 8-core bare end flying leads 10ft / 3m cable on the trunk, an 8-pin Euro-style M12 female connector on a 2ft / 60cm branch 1, and an 8-pin Euro-style M12 female connector on a 4.5ft / 1.3m branch 2. This configuration allows for versatile connection options in various industrial applications.

Manufacturer warranty

$214.00

Request a quote, and we will send availability within minutes.

Select Qty:

$214.00

$214.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
