CSB-UNT425M1241 Banner Splitters

CSB-UNT425M1241 on Powermatic Associates
Banner

Part#:CSB-UNT425M1241

Manufacturer:Banner

Category:Splitters

Alt. Part#:75277

Product Lifecycle:Active

Get a quick Quote!

Splitter Flying Leads to M12F and M12F connectors; 4-pin, Non-Shielded, IP68, AWG 22; Black PVC cord, Straight Connectors; Trunk: 7.6 m; Branches: 0.3 m

About the manufacturer: Banner is one of the manufacturers that offers Splitters that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the CSB-UNT425M1241 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    408.2328 g
  • Country Of Origin
    TW
  • Splitter Branches Length (m)
    0.3, 0.3
  • Feature: Hazardous Area
    No
  • Oil/Grease Resistant
    No
  • Splitter Function
    Parallel
  • Splitter Branches: Number of Conductors
    5, 5
  • Splitter Branches: AWG
    22, 22
  • Splitter Branches: Orientation
    Straight, Straight
  • Splitter Branches: Coupling Method
    M12 Single Key, M12 Single Key
  • Splitter Branches: Connector Type
    M12F, M12F
  • Splitter Cable Diameter
    5.5, 5.5
  • Primary AWG
    22
  • Primary Number of Conductors
    4
  • Primary Connector Type
    Flying Leads
  • IP Rating
    IP68
  • Minimum Temp. (°C)
    -40
  • Voltage Rating (V)
    250 V ac/300 V dc
  • Maximum Temp. (°C)
    105
  • Current Rating (A)
    4.0
  • Coupling Material/Color
    Nickel Plated Brass
  • Shield/No Shield
    No Shield
  • Trunk Length (m)
    7.6
  • Cordset Length (m)
    7.9
  • Connector Body Material/Color
    PUR Black
  • Outside Cable Diameter (mm)
    5.5
  • Cable Jacket Material
    PVC
  • Cable Jacket Color
    Black
  • Number of Connectors
    2
  • Number of Contacts
    4

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

CSB-UNT425M1241 Description

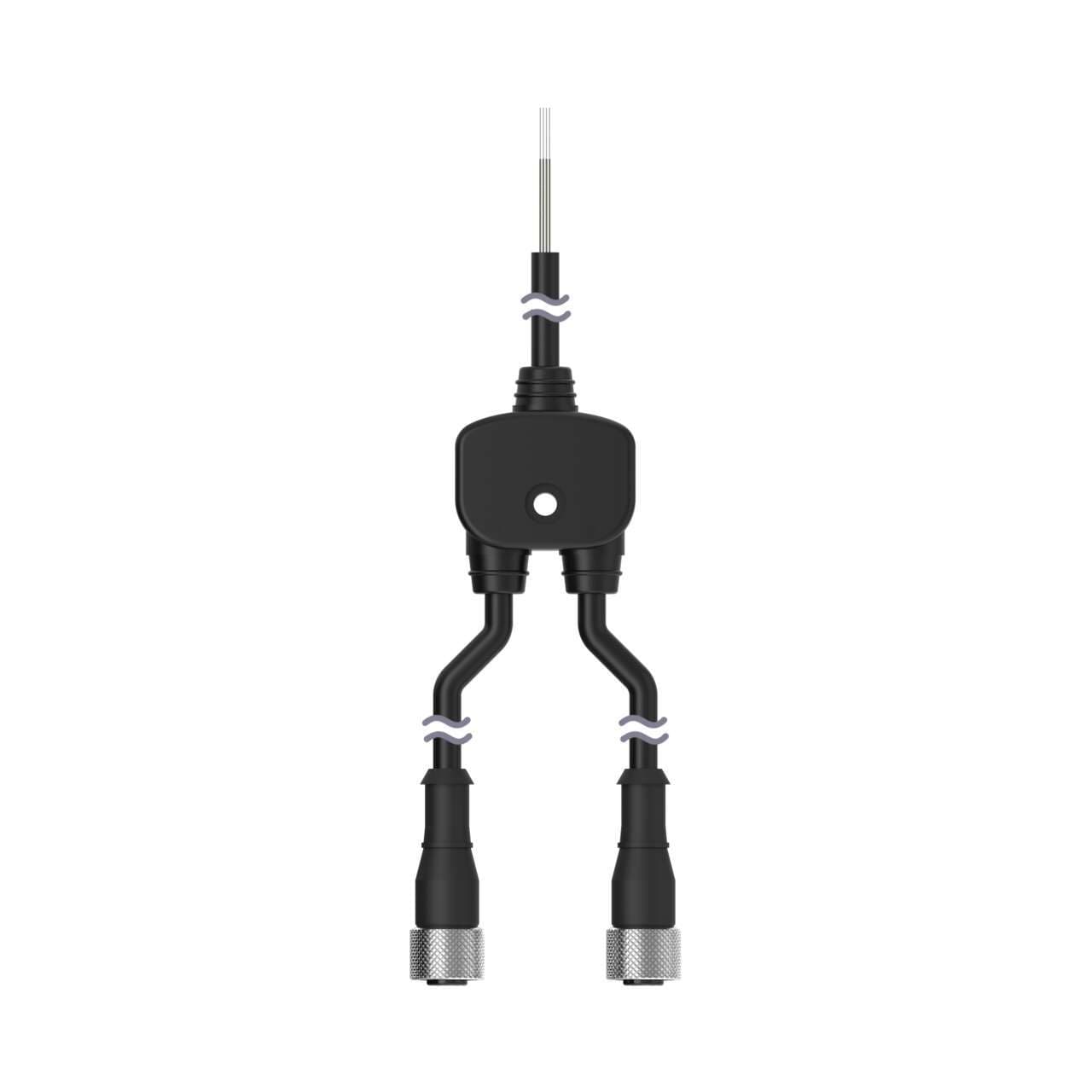

Banner Engineering CSB-UNT425M1241 is a Y-shaped splitter cable designed for splitting connections within automation systems. It features a degree of protection rated at IP68, making it suitable for use in environments where dust and moisture resistance is critical. The splitter includes a 4-core bare end flying leads cable that extends 25 feet (7.6 meters) on the trunk, and two branches each equipped with 4-pin Euro-style M12 female connectors, with the branches measuring 1 foot (30 centimeters) in length.
