CSB-UNT213M831F1241 Banner Splitters

CSB-UNT213M831F1241 on Powermatic Associates
Banner

Part#:CSB-UNT213M831F1241

Manufacturer:Banner

Alt. Part#:81843

Product Lifecycle:Active

Get a quick Quote!

Splitter Flying Leads to M12F and M8F connectors; 3-pin, Shielded, IP68, AWG 24; Black PVC cord, Straight Connectors; Trunk: 4 m; Branches: 0.34 m

About the manufacturer: Banner is one of the manufacturers that offers Splitters that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the CSB-UNT213M831F1241 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    90.7184 g
  • Country Of Origin
    TW
  • Oil/Grease Resistant
    No
  • Splitter Function
    Parallel
  • Feature: Hazardous Area
    No
  • Splitter Branches: AWG
    22, 24
  • Splitter Branches Length (m)
    0.3, 0.3
  • Splitter Branches: Orientation
    Straight, Straight
  • Splitter Branches: Number of Conductors
    5, 3
  • Splitter Branches: Coupling Method
    M12 Single Key, M8 Thread
  • Splitter Branches: Connector Type
    M12F, M8F Thread
  • Splitter Cable Diameter
    5.5, 4.4
  • Primary AWG
    24
  • Primary Connector Type
    Flying Leads
  • Primary Number of Conductors
    3
  • IP Rating
    IP68
  • Voltage Rating (V)
    250 V ac/300 V dc
  • Minimum Temp. (°C)
    -40
  • Current Rating (A)
    4.0
  • Maximum Temp. (°C)
    105
  • Coupling Material/Color
    Flying Leads
  • Shield Type
    Pin
  • Trunk Length (m)
    4
  • Outside Cable Diameter (mm)
    5.5
  • Connector Body Material/Color
    PUR Black
  • Cordset Length (m)
    4.34
  • Shield/No Shield
    Shield
  • Cable Jacket Material
    PVC
  • Cable Jacket Color
    Black
  • Number of Connectors
    2
  • Number of Contacts
    3

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

CSB-UNT213M831F1241 Description

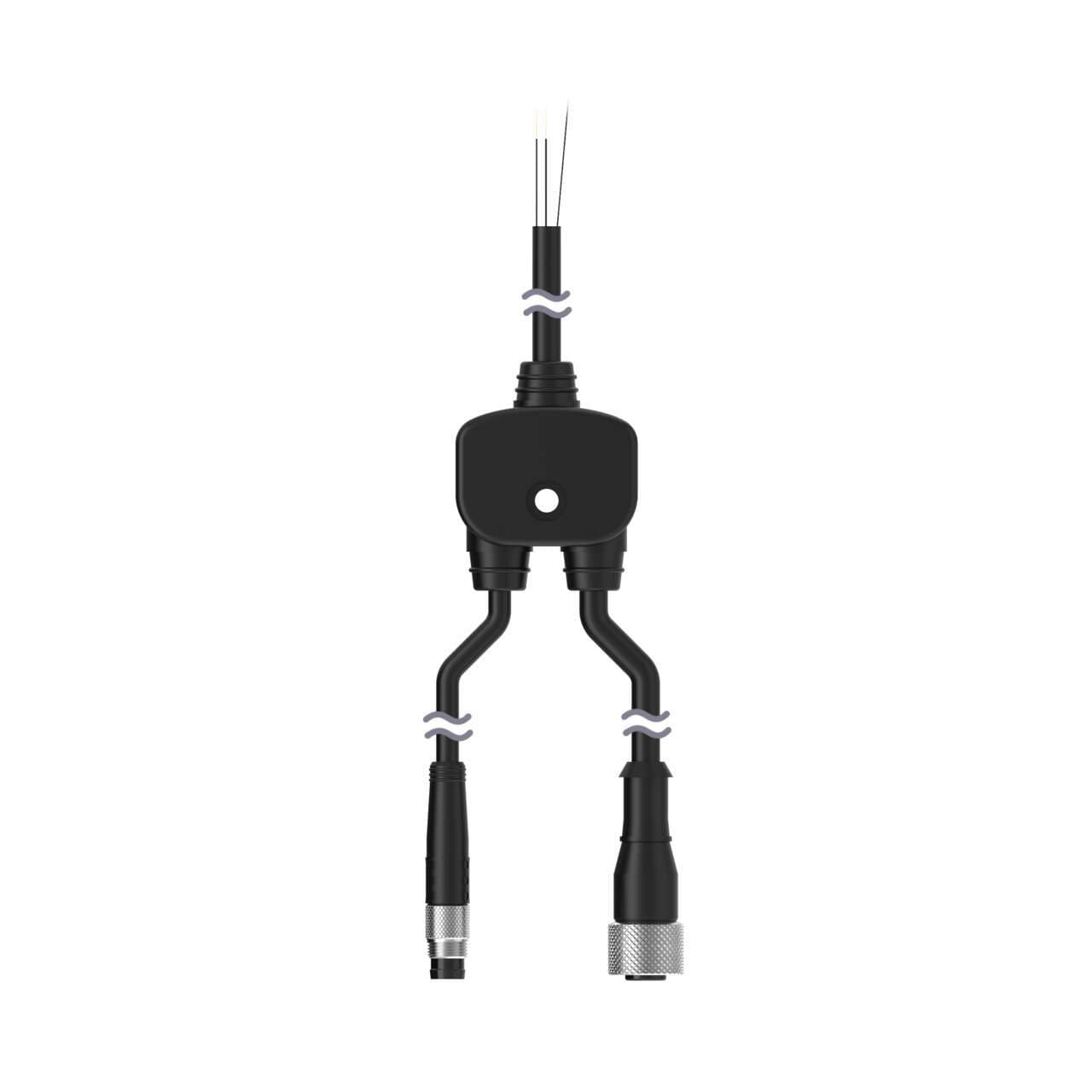

Banner Engineering CSB-UNT213M831F1241 is a Y-shaped shielded splitter cable designed for splitting connections in automation environments. It features a degree of protection of IP68, making it suitable for use in conditions where dust and moisture resistance is critical. The splitter includes a 3-core bare end flying leads 4m cable on the trunk, a 3-pin Euro-style M12 female connector on a 1ft / 30cm branch 1, and a 3-pin Pico-style M8 female connector on a 1ft / 30cm branch 2, facilitating versatile connectivity options.

Manufacturer warranty

$92.00

Request a quote, and we will send availability within minutes.

Select Qty:

$92.00

$92.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
