CSB-M1288M1281 Banner Splitters

CSB-M1288M1281 on Powermatic Associates
Banner

Part#:CSB-M1288M1281

Manufacturer:Banner

Alt. Part#:73253

Product Lifecycle:Active

Get a quick Quote!

M12 QD Splitter Cable; 8-pin Double-ended with 0.3 Female Branches and; Male Rotatable Trunk Connector; 2.5 m Trunk Length; 8X22 GA 8 ft Trunk 1 ft Branch

About the manufacturer: Banner is one of the manufacturers that offers Splitters that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the CSB-M1288M1281 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    208.65232 g
  • Country Of Origin
    TW
  • Splitter Function
    Parallel
  • Feature: Hazardous Area
    No
  • Splitter Branches Length (m)
    0.3, 0.3
  • Oil/Grease Resistant
    No
  • Splitter Cable Diameter
    6, 6
  • Splitter Branches: Coupling Method
    M12 Single Key, M12 Single Key
  • Splitter Branches: AWG
    22, 22
  • Splitter Branches: Orientation
    Straight, Straight
  • Splitter Branches: Number of Conductors
    8, 8
  • Primary AWG
    22
  • Splitter Branches: Connector Type
    M12F, M12F
  • Primary Number of Conductors
    8
  • Primary Gender
    Male
  • Primary Orientation
    Straight
  • Primary Coupling Method
    M12 Single Key
  • Primary Connector Type
    EURO
  • IP Rating
    IP68
  • Maximum Temp. (°C)
    105
  • Coupling Material/Color
    Nickel Plated Brass
  • Voltage Rating (V)
    60 V ac/75 V dc
  • Current Rating (A)
    2.0
  • Minimum Temp. (°C)
    -40
  • Cable Jacket Color
    Yellow
  • Shield/No Shield
    No Shield
  • Trunk Length (m)
    2.5
  • Connector Body Material/Color
    PUR Black
  • Cable Jacket Material
    PVC
  • Number of Contacts
    8
  • Number of Connectors
    3
  • Cordset Length (m)
    2.8
  • Outside Cable Diameter (mm)
    6

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.


CSB-M1288M1281 Description

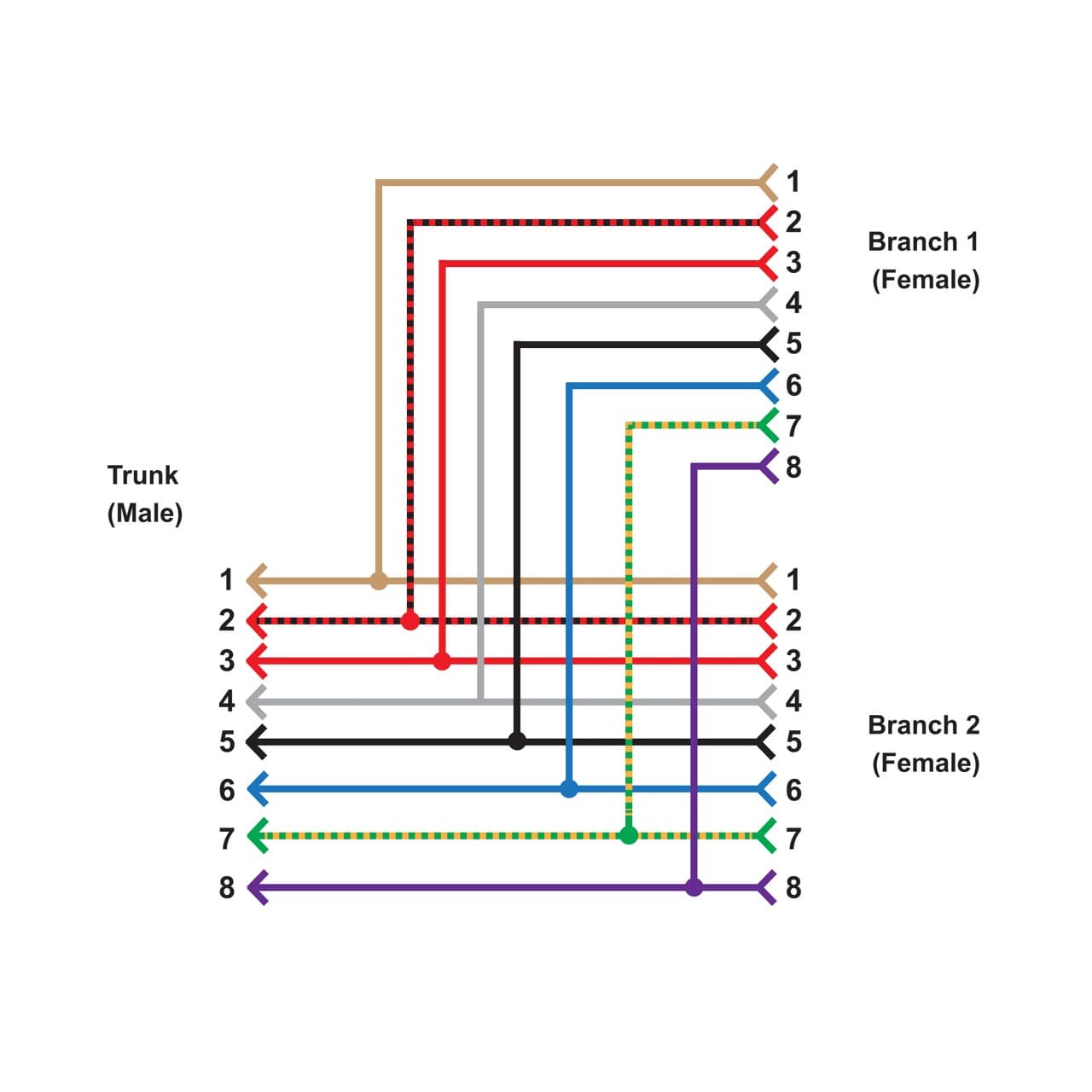

Banner Engineering CSB-M1288M1281 is a Y-shaped splitter cable designed for splitting connections within automation systems. It features an 8-pin rotatable Euro-style M12 male connector on an 8ft / 2.5m trunk and two 8-pin Euro-style M12 female connectors on 1ft / 30cm branches. This configuration allows for flexible connectivity options in various industrial applications.


Manufacturer warranty

$97.00

Request a quote, and we will send availability within minutes.

Select Qty:

$97.00

$97.00 each

Average response time: 11 minutes
