CSB-M1281M1281 Banner Splitters

Name: CSB-M1281M1281
Brand: Banner
Price: 87 USD
Availability: BackOrder

Part#:CSB-M1281M1281

Manufacturer:Banner

Alt. Part#:73252

Product Lifecycle:Active

Get a quick Quote!

M12 QD Splitter Cable; 8-pin Double-ended with 0.3 Female Branches and; Male Rotatable Trunk Connector; 0.3 m Trunk Length; 8X22 GA 1 ft Trunk 1 ft Branch

About the manufacturer: Banner is one of the manufacturers that offers Splitters that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the CSB-M1281M1281 Banner price in the box on the right side or send a quick quote.

Product Details

Weight
99.79024 g
Country Of Origin
TW
Splitter Branches Length (m)
0.3, 0.3
Oil/Grease Resistant
No
Feature: Hazardous Area
No
Splitter Function
Parallel
Splitter Branches: AWG
22, 22
Splitter Branches: Number of Conductors
8, 8
Splitter Branches: Coupling Method
M12 Single Key, M12 Single Key
Splitter Branches: Orientation
Straight, Straight
Splitter Branches: Connector Type
M12F, M12F
Primary Number of Conductors
8
IP Rating
IP67
Primary AWG
22
Splitter Cable Diameter
5.5, 5.5
Primary Gender
Male
Primary Orientation
Straight
Primary Connector Type
EURO
Primary Coupling Method
M12 Single Key
Voltage Rating (V)
250 V ac/300 V dc

Minimum Temp. (°C)

-40

Current Rating (A)

4.0

Maximum Temp. (°C)

105

Shield/No Shield

No Shield

Coupling Material/Color

Nickel Plated Brass

Number of Contacts

Trunk Length (m)

0.3

Cordset Length (m)

0.6

Cable Jacket Material

PVC

Connector Body Material/Color

PUR Black

Number of Connectors

Outside Cable Diameter (mm)

5.5

Cable Jacket Color

Yellow

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

CSB-M1281M1281 Description

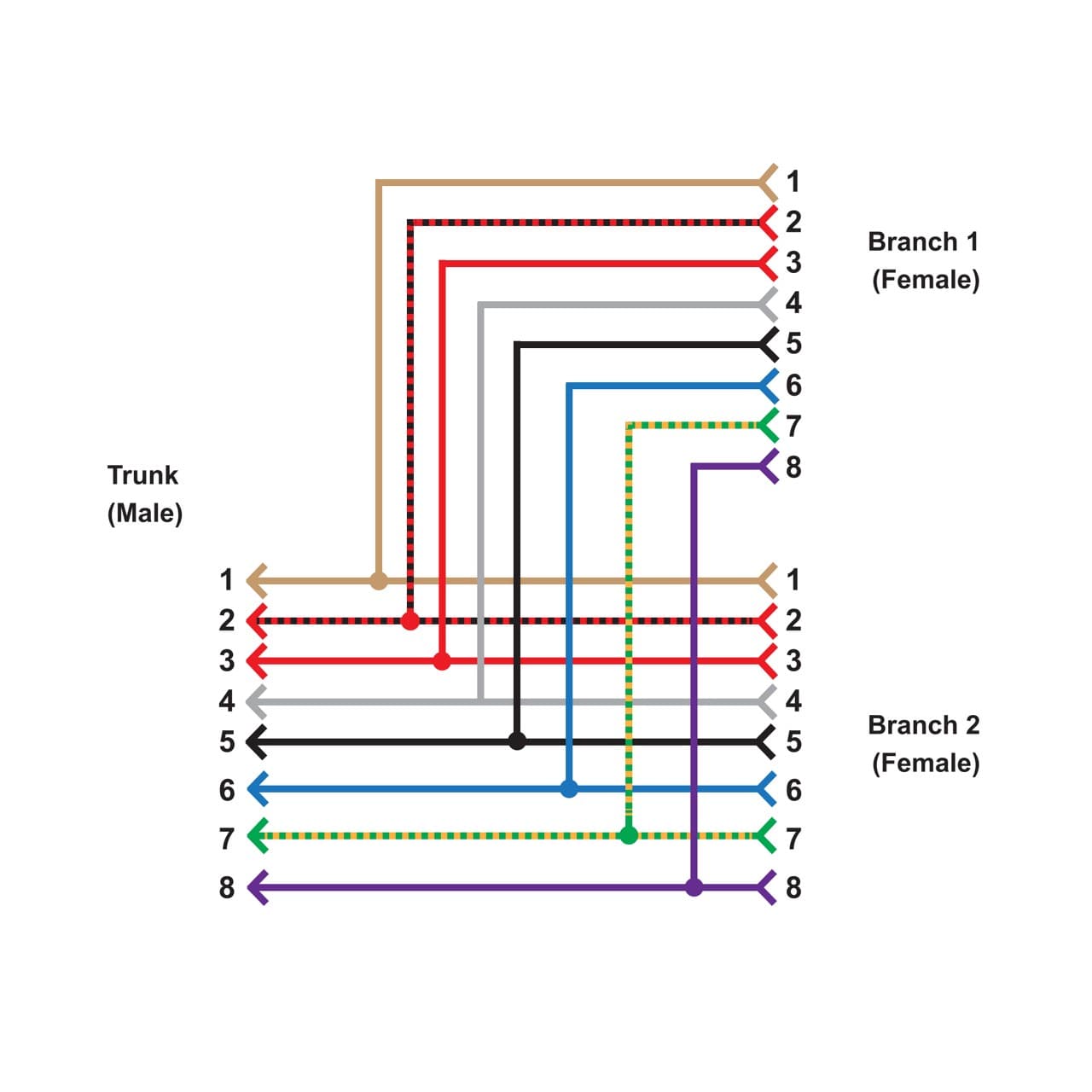

Banner Engineering CSB-M1281M1281 is a Y-shaped splitter cable designed for splitting a single signal into two paths. It features an 8-pin rotatable Euro-style M12 male connector on a 1ft / 30cm trunk and two 8-pin Euro-style M12 female connectors on 1ft / 30cm branches 1 & 2, facilitating versatile connection options in automation environments.

Manufacturer warranty

$87.00

Request a quote, and we will send availability within minutes.

Select Qty:

$87.00

$87.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery
