CSB-M12815M1281 Banner Splitters

CSB-M12815M1281 on Powermatic Associates
Banner
  • CSB-M12815M1281
  • CSB-M12815M1281

Part#:CSB-M12815M1281

Alt. Part#:73254

Manufacturer:Banner

Category:Splitters

Product Lifecycle:Active

Product description

M12 QD Splitter Cordset; 8-pin Male Straight Trunk; 4.6 M (15 ft); 8-pin Female Straight Branches (2); 0.3 m (1 ft); Black PUR Splitter Junction; Yellow PVC Cable Jacket

Product Details

  • Weight
    353.80176 g
  • Country Of Origin
    TW
  • Oil/Grease Resistant
    No
  • Splitter Branches Length (m)
    0.3, 0.3
  • Splitter Function
    Parallel
  • Feature: Hazardous Area
    No
  • Splitter Branches: Orientation
    Straight, Straight
  • Splitter Branches: AWG
    22, 22
  • Splitter Branches: Number of Conductors
    8, 8
  • Splitter Branches: Coupling Method
    M12 Single Key, M12 Single Key
  • Splitter Branches: Connector Type
    M12F, M12F
  • Splitter Cable Diameter
    5.5, 5.5
  • Primary Number of Conductors
    8
  • Primary AWG
    22
  • Primary Orientation
    Straight
  • Primary Gender
    Male
  • Primary Coupling Method
    M12 Single Key
  • Current Rating (A)
    4.0
  • Primary Connector Type
    EURO
  • Maximum Temp. (°C)
    105
  • Minimum Temp. (°C)
    -40
  • IP Rating
    IP67
  • Shield/No Shield
    No Shield
  • Coupling Material/Color
    Nickel Plated Brass
  • Voltage Rating (V)
    250 V ac/300 V dc
  • Number of Contacts
    8
  • Number of Connectors
    3
  • Outside Cable Diameter (mm)
    5.5
  • Trunk Length (m)
    4.6
  • Cable Jacket Material
    PVC
  • Connector Body Material/Color
    PUR Black
  • Cable Jacket Color
    Yellow
  • Cordset Length (m)
    4.9

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of CSB-M12815M1281 on Powermatic Associates is $100.00. Order now.

About the product

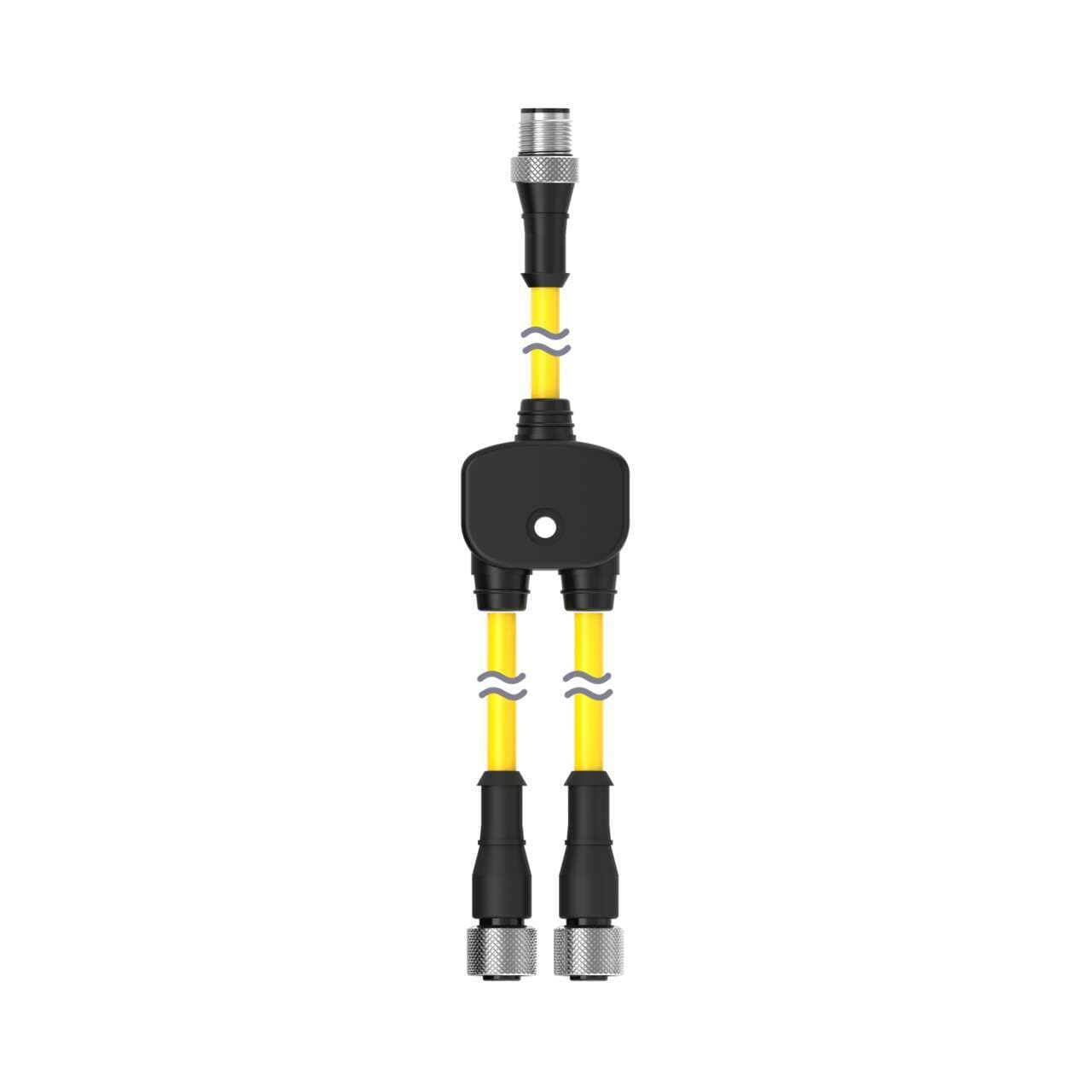

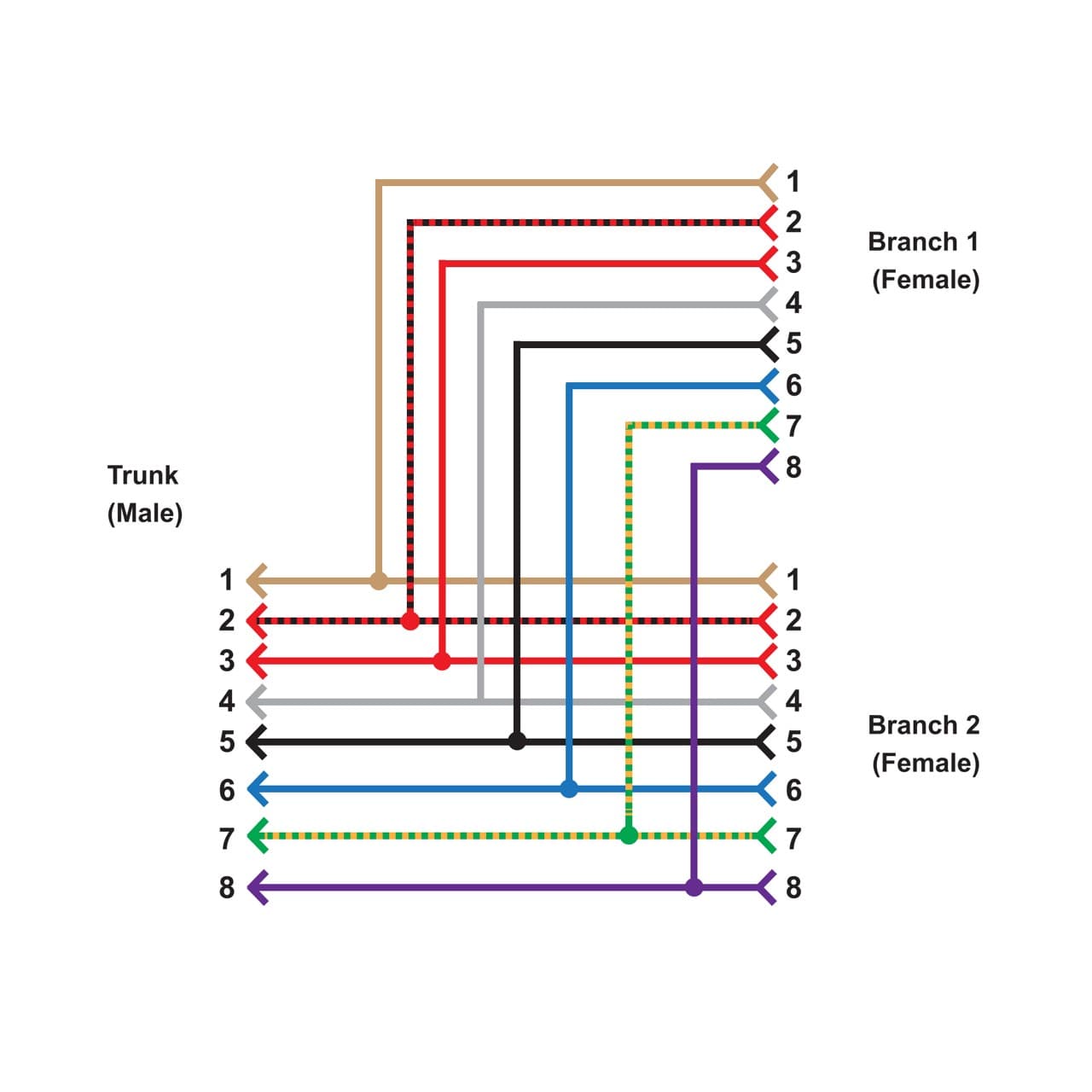

Banner Engineering CSB-M12815M1281 is a Y-shaped splitter cable designed for splitting a single signal into two paths. It features an 8-pin Euro-style M12 male quick disconnect (QD) connector on a 15-foot (4.6 meters) trunk. The splitter branches into two 1-foot (30 centimeters) sections, each ending with an 8-pin Euro-style M12 female connector, facilitating connections on branches 1 and 2.

Manufacturer warranty

CSB-M12815M1281 Banner

$100.00

Your price can be lower.
Log in or Create account to check your discount

Select Qty:

$100.00

$100.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
