CSB-M1250M1250 Banner Splitters
Part#:CSB-M1250M1250
Manufacturer:Banner
Alt. Part#:803434
Product Lifecycle:Active
Get a quick Quote!

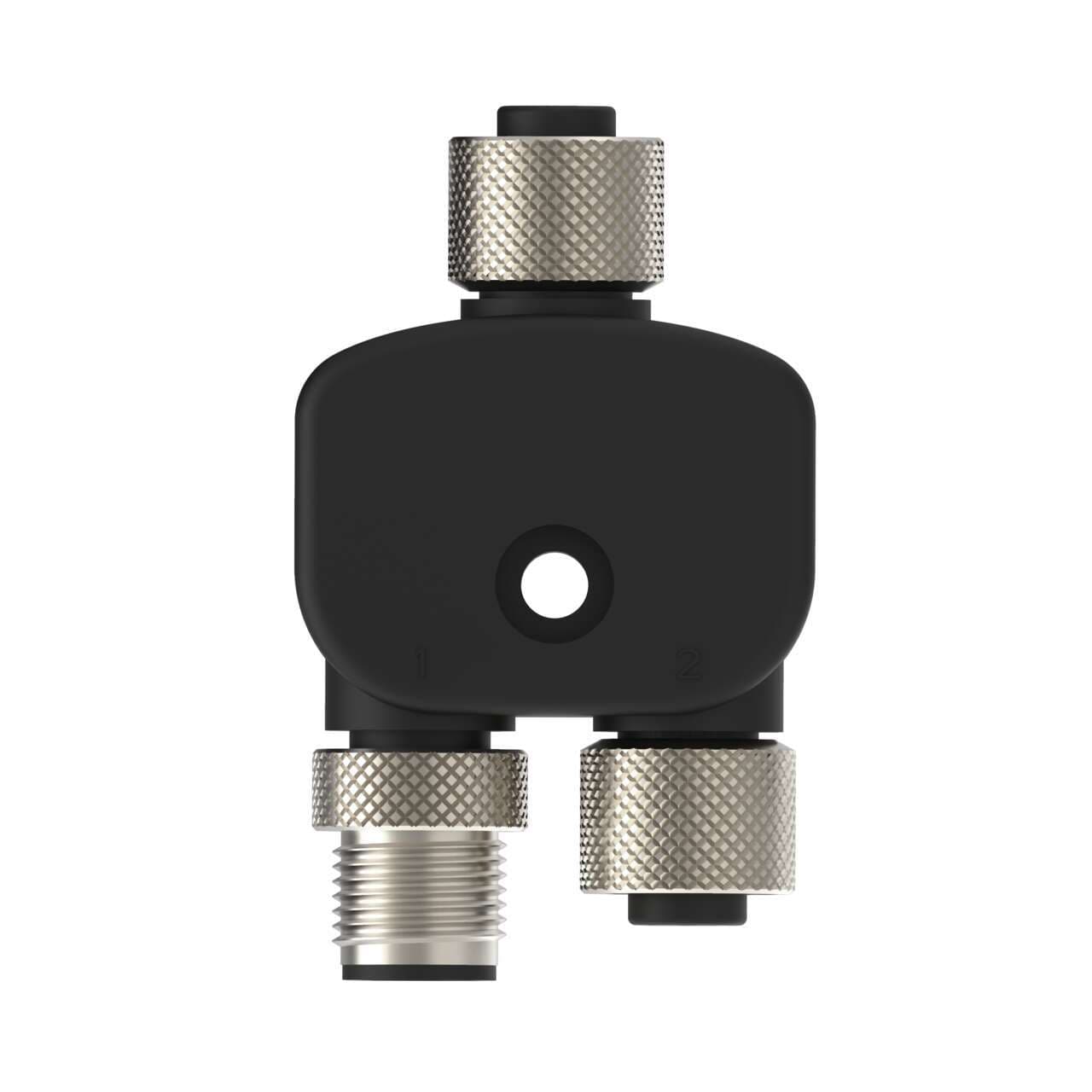

M12 QD Splitter Connector; 5-pin Female Trunk Straight; 5-pin Female Straight Branch (1); 5-pin Male Straight Branch(1); Black PUR Splitter Junction Cable
About the manufacturer: Banner is one of the manufacturers that offers Splitters that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the CSB-M1250M1250 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight 36.28736 g
- Country Of Origin TW
- Oil/Grease Resistant No
- Feature: Hazardous Area No
- Splitter Function Parallel
- Splitter Branches Length (m) 0, 0
- Splitter Branches: AWG 22, 22
- Splitter Branches: Number of Conductors 4, 4
- Splitter Branches: Coupling Method M12 Single Key, M12 Single Key
- Splitter Branches: Orientation Straight, Straight
- Splitter Branches: Connector Type M12F, M12F
- Primary Number of Conductors 5
- Primary AWG 22
- Primary Orientation Straight
- Primary Gender Male
- Primary Coupling Method M12 Single Key
- Minimum Temp. (°C) -40
- Voltage Rating (V) 250 V ac/300 V dc
- Primary Connector Type EURO
- IP Rating IP67
- Trunk Length (m) No Trunk
- Current Rating (A) 4.0
- Maximum Temp. (°C) 105
- Coupling Material/Color Nickel Plated Brass
- Shield/No Shield No Shield
- Number of Connectors 3
- Connector Body Material/Color PUR Black
- Number of Contacts 4
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
CSB-M1250M1250 Description

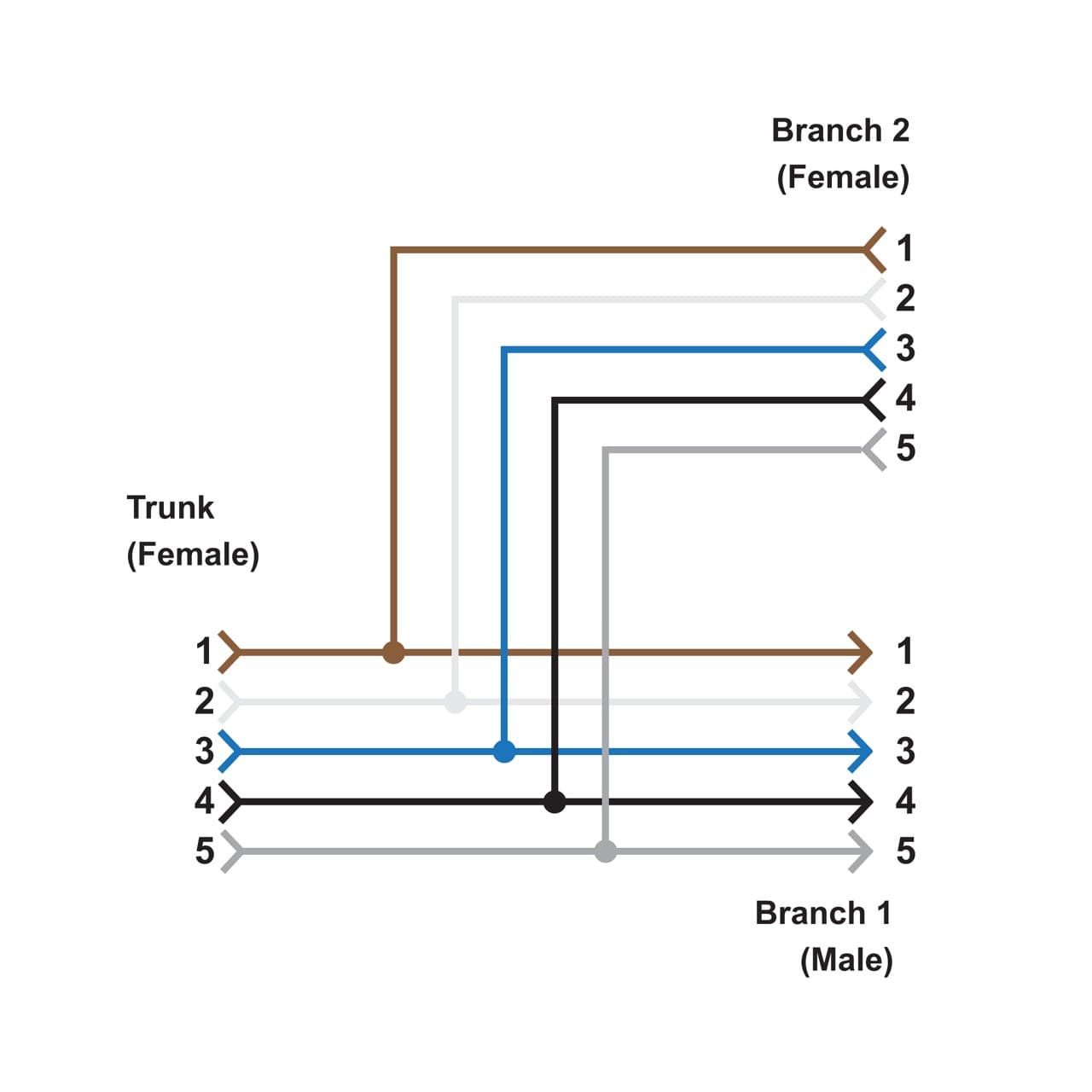

Banner Engineering CSB-M1250M1250 is a Y-shaped splitter connector designed for various automation applications. It features a 5-pin Euro-style M12 female quick disconnect (QD) connector on one end and splits into two branches, each with a 5-pin Euro-style M12 female connector and a 5-pin Euro-style M12 male connector, facilitating versatile connection configurations in automated systems.
