CSB-M1241M1241 Banner Splitters
Part#:CSB-M1241M1241
Manufacturer:Banner
Category:Splitters
Alt. Part#:75273
Product Lifecycle:Active
Get a quick Quote!
Splitter Cable; 4-pin M12 Male Trunk 0.3 m (1 ft); Two 4-pin M12 0.3 m (1 ft) Female Branches; Black
About the manufacturer: Banner is one of the manufacturers that offers Splitters that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the CSB-M1241M1241 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight 90.7184 g
- Country Of Origin TW
- Feature: Hazardous Area No
- Oil/Grease Resistant No
- Splitter Function Parallel
- Splitter Branches Length (m) 0.3, 0.3
- Splitter Branches: AWG 22, 22
- Splitter Branches: Number of Conductors 4, 4
- Splitter Branches: Orientation Straight, Straight
- Splitter Branches: Coupling Method M12 Single Key, M12 Single Key
- Splitter Branches: Connector Type M12F, M12F
- Primary AWG 22
- Splitter Cable Diameter 5.5, 5.5
- Primary Number of Conductors 4
- Primary Orientation Straight
- Primary Gender Male
- Primary Coupling Method M12 Single Key
- Primary Connector Type EURO
- IP Rating IP67
- Voltage Rating (V) 250 V ac/300 V dc
- Maximum Temp. (°C) 105
- Minimum Temp. (°C) -40
- Current Rating (A) 4.0
- Coupling Material/Color Nickel Plated Brass
- Number of Contacts 4
- Connector Body Material/Color PUR Black
- Trunk Length (m) 0.3
- Shield/No Shield No Shield
- Cordset Length (m) 0.6
- Outside Cable Diameter (mm) 5.5
- Cable Jacket Material PVC
- Cable Jacket Color Black
- Number of Connectors 3
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
CSB-M1241M1241 Description

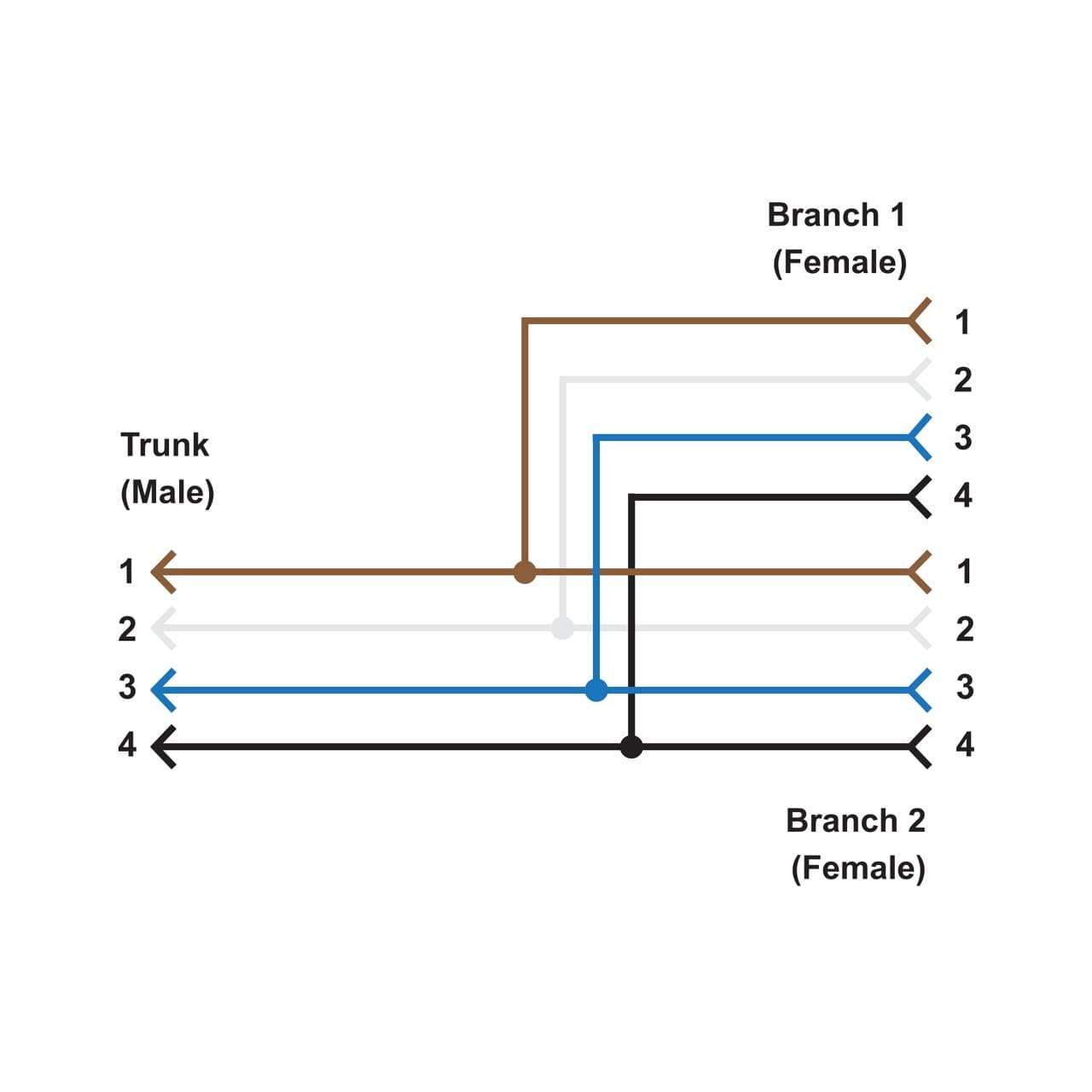

Banner Engineering CSB-M1241M1241 is a Y-shaped splitter cable designed for splitting a single signal into two. It features a 4-pin Euro-style M12 male connector on a 1ft / 30cm trunk and two 4-pin Euro-style M12 female connectors on 1ft / 30cm branches 1 & 2, facilitating the connection and distribution of signals in automation systems.
