CSB-M1240M1280 Banner Splitters
Part#:CSB-M1240M1280
Manufacturer:Banner
Alt. Part#:17959
Product Lifecycle:Active
Get a quick Quote!
Splitter M12F to M12F and M12M connectors; 8-pin, Non-Shielded, IP67, AWG 22; Black PUR Cord, Straight Connectors; Splitter Length: 0 m
About the manufacturer: Banner is one of the manufacturers that offers Splitters that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the CSB-M1240M1280 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight 45.3592 g
- Country Of Origin TW
- Feature: Hazardous Area No
- Splitter Branches: AWG 22, 22
- Splitter Function Parallel
- Splitter Branches Length (m) 0, 0
- Oil/Grease Resistant No
- Splitter Branches: Orientation Straight, Straight
- Splitter Branches: Coupling Method M12 Single Key, M12 Single Key
- Splitter Branches: Connector Type M12F, M12M
- Splitter Branches: Number of Conductors 8, 4
- Secondary Gender Male
- Secondary Number of Conductors 8
- Primary Number of Conductors 8
- Secondary Orientation Straight
- Primary AWG 22
- Secondary Connector Type EURO
- Secondary Coupling Method M12 Single Key
- Primary Coupling Method M12 Single Key
- Primary Gender Female
- Primary Connector Type EURO
- IP Rating IP67
- Number of Contacts 8
- Minimum Temp. (°C) -40
- Voltage Rating (V) 60 V ac/75 V dc
- Primary Orientation Straight
- Connector Body Material/Color PUR Black
- Shield/No Shield No Shield
- Maximum Temp. (°C) 105
- Number of Connectors 3
- Coupling Material/Color Nickel Plated Brass
- Trunk Length (m) No Trunk
- Current Rating (A) 2.0
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
CSB-M1240M1280 Description

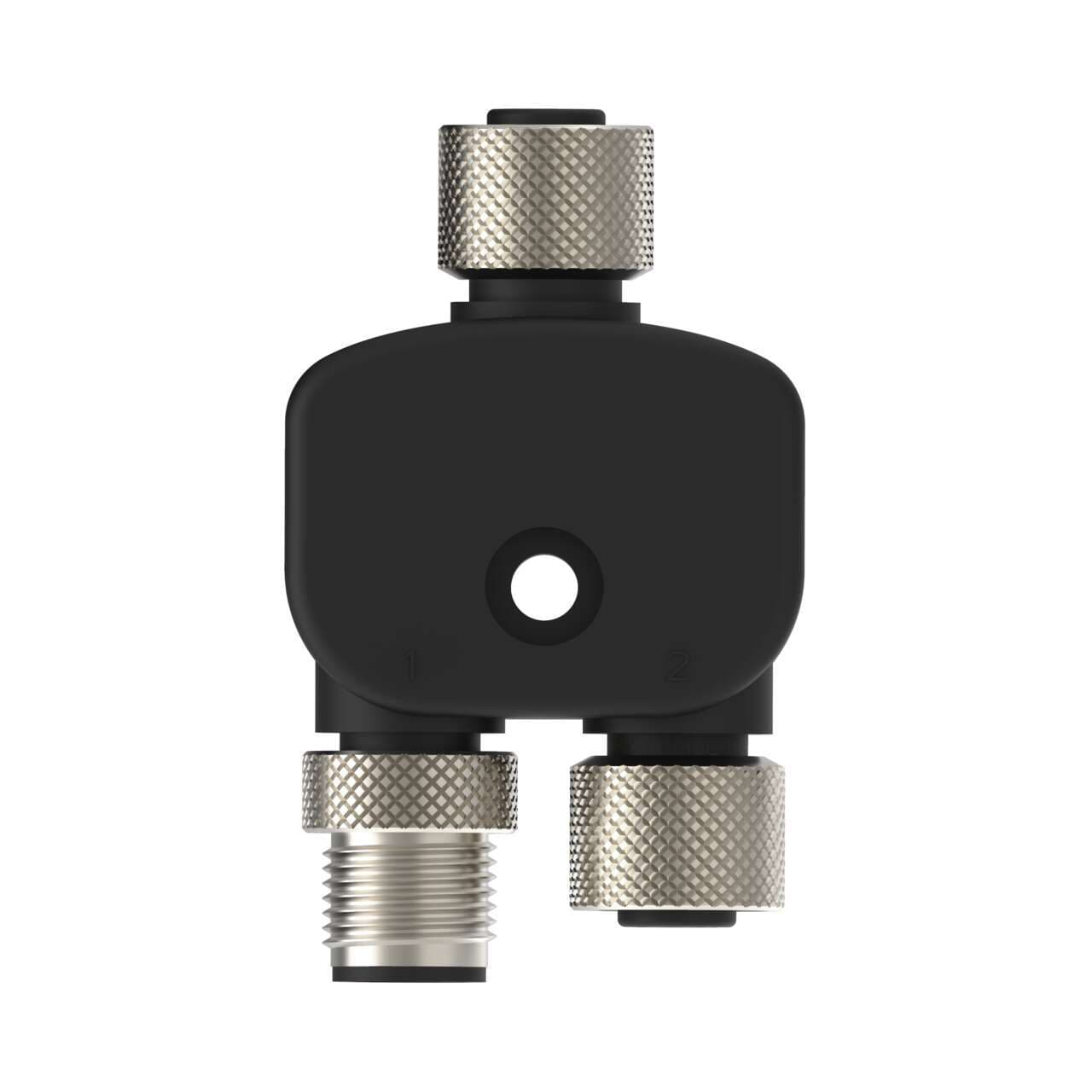

Banner Engineering CSB-M1240M1280 is a Y-shaped splitter connector designed for automation applications. It features a polyurethane (PUR) cable and operates within an ambient air temperature range of -40 to +105°C. This part is equipped with an 8-pin Euro-style M12 female connector on the trunk, an 8-pin Euro-style M12 female connector on branch 1, and an 8-pin Euro-style M12 male connector on branch 2, ensuring versatile connectivity options. The CSB-M1240M1280 offers a degree of protection rated at IP67, making it suitable for use in environments where dust and water resistance are necessary. It supports a rated voltage of 60Vac and 75Vdc, and comes in a black housing.
