CSB-M1240M1241 Banner Splitters
Part#:CSB-M1240M1241
Manufacturer:Banner
Alt. Part#:75286
Product Lifecycle:Active
Get a quick Quote!

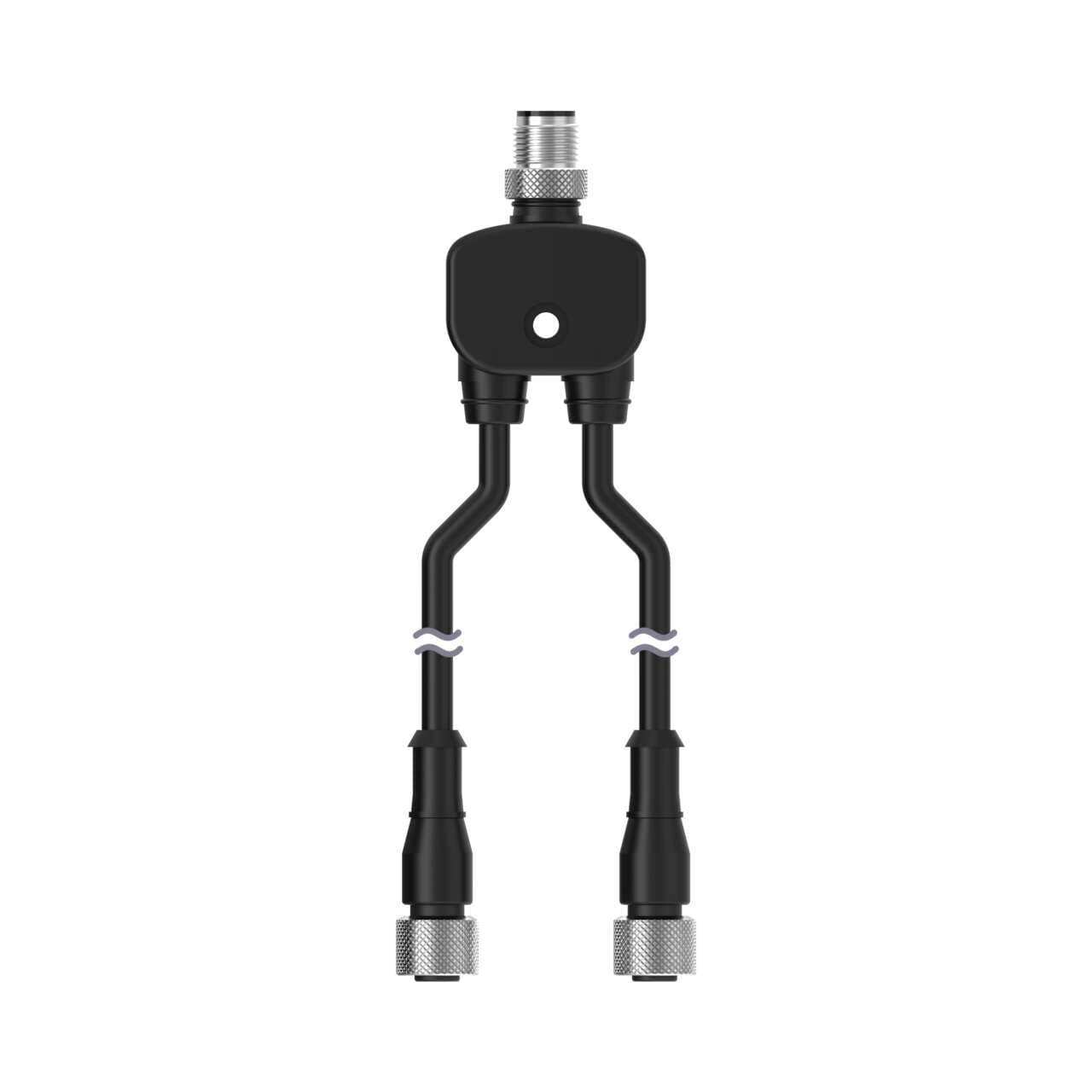

Splitter Cable; 4-pin M12 male trunk; Two 4-pin M12 0.3 m female branches; yellow
About the manufacturer: Banner is one of the manufacturers that offers Splitters that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the CSB-M1240M1241 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight 70.1253232 g
- Country Of Origin TW
- Feature: Hazardous Area No
- Splitter Branches Length (m) 0.3, 0.3
- Oil/Grease Resistant No
- Splitter Branches: AWG 22, 22
- Splitter Function Parallel
- Splitter Branches: Number of Conductors 4, 4
- Splitter Branches: Connector Type M12F, M12F
- Splitter Branches: Orientation Straight, Straight
- Splitter Branches: Coupling Method M12 Single Key, M12 Single Key
- Primary Gender Male
- Splitter Cable Diameter 5.5, 5.5
- Primary Number of Conductors 4
- Primary AWG 22
- Primary Orientation Straight
- Primary Coupling Method M12 Single Key
- Voltage Rating (V) 250 V ac/300 V dc
- IP Rating IP67
- Primary Connector Type EURO
- Maximum Temp. (°C) 105
- Minimum Temp. (°C) -40
- Current Rating (A) 4.0
- Coupling Material/Color Nickel Plated Brass
- Shield/No Shield No Shield
- Cable Jacket Material PVC
- Number of Connectors 3
- Cordset Length (m) 0.3
- Trunk Length (m) 0.3
- Cable Jacket Color Black
- Outside Cable Diameter (mm) 5.5
- Connector Body Material/Color PUR Black
- Number of Contacts 4
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
CSB-M1240M1241 Description

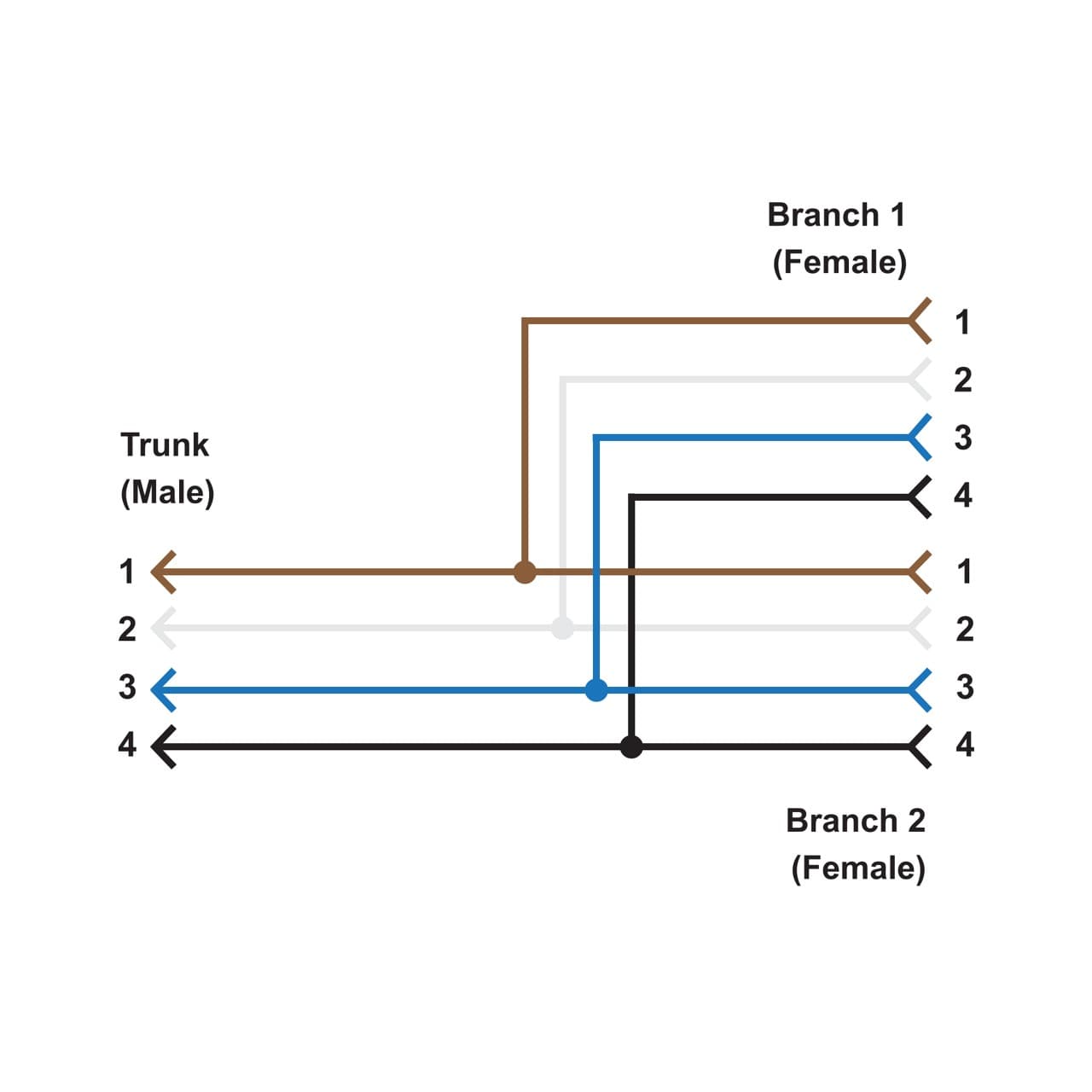

Banner Engineering CSB-M1240M1241 is a Y-shaped splitter cable designed to facilitate the distribution of signals or power from a single 4-pin Euro-style M12 male connector trunk to two separate devices via its 2 x 4-pin Euro-style M12 connectors located on 1ft / 30cm branches 1 & 2.
