CL50YXXP Banner Signal Towers
Part#:CL50YXXP
Manufacturer:Banner
Alt. Part#:18987
Product Lifecycle:Active
Get a quick Quote!
Column Light: 1-Color Indicator; Voltage: 18-30 V dc; Environ. Rating: IP67; Input: PNP; Colors: Yellow; 2 m (6.5 ft) Integral Cable
About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the CL50YXXP Banner price in the box on the right side or send a quick quote.
Product Details
- Weight 181.4368 g
- Country Of Origin MX
- Pro-Editor Compatible (Discrete) No
- Modbus RTU No
- Wireless No
- Feature: Chemical Resistant No
- NEMA Type and UL Type Rating NEMA and UL 13
- Input Type PNP
- IO Link No
- Feature: Quick Disconnect No
- Max Op. Temperature (°C) 50
- Primary Window Material Polycarbonate Diffused
- Feature: Hazardous Area No
- Feature: Audible No
- Max Op. Relative Humidity Non-Condensing (%) 95% @ 50°C
- Primary Housing Color Black
- Min Op. Temperature (°C) -40
- Max Input Response Time (ms) 10
- Environmental Rating IP67
- Supply Voltage 18-30 V dc
- Number of Input Pins/Conductors 4
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 114.2
- Max Current Color (mA) 100
- Color Option 1 Yellow
- Connection Cable
- Color 1 - Wavelength/Color Temp/Coordinates 590 nm
- Lumens Color 1 30.0
- Color Technology Standard LED
- Animation Option 1 Solid On
- Product Size (mm) 50
- Number of Colors / Segments 1
- Indication Yes
- Housing Style Base Mount - Tower
- Power Source DC
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Mounting Thread M30 x 1.5
- Power DC
- Primary Housing Material ABS/Polycarbonate
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
CL50YXXP Description

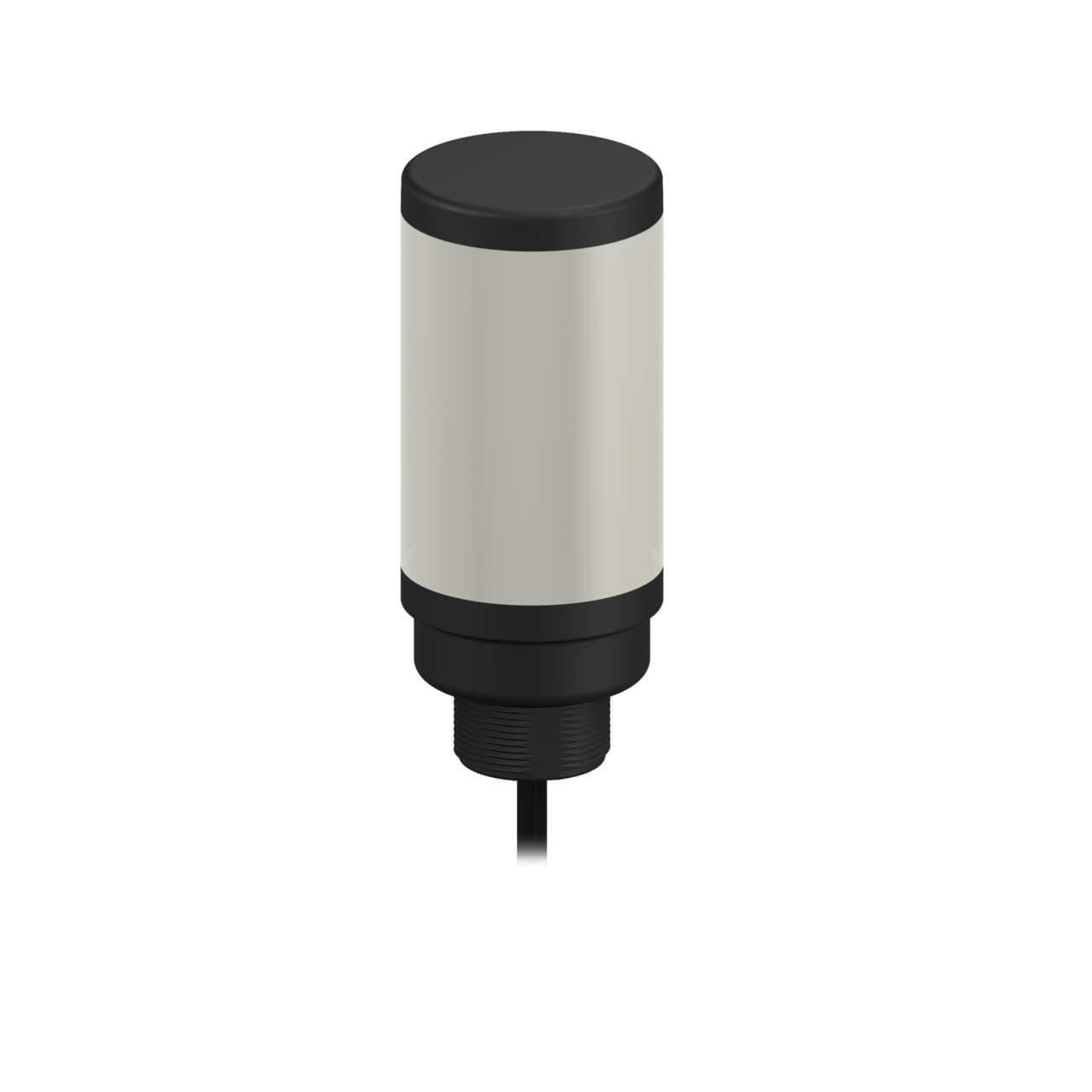

Banner Engineering CL50YXXP is a beacon designed for versatile mounting options, including surface or base pole with M30 or 1/2" NPSM thread. It features a polycarbonate diffused window and an ABS/polycarbonate housing and base, ensuring durability. This beacon operates within an ambient air temperature range of -40°C to +50°C and consumes 100mA of current. It offers a high degree of protection with an IP67, NEMA 13, UL type 13 rating, making it suitable for challenging environments. The cylindrical shape and 1-tier, 1-color yellow LED illumination are designed for clear signaling. It includes 1 x digital input (18-30Vdc; PNP) for color control. The CL50YXXP is pre-wired with a 2m / 6.5ft 4-wire cable terminated with bare end flying leads, supporting a supply voltage of 18Vdc-30Vdc (24Vdc nom.). The beacon has a diameter of 50mm / 2" and features a black housing.
