CL50GRYPQP Banner Signal Towers
Part#:CL50GRYPQP
Manufacturer:Banner
Alt. Part#:10500
Product Lifecycle:Active
Get a quick Quote!
Column Light: 3-Color Indicator; Voltage: 18-30 V dc; Environ. Rating: IP67; Input: PNP; Colors: Green Red Yellow; 150 mm (6 in) 4-pin M12 PVC Pigtail QD
About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the CL50GRYPQP Banner price in the box on the right side or send a quick quote.
Product Details
- Weight 204.1164 g
- Country Of Origin MX
- IO Link No
- Pro-Editor Compatible (Discrete) No
- Wireless No
- Modbus RTU No
- Feature: Audible No
- Multi-Color Device Single Color On
- Feature: Chemical Resistant No
- Feature: Hazardous Area No
- Feature: Quick Disconnect Yes
- Primary Window Material Polycarbonate Diffused
- Primary Housing Color Black
- Max Op. Relative Humidity Non-Condensing (%) 95% @ 50°C
- Min Op. Temperature (°C) -40
- Max Op. Temperature (°C) 50
- NEMA Type and UL Type Rating NEMA and UL 13
- Environmental Rating IP67
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 114.2
- Input Type PNP
- Max Input Response Time (ms) 10
- Supply Voltage 18-30 V dc
- Number of Input Pins/Conductors 4
- Max Current Color (mA) 100
- Color 3 - Wavelength/Color Temp/Coordinates 590 nm
- Animation Option 3 Solid On
- Lumens Color 3 30.0
- Color Option 3 Yellow
- Color 2 - Wavelength/Color Temp/Coordinates 625 nm
- Lumens Color 2 38.0
- Animation Option 2 Solid On
- Color Option 2 Red
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Lumens Color 1 72.0
- Quick Disconnect Type M12 (Euro)
- Animation Option 1 Solid On
- Color Option 1 Green
- Product Size (mm) 50
- Color Technology Standard LED
- Connection Pigtail QD
- Power DC
- Housing Style Base Mount - Tower
- Primary Housing Material ABS/Polycarbonate
- Mounting Thread M30 x 1.5
- Number of Colors / Segments 3
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Power Source DC
- Cable Length (m) 0.15
- Indication Yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
CL50GRYPQP Description

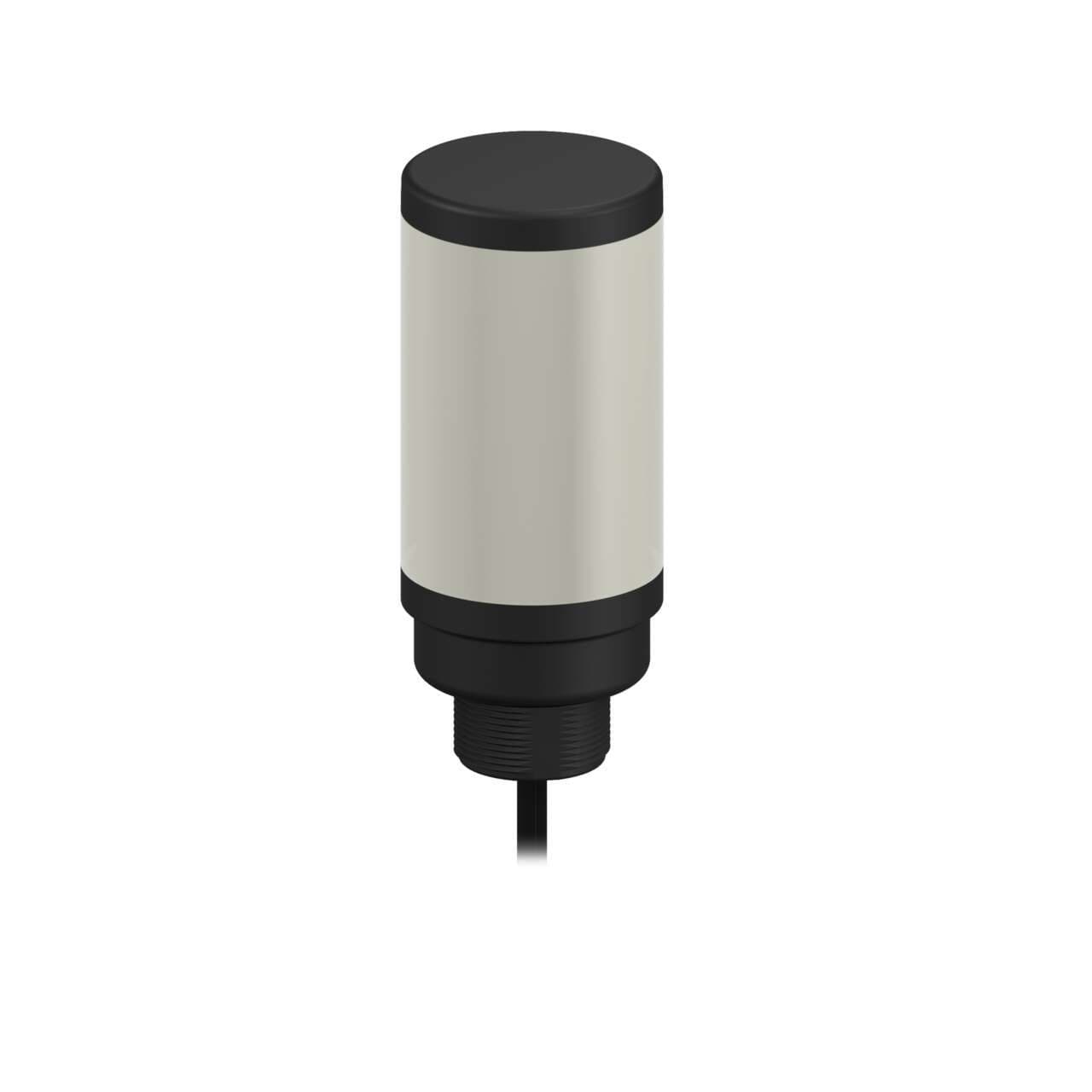

Banner Engineering CL50GRYPQP is a beacon designed for surface or base pole mounting with an M30 or 1/2" NPSM thread. It features a polycarbonate diffused window and an ABS/polycarbonate housing and base, suitable for ambient air temperatures ranging from -40°C to +50°C. This beacon consumes 100mA of current and offers a degree of protection rated at IP67, NEMA 13, UL type 13. Its cylindrical shape incorporates a 1-tier, 3-color G/R/Y color pattern LED illumination, controlled by 3 digital inputs (18-30Vdc; PNP). The CL50GRYPQP is pre-wired with a 6" / 15cm pigtail terminated with a 4-pin M12 Euro-style QD connector, operates on a supply voltage of 18Vdc-30Vdc (24Vdc nom.), and has a diameter of 50mm / 2". The housing is black.
