Powermatic Associates Logo

BTA23S Banner Fiber Optic Sensors

BTA23S on Powermatic Associates
Banner
  • BTA23S
  • BTA23S

Part#:BTA23S

Alt. Part#:20008

Manufacturer:Banner

Category:Fiber Optic Sensors

Product Lifecycle:Active

Product description

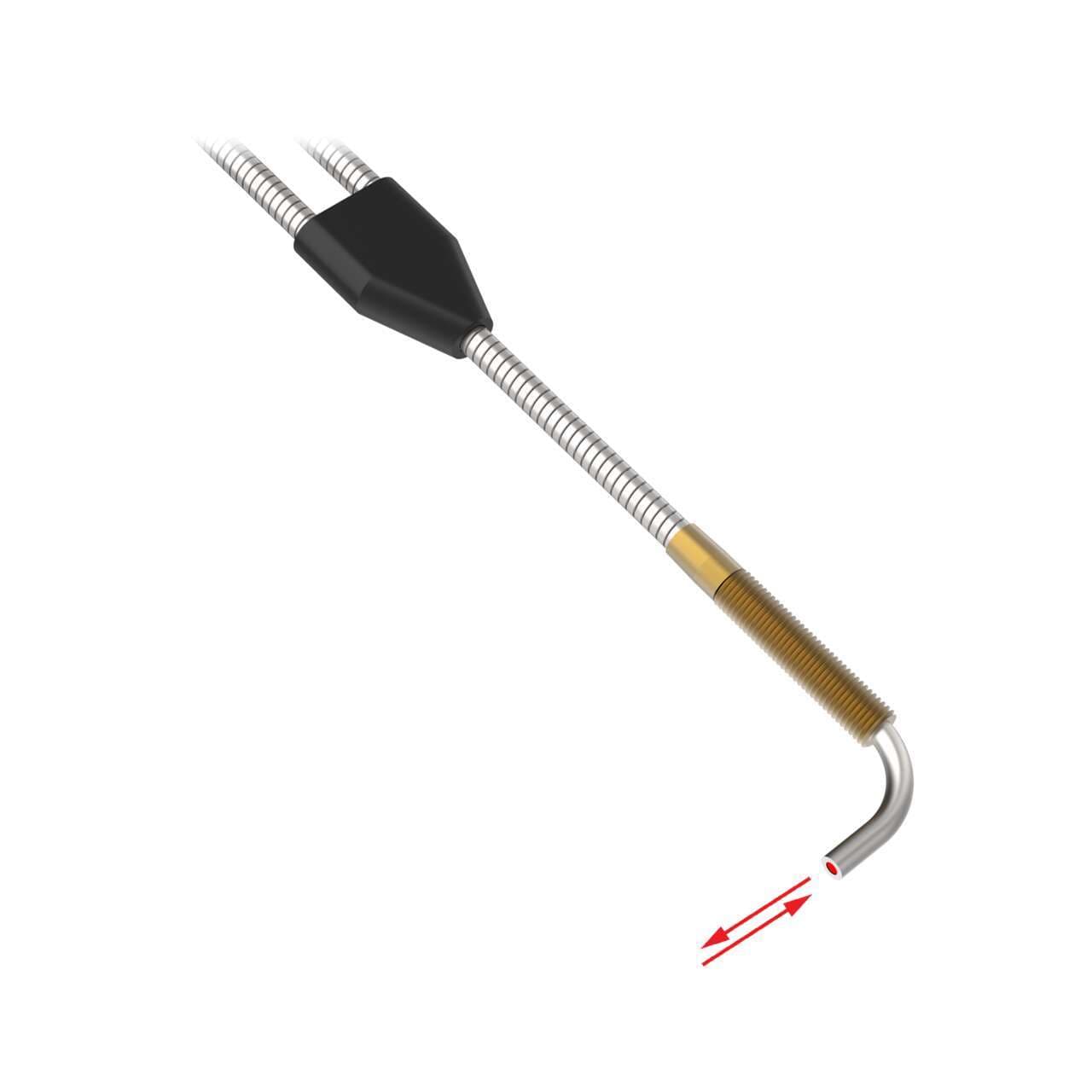

Diffuse Mode Bifurcated Glass Fiber 36 long; 0.125 dia. Bundle; Stainless Steel Sheath; Threaded & angled sensing tip

Product Details

  • Weight
    137.438376 g
  • Country Of Origin
    US
  • Measured Max Distance (mm)
    No Data
  • Max Distance: DF-G2 (mm)
    No Data
  • Max Distance: DF-G3 (mm)
    No Data
  • Fiber Sensing End Size - Mounting Area
    #5/16-24 thread
  • Max Distance: DF-G1 (mm)
    No Data
  • Tariff Fiber Meters (fbm)
    3110.34
  • Integrated Lens
    No
  • Termination Type
    Glass Fiber Sensors
  • Feature: Small Object Detection
    No
  • Feature: Extended Range
    No
  • Max Temp ( °C)
    249
  • Feature: Chemical Resistant
    No
  • Termination
    Terminated
  • Sensing End Segment 2
    Angle
  • Core Diameter (mm)
    3.2
  • Minimum Bend Radius (mm)
    25
  • Retractile
    No
  • Flex Relief
    No
  • Fiber Length (m)
    0.914
  • Quantity Included
    1
  • Sensing Mode (General)
    Diffuse
  • Sensing Mode (Detailed)
    Reflective
  • Beam Exit
    Right Angle
  • Sensing End Material (Specific)
    Stainless Steel
  • Fiber Optic Type
    Glass
  • Housing Style
    Round
  • Application: Vacuum Feed Through
    None
  • Application: Liquid Level
    No
  • Sensing End Segment 1
    Thread
  • Fiber Sensing End Size
    4.8 mm
  • Fiber Sheathing Material (Jacket)
    Stainless Steel Monocoil
  • Fiber Sensing End Tip
    Angle

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of BTA23S on Powermatic Associates is $226.00. Order now.

About the product

Banner Engineering BTA23S is a fiber sensor belonging to the Glass fiber series, designed with a diffuse-reflective system. It features a flexible, bifurcated fiber with side/right-angled sensing for versatile installation options. The sensing end is made of stainless steel, while the fiber itself is encased in stainless flexible tubing with a glass fiber sheath, ensuring durability and protection. The fiber core has a diameter of 3.2mm and is shaped with a cylindrical (threaded) end tip for secure mounting. This sensor has a length of 3ft / 910mm and is capable of operating in ambient air temperatures up to +249°C.

BTA23S Related Documents

BTA2 SERIES SS TERMINATED-1630954960383.pdfBTA2 SERIES SS TERMINATED-1630954960385.stp
