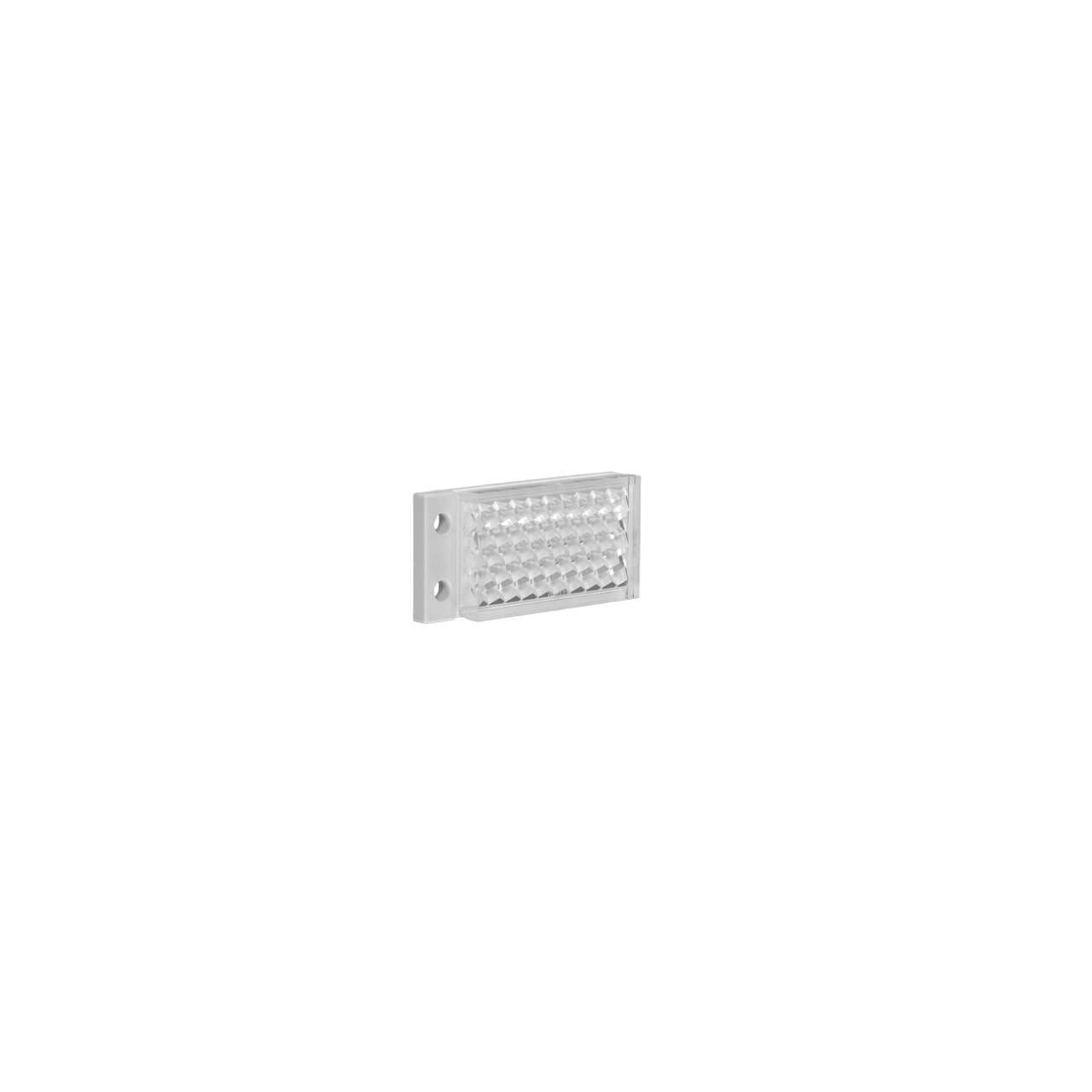

Name: BRT-40X23B
Brand: Banner
Price: 12 USD
Availability: BackOrder

LC1D115BD

Schneider Electric LC1D115BD is a magnetic contactor from the Deca sub-range, designed with screw connections and three poles (3P; 3NO). It features a rated current of 200A for AC-1 and 115A for 440Vac in AC-3 conditions. This contactor is suitable for DIN rail mounting and has a net width of 120 mm. It offers a degree of protection rated at IP20 and operates with a control voltage (DC) range of 18-28.8Vdc, with a nominal 24Vdc. The rated operating voltage (Ue) is up to 1000 V, and it includes 1 normally open (NO) auxiliary contact. The rated impulse voltage (Uimp) is 8 kV. Its rated active power capacity spans from 30kW at 220-230Vac to 80kW at 660-690Vac in AC-3 conditions, with additional ratings for specific voltages. It also features 1 normally closed (NC) auxiliary contact with contacts type of 1NO+1NC instantaneous aux. The rated power in horsepower (HP) ranges from 30HP at 200-208Vac to 100HP at 575-600Vac for 3-phase, 50Hz/60Hz, UL/CSA conditions. The mechanical durability of the LC1D115BD is rated at 8 million operations at no load, and its electrical durability with load is rated at 950,000 operations. The rated voltage for phase-to-phase AC conditions is 1000 V.

Schneider Electric

6

PKGTAB

Schneider Electric PKGTAB, Load center accessory, QO/Homeline, insulator kit, for ground bars

Schneider Electric

3

MQDC1-506

Cordset: Single Ended A-Code M12; 5-pin Straight Female Connector; 2 m (6.56 ft) Black PVC Jacket; Nickel-Plated Brass Coupling Nut

Banner

184

RSF RKF 57/22

DeviceNet™ Receptacle, Panel Feed-through, , Male 7/8″ minifast Receptacle, Female 7/8″ minifast Receptacle, Design: 7/8 adapter, 5-pin feedthrough male/female, For use in CAN (DeviceNet, CANopen) applications, Ampacity: 9 A, Rated voltage: 600 V, Temperature range: -40 °C…+105 °C, Protection class: NEMA 1, 3, 4 and IEC IP67, "

Turck

2

SSM1A130BD

Schneider Electric SSM1A130BD is a solid state relay (SSR) within the SSM sub-range, designed to facilitate solid state/static relay functions. It operates with a control voltage (DC) range of 4-32 Vdc and can handle a rated current of 30 A. The relay is suitable for applications requiring a rated voltage (AC) from phase-to-neutral within the range of 24-280 V.

Schneider Electric

1

LC1D95M7

Schneider Electric LC1D95M7 is a magnetic contactor from the Deca sub-range, featuring screw connections and three poles (3P; 3NO). It has a rated current of 125A (AC-1) and 95A (440Vac; AC-3), with a mounting mode designed for DIN rail installation. The net width of the contactor is 85 mm, and it offers a degree of protection rated at IP20. The control voltage (AC) ranges from 176-242Vac (220Vac nom.; 50Hz; 0.8...1.1 x Uc) to 187-242Vac (220Vac nom.; 60Hz; 0.85...1.1 x Uc), with a rated operating voltage (Ue) of 1000 V. It includes 1 normally open (NO) auxiliary contact and 1 normally closed (NC) auxiliary contact, both of the instantaneous type (1NO+1NC). The rated impulse voltage (Uimp) is 8 kV. This contactor is capable of handling rated active power ranging from 25kW (220-230Vac; AC-3) to 55kW (500Vac; AC-3), with specific ratings for various voltages up to 1000Vac. It also supports rated power (HP) for motors from 7.5HP (115Vac; single-phase) to 60HP (575-600Vac; 3-phase), under UL/CSA standards. The mechanical durability of the LC1D95M7 is rated at 4,000,000 operations, and its electrical durability (with load) is rated at 1,200,000 operations. The rated voltage (AC) for phase-to-phase connections is 1000 V.

Schneider Electric

17

M9F43303

Schneider Electric M9F43303 is a Miniature Circuit Breaker (MCB) within the C60BP sub-range, designed with a 3-pole configuration. It has a rated current of 3A and features a rated insulation voltage (Ui) of 500V. This MCB operates with a rated voltage of 60Vdc and has a rated impulse voltage (Uimp) of 6kV. It offers a short circuit breaking rating of 14kA AIR at both 120Vac and 240Vac, and 10kA AIR at 480Y/277Vac and 60Vdc. The rated voltage for AC applications is 240V phase-to-neutral and 415V phase-to-phase. All three poles are protected, and it is equipped with a D tripping curve.

Schneider Electric

5

EX-F71

Panasonic EX-F71 is a general-purpose leak detection sensor designed for liquid level monitoring. It features a polypropylene housing and comes equipped with a SUS stainless steel mounting bracket for secure installation. This sensor offers 1 x digital output (NPN open-collector / 24Vdc / 50mA) for straightforward integration into various systems. It is pre-wired with a 2m 3-core PFA cabtyre cable, terminated with bare flying leads for easy connection.

Panasonic

9
