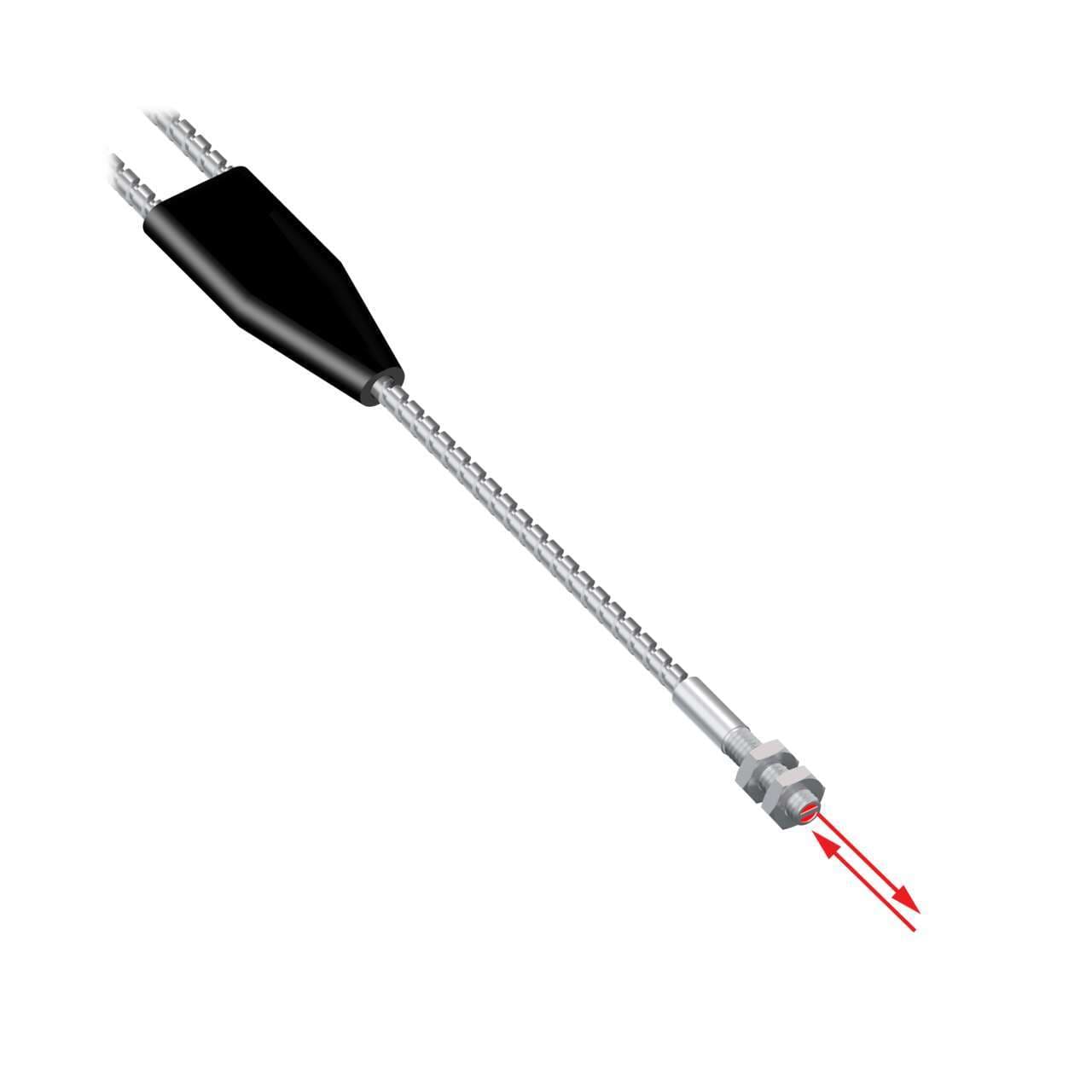

BMT16.6S-HT Banner Fiber Optic Sensors

BMT16.6S-HT on Powermatic Associates
Banner

Part#:BMT16.6S-HT

Alt. Part#:64397

Manufacturer:Banner

Category:Fiber Optic Sensors

Product Lifecycle:Active

Product description

Glass Fiber; Diffuse Mode 1.57 mm dia. Bundle, Optically Isolated E&R Bundles; Stainless Steel Sheathing; 2 m long; M4 Threaded Sensing Tip; Terminated for use in Plastic Fiber Sensors; Max. Operating Temp. at Threaded Tip 315 C

Product Details

  • Weight
    72.57472 g
  • Country Of Origin
    US
  • Max Distance: DF-G1 (mm)
    152
  • Max Distance: DF-G2 (mm)
    246
  • Max Distance: DF-G3 (mm)
    1181
  • Fiber Sensing End Size - Mounting Area
    M4
  • Measured Max Distance (mm)
    152
  • Tariff Fiber Meters (fbm)
    1618
  • Termination Type
    Plastic Fiber Sensors
  • Application: Vacuum Feed Through
    None
  • Application: Liquid Level
    No
  • Feature: Small Object Detection
    No
  • Feature: Extended Range
    No
  • Feature: Chemical Resistant
    No
  • Integrated Lens
    No
  • Max Temp ( °C)
    315
  • Termination
    Terminated
  • Core Diameter (mm)
    1.6
  • Minimum Bend Radius (mm)
    25
  • Flex Relief
    No
  • Retractile
    No
  • Fiber Length (m)
    2
  • Sensing End Segment 1
    Ferrule
  • Sensing End Segment 2
    Thread
  • Fiber Sensing End Size
    M4
  • Quantity Included
    1
  • Fiber Sensing End Tip
    Thread
  • Sensing Mode (General)
    Diffuse
  • Max Range: DF-G3 (mm)
    >1m - <=3m
  • Fiber Optic Type
    Glass
  • Sensing Mode (Detailed)
    Reflective
  • Beam Exit
    In-line
  • Sensing End Material (Specific)
    Stainless Steel
  • Fiber Sheathing Material (Jacket)
    Stainless Steel Monocoil
  • Housing Style
    Round
  • Main function
    Fiber sensor
  • Shape
    Cylindrical (threaded) end tip
  • Ambient air temperature for operation
    +315 °C
  • Sub-range name
    Glass fiber series
  • Length
    6.6ft / 2m
  • Equivalent to
    BMT16.6SHT
  • Primary brand
    Banner Engineering
  • Design
    diffuse mode Bifurcated fiber
  • Order code / Manufacturer SKU
    64397
  • Functions
    Fiber optic sensor
  • Diameter
    0.7mm (end) 1.6mm fiber core
  • Thread size
    M4
  • Product series / family name
    Fiber sensors
  • Material
    Stainless steel sensing end Glass fiber stainless flexible tubing (fiber sheath)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of BMT16.6S-HT on Powermatic Associates is $467.00. Order now.


About the product

Banner Engineering BMT16.6S-HT is a fiber sensor from the Glass fiber series, designed with a diffuse-reflective system. It features a flexible, bifurcated fiber with in-line sensing suitable for high-temperature environments. The sensing end is made of stainless steel, while the fiber core is encased in stainless flexible tubing with a glass fiber sheath. The sensor has a cylindrical (threaded) end tip, with a diameter of 0.7mm at the end and 1.6mm for the fiber core. It measures 6.6ft / 2m in length and is capable of operating in ambient air temperatures up to +315°C.
