BM.754SM2 Banner Fiber Optic Amplifiers

BM.754SM2 on Powermatic Associates
Banner

Part#:BM.754SM2

Manufacturer:Banner

Alt. Part#:20608

Product Lifecycle:Active

Get a quick Quote!

FIBER BM.754SM2

About the manufacturer: Banner is one of the manufacturers that offers Fiber Optic Amplifiers that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the BM.754SM2 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    117.93392 g
  • Country Of Origin
    US

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

BM.754SM2 Description

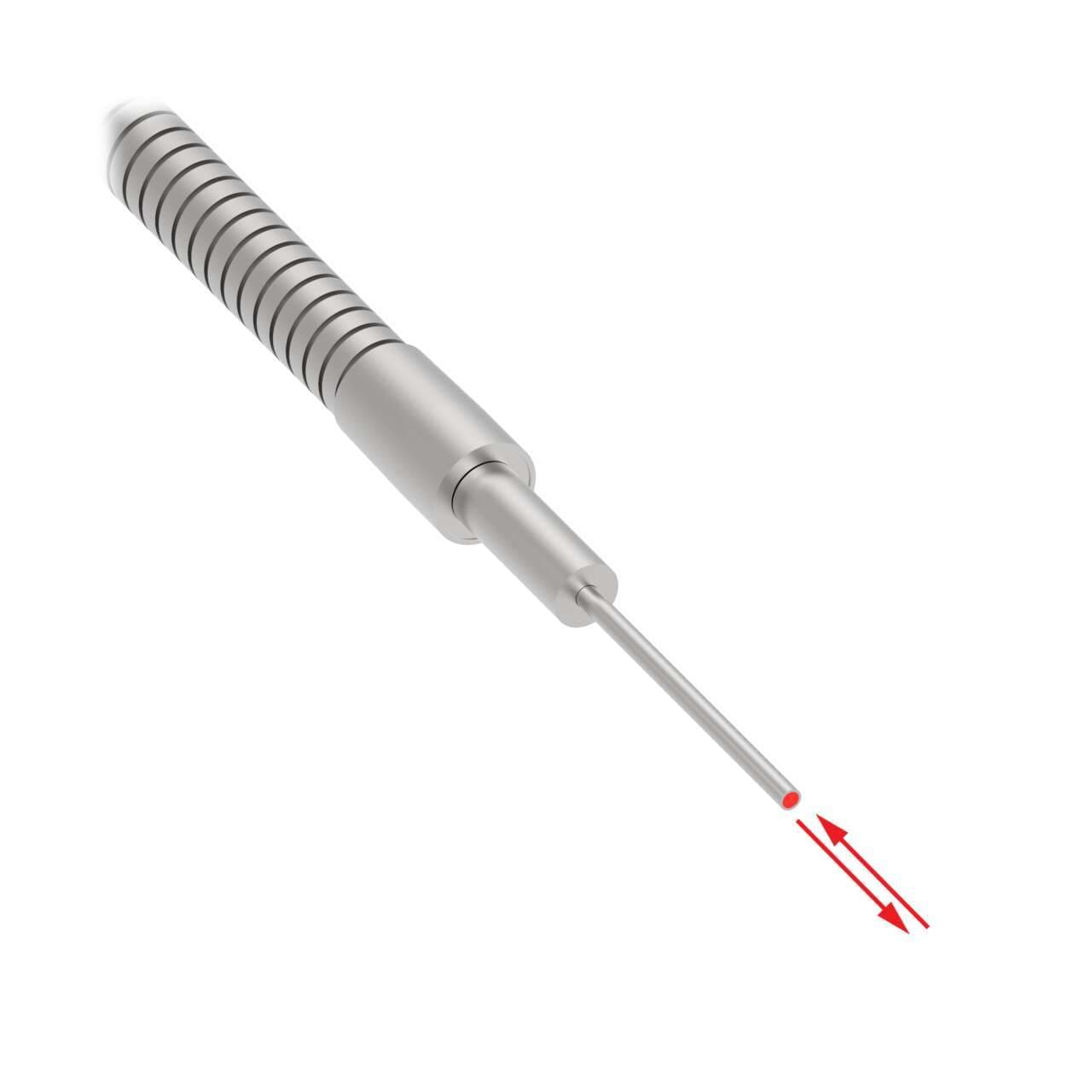

Banner Engineering BM.754SM2 is a fiber optic sensor from the Glass fiber series, designed with a diffuse-reflective system and bifurcated fiber in-line sensing. It features a stainless steel sensing end, glass fiber, and a stainless steel monocoil. The sensor has a 1.2mm fiber core diameter and comes with a cylindrical (smooth) end tip. It is 4ft / 1.2m in length and can operate in ambient air temperatures up to +249°C.

Manufacturer warranty

$198.00

Request a quote, and we will send availability within minutes.

Select Qty:

$198.00

$198.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
