Festo SOEG-RT-M5-NS-S-L is a diffuse scan opto-electronic/photo-electric sensor within the SOEG-RT series, featuring a high-alloy stainless steel housing for durability. It is designed to be Cu-free and P.T.F.E.-free, ensuring compatibility with various industrial environments. This sensor offers a cylindrical threaded/barrel shape with an M5 threaded body connection and a 3-pin M8 male connector for easy installation. It operates on a supply voltage of 10-30Vdc, with nominal values of 12Vdc and 24Vdc, and can be mounted using a lock nut. The sensor is capable of operating within an ambient air temperature range of 0°C to +55°C and offers a degree of protection rated at IP67, making it suitable for use in environments with particularly high-corrosion stress (CRC Class 4). It features 1 x digital output (NPN; 100mA) with a maximum output switching frequency of 250Hz and a sensing distance of 50mm. The light color used for sensing is Infrared (IR), and it includes protection functions such as pulsed protection and reverse polarity protection for all electrical connections. Its operating mode is bright-switching NO.
2 in stock
24 hours

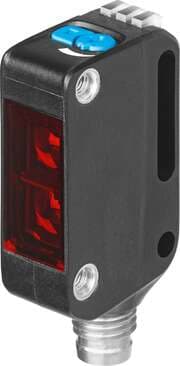

diffuse sensor SOOE-DS-R-PNLK-T Design: Block design, Conforms to standard: EN 60947-5-2, Authorisation: (* RCM Mark, * c UL us - Listed (OL)), CE mark (see declaration of conformity): (* to EU directive for EMC, * in accordance with EU RoHS directive), C
Quick Quote

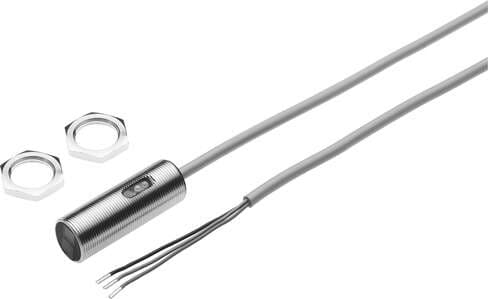

transmitter SOEG-S-M18-K-L Round design Design: Round, Conforms to standard: EN 60947-5-2, Authorisation: (* RCM Mark, * c UL us - Listed (OL)), CE mark (see declaration of conformity): to EU directive for EMC, Materials note: Free of copper and PTFE
Quick Quote
mounting SAMH-G3-Q for fork light barrier SOOF Design: for dovetail slot, Materials note: Free of copper and PTFE, Ambient temperature: -10 - 60 °C, Mounting type: with through hole, Max. tightening torque: 3 Nm
Quick Quote

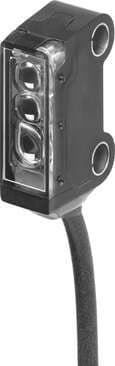

diffuse sensor SOOD-BS-R-PN-50 Design: Block design, Conforms to standard: EN 60947-5-2, Authorisation: (* RCM Mark, * c UL us - Recognized (OL)), CE mark (see declaration of conformity): (* to EU directive for EMC, * in accordance with EU RoHS directive)
Quick Quote

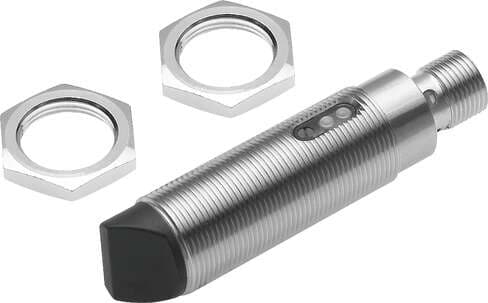

receiver SOEG-E-M18-NA-K-2L Round design Design: Round, Conforms to standard: EN 60947-5-2, Authorisation: (* RCM Mark, * c UL us - Listed (OL)), CE mark (see declaration of conformity): to EU directive for EMC, Materials note: Free of copper and PTFE
Quick Quote

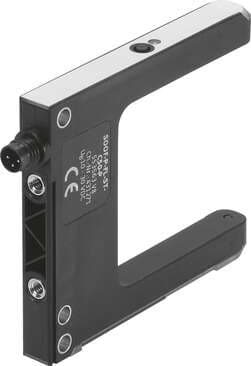

fork light barrier SOOF-P-FL-ST-C30-N Polymeric design. Authorisation: (* RCM Mark, * c UL us - Listed (OL)), CE mark (see declaration of conformity): to EU directive for EMC, Materials note: Conforms to RoHS, Measured variable: Position, Measuring princi
Quick Quote
transmitter SOEG-S-M18W-S-L Round design, with 90° angled beam Design: Round, Conforms to standard: EN 60947-5-2, Authorisation: (* RCM Mark, * c UL us - Listed (OL)), CE mark (see declaration of conformity): to EU directive for EMC, Materials note: Free
Quick Quote
fork light barrier SOOF-M-FL-SM-C50-N Stable metal housing. Authorisation: (* RCM Mark, * c UL us - Listed (OL)), CE mark (see declaration of conformity): to EU directive for EMC, Materials note: (* Free of copper and PTFE, * Contains PWIS substances, * C
Quick Quote

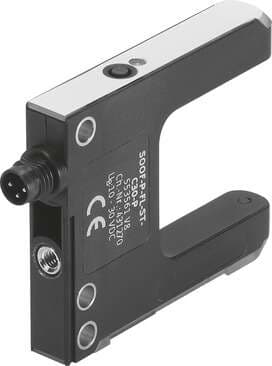

fork light barrier SOOF-P-FL-ST-C120-N Polymeric design. Authorisation: (* RCM Mark, * c UL us - Listed (OL)), CE mark (see declaration of conformity): to EU directive for EMC, Materials note: Conforms to RoHS, Measured variable: Position, Measuring princ
Quick Quote
| Item | Manufacturer | Price | Stock | Delivery | |
|---|---|---|---|---|---|
| SOEG-RT-M5-NS-S-L Festo SOEG-RT-M5-NS-S-L is a diffuse scan opto-electronic/photo-electric sensor within the SOEG-RT series, featuring a high-alloy stainless steel housing for durability. It is designed to be Cu-free and P.T.F.E.-free, ensuring compatibility with various industrial environments. This sensor offers a cylindrical threaded/barrel shape with an M5 threaded body connection and a 3-pin M8 male connector for easy installation. It operates on a supply voltage of 10-30Vdc, with nominal values of 12Vdc and 24Vdc, and can be mounted using a lock nut. The sensor is capable of operating within an ambient air temperature range of 0°C to +55°C and offers a degree of protection rated at IP67, making it suitable for use in environments with particularly high-corrosion stress (CRC Class 4). It features 1 x digital output (NPN; 100mA) with a maximum output switching frequency of 250Hz and a sensing distance of 50mm. The light color used for sensing is Infrared (IR), and it includes protection functions such as pulsed protection and reverse polarity protection for all electrical connections. Its operating mode is bright-switching NO. | Festo | $163.23 | 2 in stock | 24 hours |
| 8075663 diffuse sensor SOOE-DS-R-PNLK-T Design: Block design, Conforms to standard: EN 60947-5-2, Authorisation: (* RCM Mark, * c UL us - Listed (OL)), CE mark (see declaration of conformity): (* to EU directive for EMC, * in accordance with EU RoHS directive), C | Festo | Quick Quote | ||
| 537691 transmitter SOEG-S-M18-K-L Round design Design: Round, Conforms to standard: EN 60947-5-2, Authorisation: (* RCM Mark, * c UL us - Listed (OL)), CE mark (see declaration of conformity): to EU directive for EMC, Materials note: Free of copper and PTFE | Festo | Quick Quote | ||
| 553569 mounting SAMH-G3-Q for fork light barrier SOOF Design: for dovetail slot, Materials note: Free of copper and PTFE, Ambient temperature: -10 - 60 °C, Mounting type: with through hole, Max. tightening torque: 3 Nm | Festo | Quick Quote | ||
| 8075654 diffuse sensor SOOD-BS-R-PN-50 Design: Block design, Conforms to standard: EN 60947-5-2, Authorisation: (* RCM Mark, * c UL us - Recognized (OL)), CE mark (see declaration of conformity): (* to EU directive for EMC, * in accordance with EU RoHS directive) | Festo | Quick Quote | ||
| 537709 receiver SOEG-E-M18-NA-K-2L Round design Design: Round, Conforms to standard: EN 60947-5-2, Authorisation: (* RCM Mark, * c UL us - Listed (OL)), CE mark (see declaration of conformity): to EU directive for EMC, Materials note: Free of copper and PTFE | Festo | Quick Quote | ||
| 553562 fork light barrier SOOF-P-FL-ST-C30-N Polymeric design. Authorisation: (* RCM Mark, * c UL us - Listed (OL)), CE mark (see declaration of conformity): to EU directive for EMC, Materials note: Conforms to RoHS, Measured variable: Position, Measuring princi | Festo | Quick Quote | ||
| 537695 transmitter SOEG-S-M18W-S-L Round design, with 90° angled beam Design: Round, Conforms to standard: EN 60947-5-2, Authorisation: (* RCM Mark, * c UL us - Listed (OL)), CE mark (see declaration of conformity): to EU directive for EMC, Materials note: Free | Festo | Quick Quote | ||
| 553556 fork light barrier SOOF-M-FL-SM-C50-N Stable metal housing. Authorisation: (* RCM Mark, * c UL us - Listed (OL)), CE mark (see declaration of conformity): to EU directive for EMC, Materials note: (* Free of copper and PTFE, * Contains PWIS substances, * C | Festo | Quick Quote | ||
| 553568 fork light barrier SOOF-P-FL-ST-C120-N Polymeric design. Authorisation: (* RCM Mark, * c UL us - Listed (OL)), CE mark (see declaration of conformity): to EU directive for EMC, Materials note: Conforms to RoHS, Measured variable: Position, Measuring princ | Festo | Quick Quote | ||
