757-265/000-005 WAGO Cable Assemblies

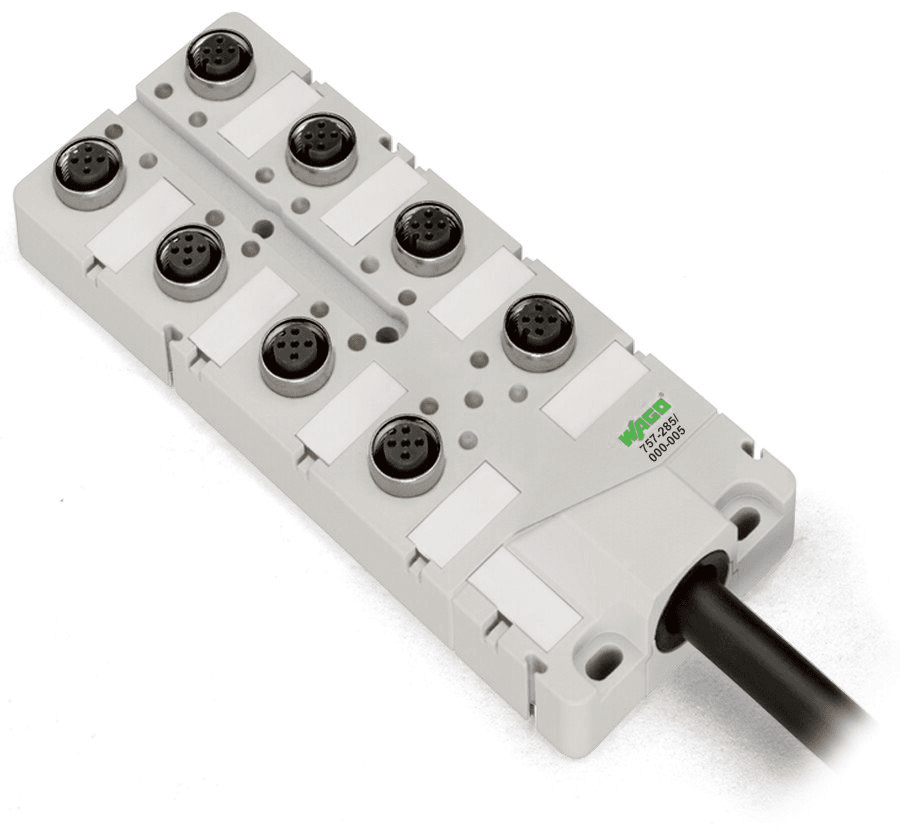

Wago 757-265/000-005 is a junction box designed for passive field connection of sensor and actuator devices. It operates on a supply voltage of 10-30Vdc, including nominal values of 12Vdc and 24Vdc, and does not utilize an AC supply voltage. This part features a 5m cable terminated with bare end flying leads and includes 6 x 5-pin M12 connectors. It is equipped with an LED indicator for operational visibility. The junction box is designed to operate within an ambient air temperature range of -25°C to +80°C and is constructed from polyamide (PA) 66, which is UL 94 V0 rated and halogen-free, ensuring durability and resistance to environmental factors. Its protection rating is IP68, indicating a high level of protection against dust and water ingress. The design dimensions are H26mm x W60mm x D123mm, and it accommodates a 5-pole (5P) connection with a screw-rated active power. The color of the junction box is RAL 7035 Gray, and it features a short circuit breaking rating for 6-ports, highlighting its capability to manage multiple connections efficiently.
