236-300 WAGO Industrial Automation Components

236-300 on Powermatic Associates
WAGO

Part#:236-300

Manufacturer:WAGO

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

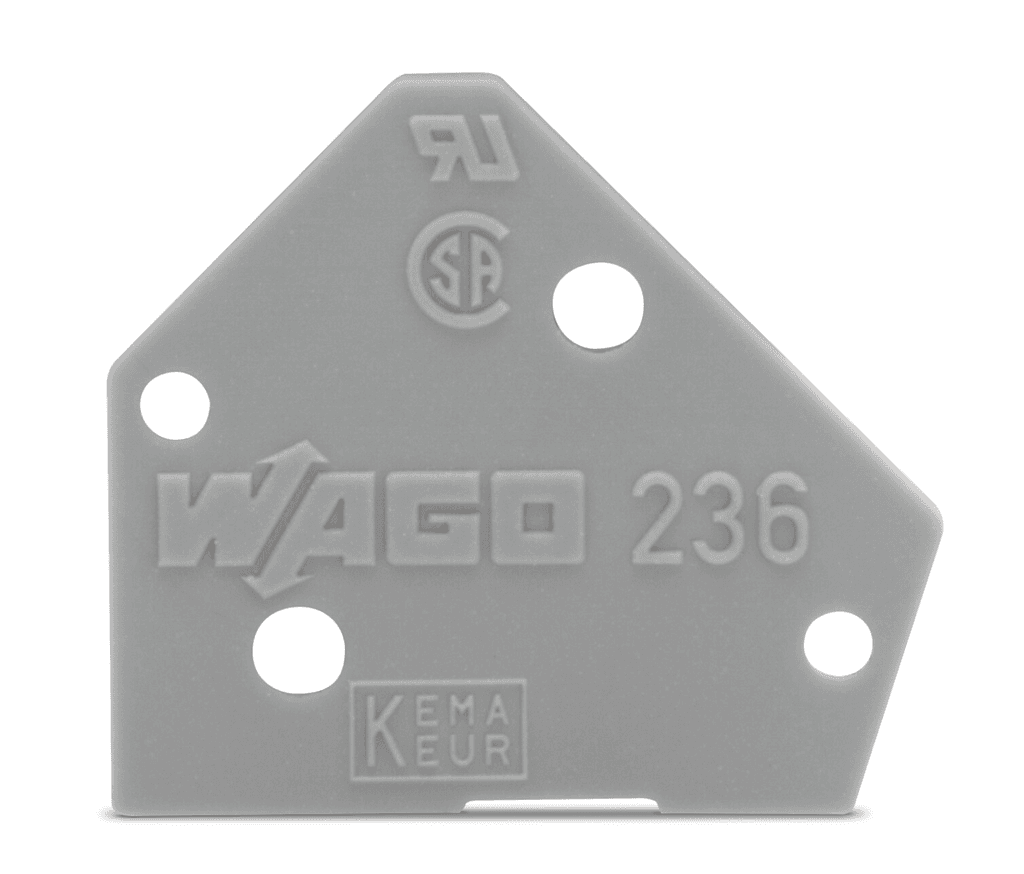

236-300 WAGO - End plate; 1 mm thick; snap-fit type; light gray

Product Details

  • Weight
    0.139000037 g
  • Country Of Origin
    Switzerland
  • HTS Code
    85389099990
  • Weight
    0.139 grams
  • Depth
    0.551 inches, 14 millimeters
  • Color
    Gray
  • Package Type
    Box
  • Mounting Type
    Snap-on Type
  • Insulation Material
    Polyamide
  • Height
    0.512 inches, 13 millimeters
  • Flammability Class
    V0
  • Width
    0.039 inches, 1 millimeter

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 236-300 on Powermatic Associates is $0.11. Order now.

About the product

WAGO 236-300 is a snap-on type mounting automation part with dimensions of 1mm in width, 13mm in height, and 14mm in depth. It is made from light gray Polyamide (PA66), belonging to material group I, and has a flammability class per UL94 of V0. The part has a fire load of 0.004MJ and weighs 0.1g. It falls under Product Group 4 (Printed Circuit Connectors) and is compliant with RoHS without exemptions. The part's eClass 10.0 and 9.0 classifications are 27-44-04-92, with ETIM 8.0 and 7.0 classifications of EC000886. It is packaged in boxes with a standard packing unit (SPU) of 2000 pieces per 100 pieces and has a GTIN of 4017332267601. The country of origin is CH, and it has a customs tariff number of 85389099990.

Similar products from: WAGO Industrial Automation Components

2002-1291 on Powermatic Associates

2002-1291

WAGO

2002-1291 WAGO - TOPJOB®S end/intermediate plate; for 2002-12xx series terminal blocks; 0.8 mm wide; gray

220 in stock
216-222 on Powermatic Associates

216-222

WAGO

216-222 WAGO - Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated; gray

94 in stock
231-303/107-000 on Powermatic Associates

231-303/107-000

WAGO

231-303/107-000 WAGO - Female plug; 3-pole; screw interlocking flange; 12 AWG max; pin spacing 5.08 mm; 1 conductor per pole; orange

15 in stock
2204-1407 on Powermatic Associates

2204-1407

WAGO

2204-1407 WAGO - TOPJOB®S ground terminal block with Push-buttons; rail mount; 4-conductor; 6.2 mm wide; green-yellow

114 in stock
2202-2701 on Powermatic Associates

2202-2701

WAGO

2202-2701 WAGO - TOPJOB®S double-deck terminal block with push-buttons; through/through (L/L); rail mount; without marker carrier; 2-conductor; 5.2 mm wide; gray;

132 in stock
281-366 on Powermatic Associates

281-366

WAGO

281-366 WAGO - End and intermediate plate; 1 mm thick; orange

20 in stock

Manufacturer warranty

236-300 WAGO

$0.11

Your price can be lower.
Log in or Create account to check your discount

Select Qty:

$0.11

$0.11 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare 236-300 with other Industrial Automation Components products

Weight

Country Of Origin

HTS Code

Depth

Color

Package Type

Mounting Type

Insulation Material

Height

Flammability Class

Selected product

236-300
Backordered
236-300
WAGO

236-300 WAGO - End plate; 1 mm thick; snap-fit type; light gray

Weight0.139000037 g

Country Of OriginSwitzerland

HTS Code85389099990

Depth0.551 inches, 14 millimeters

ColorGray

Package TypeBox

Mounting TypeSnap-on Type

Insulation MaterialPolyamide

Height0.512 inches, 13 millimeters

Flammability ClassV0

2006-1291
11 in stock
2006-1291
WAGO

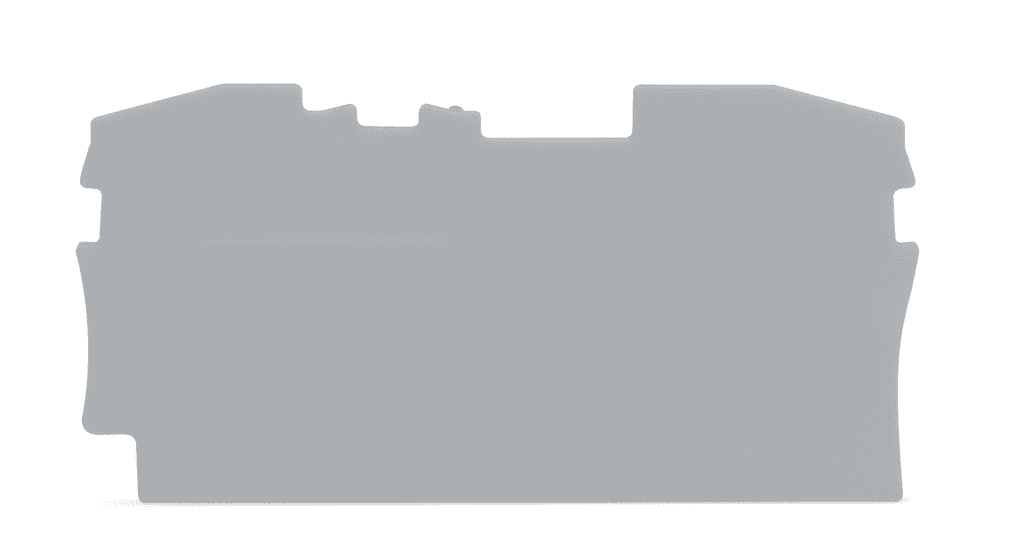

2006-1291 WAGO - End and intermediate plate; 1 mm thick
