WK 4.5T-10 Turck Cordsets

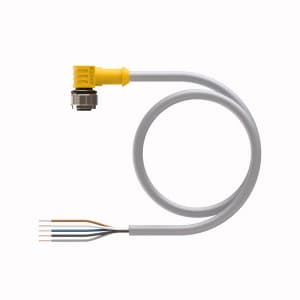

Turck WK 4.5T-10 WK 4.5T-10 Actuator and Sensor Cordset, Connection Cable
Turck

Part#:WK 4.5T-10

Manufacturer:Turck

Alt. Part#:U2436-50

Product Lifecycle:Active

In-stock parts: 1

Sep 28, 2024

WK 4.5T-10 Actuator and Sensor Cordset, Connection Cable

About the manufacturer: Turck is one of the manufacturers that offers Cordsets that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the WK 4.5T-10 Turck price in the box on the right side or send a quick quote.

Product Details

  • Approvals
    UL 2238, CSA C22.2 No. 182.3, CE, RoHS
  • Cable length (L)
    10.0  m
  • Cable Jacket Color
    Gray
  • Connector A - Number of Pins
    5
  • Connector A
    M12 × 1
  • Voltage
    250 V
  • Number of Conductors
    5
  • Cable Jacket Material
    PVC
  • Application
    Actuator and Sensor
  • Connector A - Style
    Right angle, Female
  • Material coupling/housing A
    Brass
  • Current
    4 A

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

WK 4.5T-10 Description

Turck WK 4.5T-10 is a single-ended mating cable/cordset designed for automation applications. It features a right-angled 5-pin M12 eurofast female connector with a T-barb fitting and bare end flying leads. The cable is 10 meters in length and has a cross-section of 5 x #22AWG. It is capable of handling a rated current of 4A and a rated voltage of 250Vac. The cable's sheath is made from PVC with a nickel-plated brass coupling nut, ensuring a degree of protection rated at IP68, NEMA 1, NEMA 3, NEMA 4, and NEMA 6P. The outer diameter of the cable sheath is 5.7mm. The color of the sheath is gray, with BN/WH/BU/BK/GY colored wires inside, indicating a 5-wire configuration. This part falls under the M12 eurofast to bare leads sub-range.

Related documents WK 4.5T-10 Specs

WK 4.5T-10 edb_U2436-50_eng_us.pdf
