RU20U-Q12S-UP8X-V1141 Turck Ultrasonic Sensors
Part#:RU20U-Q12S-UP8X-V1141
Manufacturer:Turck
Alt. Part#:100005604
Product Lifecycle:Active
Get a quick Quote!
RU20U-Q12S-UP8X-V1141 Ultrasonic Sensor, Diffuse Mode Sensor
About the manufacturer: Turck is one of the manufacturers that offers Ultrasonic Sensors that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.
Check out the RU20U-Q12S-UP8X-V1141 Turck price in the box on the right side or send a quick quote.
Product Details
- Weight 33 g
- Protection class IP67
- Ambient temperature -10…+70 °C
- Housing surface Anodized
- Special features Compact
- Electrical connection Connector, M8 × 1
- Housing material Metal
- Housing quality AL
- Function Proximity
- Switching element function NO/NC
- Communication protocol IO-Link
- Output function PNP
- Operating voltage 18…30 VDC
- Range 20…200 mm
- Design Rectangular
- Radiation direction side

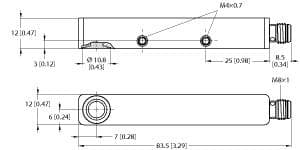

- Construction size 82 x 12 x 12 mm, Q12
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
RU20U-Q12S-UP8X-V1141 Description
Turck RU20U-Q12S-UP8X-V1141 is an ultrasonic sensor from the RU20U series, featuring a 9° sonic cone diffuse mode for side sensing. This sensor is equipped with ultrasonic sensor TEACH-by-wire functionality and is constructed with an anodized aluminium housing and a sensing face made of PET (Polyethylene terephthalate), PU (Polyurethane), and Epoxy. It comes pre-equipped with a 4-pin M8 Picofast male metal connector for connectivity. The sensor operates on a supply voltage of 15-30Vdc, with 24Vdc nominal, and can function within an ambient air temperature range of -25°C to +70°C. It is designed with an IP67 degree of protection, ensuring its durability in various environmental conditions. The sensor's shape is a rectangular body measuring H12mm x W12mm x L82mm. It supports the IO-Link communication protocol and has 1 x digital output (10.8-30Vdc; PNP) for connectivity. The sensing distance ranges from 25-200mm, with a current consumption of 40mA at no-load and a maximum switching frequency of 20Hz. It includes protection functions against short-circuit (pulsed) and reverse polarity. The operating mode can be programmed to be either NO (Normally Open) or NC (Normally Closed), and it boasts a measurement accuracy (resolution) of 1mm.
Related documents RU20U-Q12S-UP8X-V1141 Specs
