RK 4.4T-5-RS 4.4T Turck Cordsets

Name: RK 4.4T-5-RS 4.4T
Brand: Turck
Price: 63.8 USD
Availability: InStock

Turck RK 4.4T-5-RS 4.4T RK 4.4T-5-RS 4.4T Actuator and Sensor Cordset, Extension Cable

Part#:RK 4.4T-5-RS 4.4T

Manufacturer:Turck

Alt. Part#:U2167-3

Product Lifecycle:Active

In-stock parts: 2

Sep 28, 2024

RK 4.4T-5-RS 4.4T Actuator and Sensor Cordset, Extension Cable

About the manufacturer: Turck is one of the manufacturers that offers Cordsets that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the RK 4.4T-5-RS 4.4T Turck price in the box on the right side or send a quick quote.

Product Details

Weight
233 g
Cable Jacket Color
Gray
Approvals
UL 2238, CSA C22.2 No. 182.3, CE, RoHS
Cable Jacket Material
PVC
Cable length (L)
5.0 m
Connector B
M12 × 1
Voltage
250 V
Current
4 A
Connector A - Number of Pins
4
Connector B - Style
Straight, Male
Connector A - Style
Straight, Female
Connector A
M12 × 1
Material coupling/housing B
Brass
Material coupling/housing A
Brass
Number of Conductors
4
Application
Actuator and Sensor

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

RK 4.4T-5-RS 4.4T Description

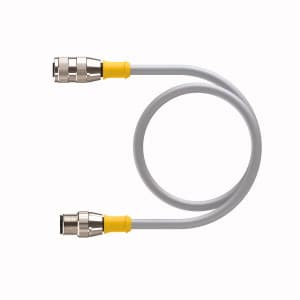

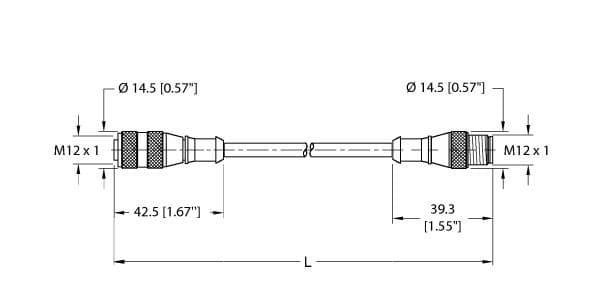

Turck RK 4.4T-5-RS 4.4T is a cable designed for automation applications, featuring a M12 eurofast male straight to M12 eurofast female straight configuration. This double-ended cable or cordset comes with a gray sheath made from TPE and has nickel-plated brass coupling nuts. It measures 5 meters (16 feet) in length and includes a 4-pin M12 eurofast female connector and a 4-pin M12 eurofast male connector, both with T-barb fittings. The cable supports a rated current of 4A and a rated voltage of 250Vac. The outer diameter of the cable sheath is 5.3mm, and it has a cross-section of 4 x #22AWG. It is designed to offer protection levels of IP68, NEMA 1, NEMA 3, NEMA 4, and NEMA 6P.

$63.80

Stock:

Select Qty:

$63.80

$63.80 each

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
