RI360P1-QR20-LU4X2-H1141 Turck Encoders
Part#:RI360P1-QR20-LU4X2-H1141
Manufacturer:Turck
Alt. Part#:100000201
Product Lifecycle:Active
Get a quick Quote!

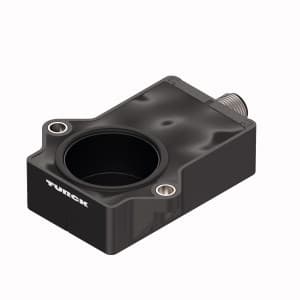

RI360P1-QR20-LU4X2-H1141 Miniature Encoder, With Analog Output, Premium Line
About the manufacturer: Turck is one of the manufacturers that offers Encoders that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.
Check out the RI360P1-QR20-LU4X2-H1141 Turck price in the box on the right side or send a quick quote.
Product Details
- Weight 100 g
- Protection class IP68/IP69K
- Housing material Plastic, Ultem
- Electrical connection Connector, M12 × 1
- Ambient temperature -40…+85 °C
- Operating voltage 8…30 VDC
- Voltage output 0.5…4.5 V
- Output function Analog output
- Shaft diameter D [mm] 6 mm6.35 mm
- Output type Absolute singleturn
- Measuring range 0…360°
- Shaft Type Blind hole shaft
- Flange type Flange without mounting element

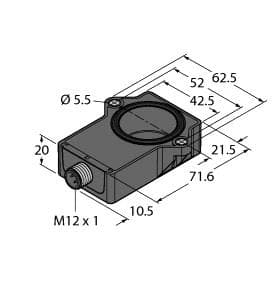

- Construction size 71.6 x 62.6 x 20 mm
- Technology Contactless
- Encoder line Premium-Line
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
RI360P1-QR20-LU4X2-H1141 Description
Turck RI360P1-QR20-LU4X2-H1141 is a contactless rotary inductive angle sensor designed for precise angular position detection within a range of 0° to +360°. It operates within an ambient air temperature range of -25 to +85°C and is housed in a plastic Ultem casing, ensuring durability with dimensions of H63mm x W72mm x D20mm. This sensor is part of the Q-track QR20 series and features a blind hole shaft design that is washdown-resistant, making it suitable for harsh environments with a degree of protection rated at IP68 and IP69K. It is equipped with a 4-pin M12 Eurofast QD male connector for easy installation and has a supply voltage range of 8Vdc to 30Vdc, with a nominal range of 12Vdc to 24Vdc. The sensor's shape is rectangular, and it includes a 6mm bore size. For signal processing, it offers a single analog output ranging from 0.5Vdc to 4.5Vdc and boasts a high resolution of ≤0.09° or 12-bit, complemented by a fast 800Hz sampling rate. The RI360P1-QR20-LU4X2-H1141 ensures secure operation with built-in short-circuit and reverse polarity protection functions. It also features a green LED for multifunctional visual position indication and another green LED to signify power ON. The sensor's current consumption is 100mA, providing efficient and accurate measurement capabilities.
