RI120P2-QR20-LU4X2-0.15-DT04-3P Turck Encoders
Part#:RI120P2-QR20-LU4X2-0.15-DT04-3P
Manufacturer:Turck
Alt. Part#:100001817
Product Lifecycle:Active
Get a quick Quote!
RI120P2-QR20-LU4X2-0.15-DT04-3P Miniature Encoder, With Analog Output, Premium Line
About the manufacturer: Turck is one of the manufacturers that offers Encoders that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.
Check out the RI120P2-QR20-LU4X2-0.15-DT04-3P Turck price in the box on the right side or send a quick quote.
Product Details
- Weight 1000 g
- HTS Code 8536507000
- Protection class IP68/IP69K
- Cable length (L) 0.220 m
- Housing material Plastic, Ultem
- Ambient temperature -40…+85 °C
- Electrical connection Cable with connector, Deutsch DT04-3P
- Voltage output 0.5…4.5 V
- Output function Analog output
- Measuring range -60…60°
- Flange type Flange without mounting element
- Technology Contactless
- Output type Absolute singleturn
- Operating voltage 8…30 VDC
- Encoder line Premium-Line
- Shaft diameter D [mm] 6 mm6.35 mm
- Shaft Type Blind hole shaft

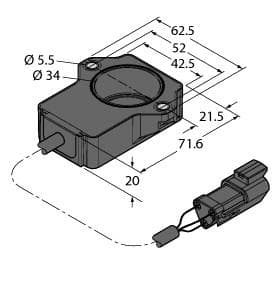

- Construction size 71.6 x 62.6 x 20 mm
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
RI120P2-QR20-LU4X2-0.15-DT04-3P Description
Turck RI120P2-QR20-LU4X2-0.15-DT04-3P is a contactless rotary inductive angle sensor designed for precise angular position detection within a range of 0° to +120°. It operates at an ambient air temperature range of -25 to +85°C and is housed in a washdown-resistant, blind hole shaft design made from Plastic Ultem, ensuring durability in harsh environments. This sensor is part of the Q-track QR20 series and features a compact rectangular shape with dimensions of H63mm x W72mm x D20mm. It offers a high degree of protection with IP68 and IP69K ratings, suitable for applications requiring high-pressure washdowns. The sensor is powered by a supply voltage ranging from 8Vdc to 30Vdc, with a nominal range of 12Vdc to 24Vdc, and it consumes up to 100mA of current. It provides a single analog output (0.5Vdc-4.5Vdc) with a resolution of ≤0.09° or 12-bit resolution, ensuring precise measurement. The sensor features a 1/4" bore size and is pre-wired with a 15cm pigtail terminated with a Deutsch DT04 connector for easy installation. It includes protection functions against short-circuit and reverse polarity, enhancing its operational reliability. The sensor's visual position indicator includes a green LED for multifunctional purposes and a green LED to indicate power ON. With a frequency of 800Hz sampling rate, it offers fast and accurate angular position detection.
Related documents RI120P2-QR20-LU4X2-0.15-DT04-3P Specs
