RI-43HA6S8-2B5000-H1181 Turck Encoders

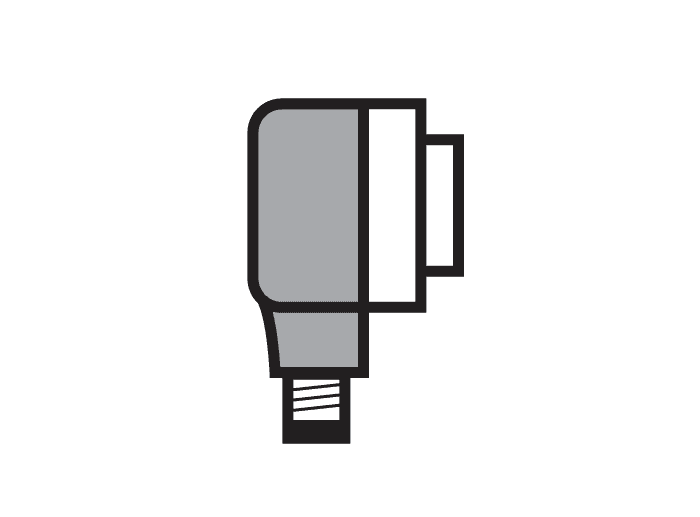

Turck RI-43HA6S8-2B5000-H1181 RI-43HA6S8-2B5000-H1181 Incremental Hollow Shaft Encoder, Industrial Line
Turck

Part#:RI-43HA6S8-2B5000-H1181

Manufacturer:Turck

Alt. Part#:1545687

Product Lifecycle:Active

Get a quick Quote!

RI-43HA6S8-2B5000-H1181 Incremental Hollow Shaft Encoder, Industrial Line

About the manufacturer: Turck is one of the manufacturers that offers Encoders that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the RI-43HA6S8-2B5000-H1181 Turck price in the box on the right side or send a quick quote.

Product Details

  • Ambient temperature
    -40…+80 °C
  • Housing material
    Die-cast zinc
  • Protection class shaft
    IP65
  • Electrical connection
    Connector, M12 × 1
  • Encoder line
    Industrial-Line
  • Protection class
    IP65
  • Output function
    Push-Pull/HTL, with inverted signals
  • Operating voltage
    10…30 VDC
  • Flange type
    Flange with mounting element
  • Flange diameter
    Ø  100  mm
  • Shaft diameter D [mm]
    25.4  mm
  • Output type
    Incremental
  • Resolution, incremental
    5000  ppr
  • Technology
    Optical
  • Shaft Type
    Hollow shaft

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

RI-43HA6S8-2B5000-H1181 Description

Turck RI-43HA6S8-2B5000-H1181 is an incremental rotary encoder designed for flange mounting with a long tether arm. It operates within an ambient air temperature range of -40 to +80°C and features a large-bore through hollow shaft flange with long tether arm optical sensing. This encoder is pre-equipped with a radial 8-pin M12 Eurofast QD male connector, falling under the Type RI-43 series. It has dimensions of H140mm x W135mm x D174mm with a 100mm casing diameter and offers a degree of protection rated at IP65. The supply voltage requirement is 10Vdc-30Vdc, with a nominal range of 12Vdc-24Vdc, and it can handle a maximum pulse frequency of 300kHz, equivalent to 3600rpm. Constructed from die-cast metal housing, with a stainless steel shaft and an aluminium flange, it features a 1" hollow shaft bore. The encoder provides 1 x digital output (push-pull; 10Vdc-30Vdc), includes protection functions against short-circuit and reverse polarity, and can achieve a rotational speed up to 6000rpm (mechanical limit). Its moment of inertia is less than 220x10^-6kg.m^2, with a resolution of 5000ppr (pulses/revolution), and a current consumption of 55mA with no load.
