RI-43H24S8-2F2048-H1181/N33 Turck Encoders

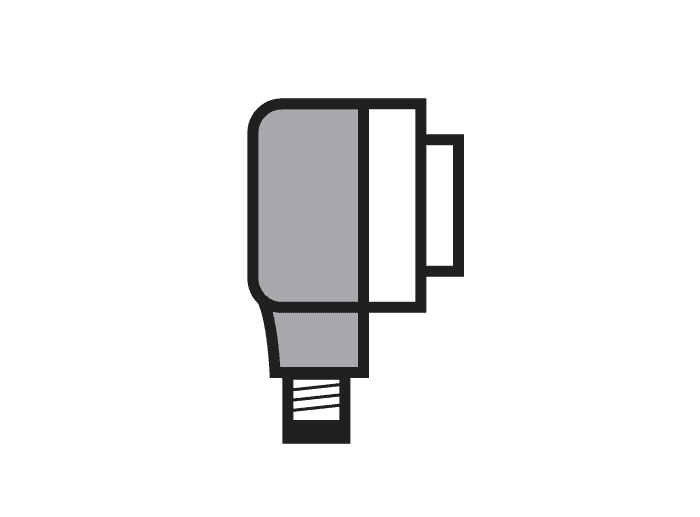

Turck RI-43H24S8-2F2048-H1181/N33 RI-43H24S8-2F2048-H1181/N33 Incremental Hollow Shaft Encoder, Industrial Line
Turck

Part#:RI-43H24S8-2F2048-H1181/N33

Manufacturer:Turck

Alt. Part#:1545703

Product Lifecycle:Active

Get a quick Quote!

RI-43H24S8-2F2048-H1181/N33 Incremental Hollow Shaft Encoder, Industrial Line

About the manufacturer: Turck is one of the manufacturers that offers Encoders that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the RI-43H24S8-2F2048-H1181/N33 Turck price in the box on the right side or send a quick quote.

Product Details

  • Ambient temperature
    -40…+80 °C
  • Shaft diameter D [mm]
    24  mm
  • Protection class shaft
    IP65
  • Protection class
    IP65
  • Housing material
    Die-cast zinc
  • Electrical connection
    Connector, M12 × 1
  • Output function
    Push-Pull 7272, with inverted signals
  • Shaft Type
    Hollow shaft
  • Encoder line
    Industrial-Line
  • Flange type
    Flange with mounting element
  • Flange diameter
    Ø  100  mm
  • Resolution, incremental
    2048  ppr
  • Operating voltage
    5…30 VDC
  • Technology
    Optical
  • Output type
    Incremental

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

RI-43H24S8-2F2048-H1181/N33 Description

Turck RI-43H24S8-2F2048-H1181/N33 is an incremental rotary encoder designed for flange mounting with a long tether arm. It operates within an ambient air temperature range of -40 to +80°C and features a large-bore through hollow shaft flange with optical sensing and a special waveform. This encoder is pre-equipped with a radial 8-pin M12 Eurofast QD male connector and belongs to the Type RI-43 series. It has dimensions of H140mm x W135mm x D174mm with a 100mm casing diameter and offers a degree of protection of IP65. The supply voltage ranges from 5Vdc to 30Vdc, supporting 6Vdc, 12Vdc, and 24Vdc, with a frequency of 300kHz pulse frequency. Constructed from die-cast metal housing, stainless steel shaft, and aluminium flange, it features a 24mm hollow shaft bore. The encoder provides 1 x digital output (push-pull with inverting signal; 5Vdc-30Vdc), includes short-circuit protection functions, and can handle a rotational speed of up to 6000rpm. Its moment of inertia is less than 220x10^-6kg.m^2, with a resolution of 2048ppr (pulses/revolution), and a current consumption of 50mA with no load.
