PKG 3Z-0.5-PSG 3M Turck Cordsets

PKG 3Z-0.5-PSG 3M on Powermatic Associates
Turck

Part#:PKG 3Z-0.5-PSG 3M

Manufacturer:Turck

Alt. Part#:U0875-73

Product Lifecycle:Active

Get a quick Quote!

PKG 3Z-0.5-PSG 3M Actuator and Sensor Cordset, Extension Cable

About the manufacturer: Turck is one of the manufacturers that offers Cordsets that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the PKG 3Z-0.5-PSG 3M Turck price in the box on the right side or send a quick quote.

Product Details

  • RoHS
    Yes
  • Country Of Origin
    MEX
  • HTS Code
    8544429090
  • Voltage
    125 volts
  • Length
    0.50 meters
  • Cable length (L)
    0.50  m
  • Cable Jacket Material
    PVC
  • Approvals
    UL Listed, CSA, CE, RoHS
  • Current
    4 amperes
  • Connector A
    Ø 8 mm
  • Cable Jacket Color
    Yellow
  • Connector A - Style
    Straight, Female
  • Connector B - Style
    Straight, Male
  • Material coupling/housing B
    Brass
  • Application
    Actuator and Sensor
  • Connector A - Number of Pins
    3
  • Connector B
    M8 × 1
  • Number of Conductors
    3

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

PKG 3Z-0.5-PSG 3M Description

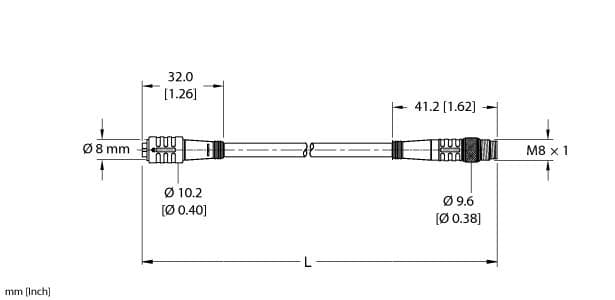

Actuator and Sensor Cordset, Extension Cable, Cable length (L) 0.5 m, M8, Female, Straight, 3-pin, Snap-on Connector with Sleeve Lock, M8, Male, Straight, 3-pin, Threaded Connector, General Purpose Cable, Yellow PVC jacket, 3X24 AWG, -40 Cold Bend Rating, Flame Ratings: UL1061, CSA FT1, Cable length: 0.5 m

Related documents PKG 3Z-0.5-PSG 3M Specs

PKG 3Z-0.5-PSG 3M edb_U0875-73_eng_us.pdf
