PK010R-N14AL-2UP8X-V1141 Turck Pressure Sensors
Part#:PK010R-N14AL-2UP8X-V1141
Manufacturer:Turck
Alt. Part#:6833012
Product Lifecycle:Active
Get a quick Quote!
PK010R-N14AL-2UP8X-V1141 Pressure Sensor, IO-Link with 2 PNP Transistor Switching Outputs
About the manufacturer: Turck is one of the manufacturers that offers Pressure Sensors that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.
Check out the PK010R-N14AL-2UP8X-V1141 Turck price in the box on the right side or send a quick quote.
Product Details
- Weight 75 g
- Process connection 1/8” NPT male thread
- Pressure transducer material Silicon
- Protection class IP65
- Ambient temperature -10…+50 °C
- Electrical connection Connector, M8 × 1
- Medium temperature 0…+50 °C
- Housing material Aluminium, Al/PVC
- Design With display
- Electrical output 2 × switching output
- Operating voltage 10.8…30 VDC
- Pressure type Relative pressure
- Relative pressure bar 0…10 bar rel.
- Relative pressure psi 0…145.04 psi rel.
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
PK010R-N14AL-2UP8X-V1141 Description

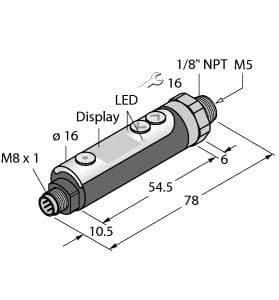

Turck PK010R-N14AL-2UP8X-V1141 is a sensor designed for pressure measurement and switching, belonging to the PK series. It features a pico body style and is equipped with a 4-pin M8 Picofast male metal connector and a 1/8" NPT threaded male process port for connection. The sensor operates within an ambient air temperature range of -10°C to +50°C and can measure fluid medium temperatures from 0°C to 50°C. It has a cylindrical body made of aluminium and ABS housing, with a stainless steel 1.4305 / 303 pressure connection. This sensor can measure pressure from -1 to 0 bar (-14.5 to 0 psig) and is powered by a supply voltage of 10.8-30Vdc (12Vdc / 24Vdc nom.). It offers two digital outputs (10.8-30Vdc; PNP) and can operate in either NO (Normally Open) or NC (Normally Closed) modes, which are programmable. The sensor is protected against short-circuits with pulsed protection, has a response time of 2.5ms / 0.0025 s, and consumes 35mA of current. It is designed with a degree of protection of IP65, ensuring its operation in various environmental conditions.
Related documents PK010R-N14AL-2UP8X-V1141 Specs
